Introduction
Cooler Master adds M850 and M1000 to the Silent Pro series, giving extreme overclockers and/or ultra high-end systems all the power they need. With up to 80A on a single 12V rail, these power supplies deliver where it counts and won’t have any problems powering even the most demanding multi-graphic card systems. These units feature flat modular cables for improved airflow and cable management. It also comes with shock absorbtion silicon pads to remove possible vibrations.
Features

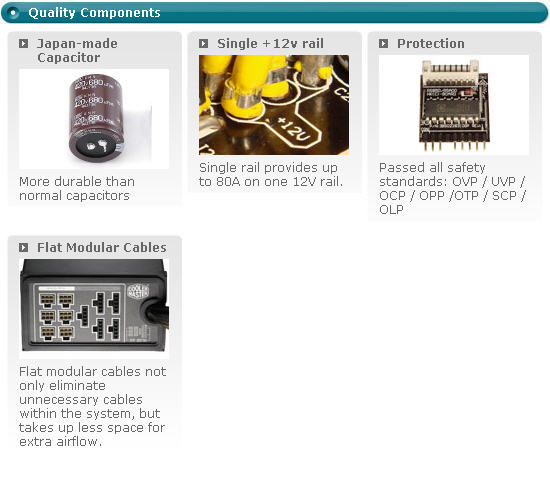

Copper plus aluminum heatsink for efficient heat dissipation
Japanese-made capacitors to enhance PSU outputs stability
Compliance with the newest Intel standard ATX 12V V 2.3 and SSI standard EPS 12V V2.92

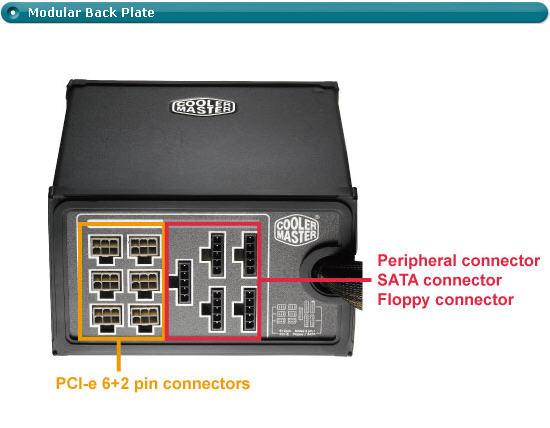

Flat modularized cables to eliminate the clutter and improve airflow inside the chassis

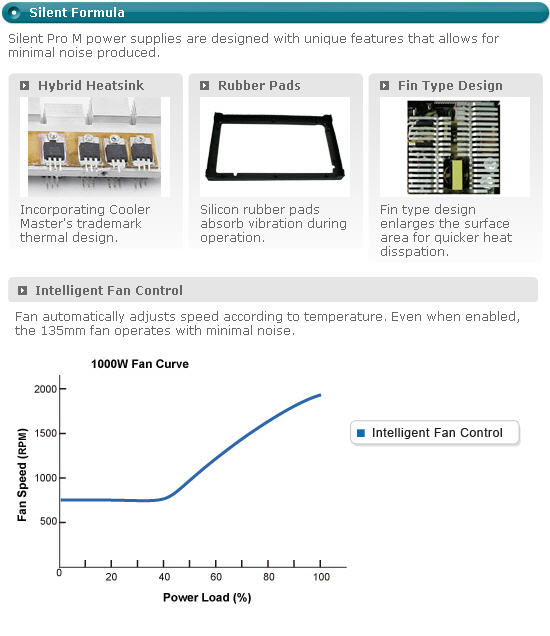

Ultra-silent operation with intelligent 135mm fan speed control
Unique silicon pad eliminate the vibration
Eco-design for energy and money saving by Active PFC.(>0.99) / high efficiency (>85%)
Single +12V rail for up to 80A for high demanding SLI

Specifications
| Model |
RS-A00-AMBA-J3 |
|
| Type |
Intel ATX12V V2.3 / SSI EPS 12V V2.92 |
|
| Dimension (W / H / D) |
150(W) x 86(H) x 165(L) (mm) |
|
| Input Voltage |
90~264V (Auto Range) |
|
| Input Current |
14A@115Vac, 8A@230Vac |
|
| Input Frequency Range |
47~63Hz |
|
| PFC |
Active PFC >0.9 |
|
| Power Good Signal |
100~500ms |
|
| Hold Up Time |
>17ms |
|

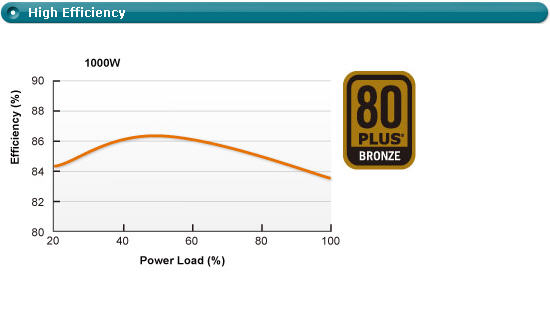

| Efficiency |
85% Typically |
|
| MTBF |
>100,000hrs |
|
| Protection |
OVP/ UVP/OCP/OPP/OTP /SCP |
|

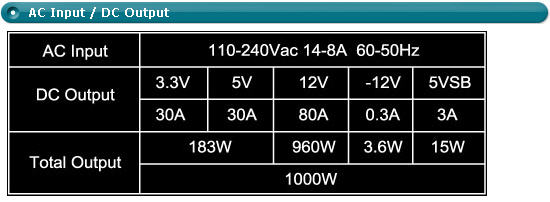

| Output Capacity |
1000W |
|
| Max. Output Capacity |
1200W |
|
| Operation Temperature |
0~40°C (Nominal Input Voltage) |
|
| Regulatory |
TUV / CE / GOST / C-tick / UL / FCC / CCC / BSMI |
|
| Fan |
135mm ultra silent fan |
|
| Certifications |
SLI / 80 Plus Bronze |
|

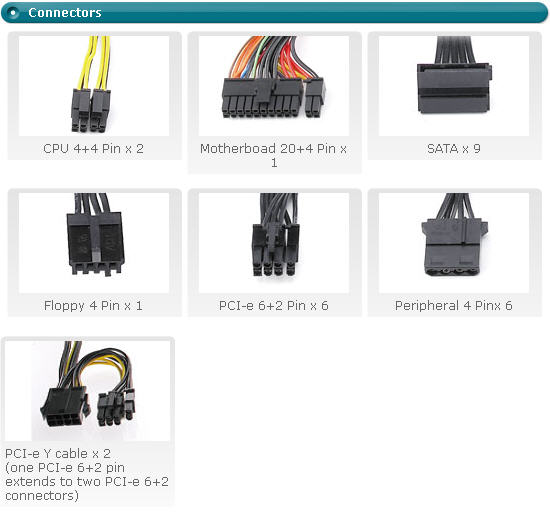

| Connector |
M/B 20+4 Pin Connector x 1
CPU 4+4 Pin x 2
PCI-E 6+2 Pin x 6
4 Pin Peripheral x 6
SATA x 9
4 Pin Floppy x 1
PCI-e Y cable x 2
(One PCI-e 6+2 Pin extends to two PCI-e 6+2 connectors | |
