DC Fan Product |
| Model Type : EC-5010xxxx Dimension : 50 x 50 x 10 mm |
 |
Voltage |
5V |
12V |
24V |
| |
V |
|
|
Fan Speed |
LL |
L |
M |
H |
HH |
SH |
|
3500 |
4000 |
4500 |
5000 |
5500 |
6000 |
|
Certificate |
UL |
CE |
TUV |
|
V |
V |
V |
|
Bearing Type |
Sleeve |
1Ball |
2Ball |
EL |
|
V |
V |
V |
| | |
| |

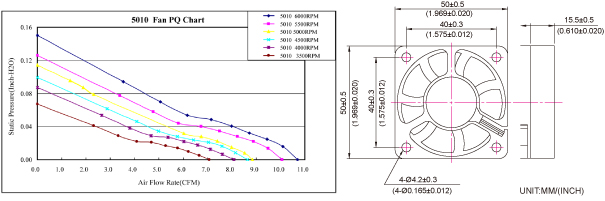

P&Q Curve / Dimensions Drawing |
 |
Model Number System |
| |
Specifications |
 |
Please read cataloge firstly ! |
|
Model |
Voltage
VDC |
Current
AMP |
Input
WATTS |
Fan Speed
RPM |
AirFlow
CFM |
Pressure
lnch-H2O |
Noise
dBA |
| EC5010TH05X |
5 |
0.28 |
1.4 |
6000 |
10.71 |
0.15 |
<29 |
| EC5010HH05X |
5 |
0.25 |
1.25 |
5500 |
10.07 |
0.13 |
<27 |
| EC5010H05X |
5 |
0.22 |
1.1 |
5000 |
8.84 |
0.11 |
<25 |
| EC5010M05X |
5 |
0.19 |
0.95 |
4500 |
8.63 |
0.1 |
<23 |
| EC5010L05X |
5 |
0.16 |
0.8 |
4000 |
8.08 |
0.09 |
<20 |
| EC5010TH12X |
12 |
0.16 |
1.92 |
6000 |
10.71 |
0.15 |
<29 |
| EC5010HH12X |
12 |
0.14 |
1.56 |
5500 |
10.07 |
0.13 |
<27 |
| EC5010H12X |
12 |
0.12 |
1.44 |
5000 |
8.84 |
0.11 |
<25 |
| EC5010M12X |
12 |
0.09 |
1.08 |
4500 |
8.63 |
0.1 |
<23 |
| EC5010L12X |
12 |
0.07 |
0.84 |
4000 |
8.08 |
0.09 |
<20 |
| EC5010LL12X |
12 |
0.06 |
0.72 |
3500 |
7.07 |
0.07 |
<17.26 | | |
| E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing |
• Material:impeller&Frame:Plastic(UL 94V-0)
• Lead Wires:
UL 1007 AWG #28 Or Equivalent
Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
• Function type is optional.
• The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
• Noise is measured in anechoic chamber in free air,one meter from intake side.
• All readings are typical values at rated voltage.
• Specifications are subject to change without notice.
• Additional special function may be added according the requirement of customer. | |
| | |
