Akasa AllInOnePanel 5 1/4“ AllInOne-Fan Controller, Mem Card
[AK-All-01BK]
Каталожен №: ++168 Производител: Akasa

76 06 лв.

Изпращайте ми известия

на склад: не
Продуктът не е наличен
76.06 BGN

Описание:

- Стилен отварящ се мулти-функционален преден панел - USB, четец за мултимедийни карти, дисплей, контрол на два вентилатора, два термодатчика, 1394, аудио, SATA, SATA захранване...

Характеристики:

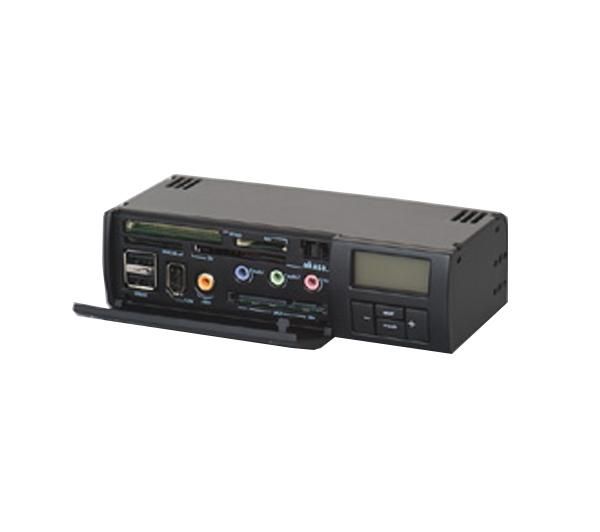

The allinone is a stylish multi-function panel that is equipped with multi-slot card reader, temperature display with alarm plus RPM control and multi I/O ports, The allinone is installed in 5 1/4 device bay. The multi-slot card reader addresses all the popular memory cards and the 4 memory-slots are active, which allows copy/transfer of data between the different memory cards. An over temperature alarm can be set. The LCD shows 2 fan rpm’s and monitors 2 temperature zones. The multi I/O ports function in the front of a PC provides convenient cable connection, including USB/ IEEE1394/ audio/ video connectors/ SATA power/ SATA data.

Stylish push open front cover
Hi-speed USB 2.0 backwards compatible with USB 1.1
4 Memory slots addressing 9 memory card formats
All 4 memory-slots are active allowing cross format transfer
LED display indicating power on
LCD shows 2 fan rpm’s and monitors 2 temperature zones
Over-temperature alarm · Fan failure alarm
Compatible with Mo/Bo fan signal detection
13 I/O ports
USB 2.0 x 2, IEEE1394 x 1, audio - speaker x 1, mike x 1,
earphones x 1, memory card reader x 4, A/V x 1, SATA data x 1,
SATA power x 1

Application	Standard 5.25'' Drive Bay
Fan Connection	12V DC, max 18W per channel
RPM Display	0000 – 9999 RPM
RPM Adjustment	6V – 12V
Alarm RPM Adjustment	500 – 2000 RPM
Temperature adjustment	5°C / 9 °C
Sensor range	0-90.0°C / 32-194°F
Presetting alarm value	800 RPM/ 50°C (122°F)
Auto fan control settings	45°C / 113°F = 7V 55°C / 131°F = 10V 65°C / 149°F = 12V
DC input	+5V/+12V, USB Bus power
I/O ports	2 x USB 2.0 1 x IEEE 1394 1 x SATA 15 + 7-pin 1 x RCA 1 x Audio in & out 1 x Mic in
Memory card type	CF I & CF II Microdrive SM SD & Mini SD (adapter) MMC & RS MMC (adapter) MS & MS MagicGate MS PRO, MS Pro MagicGate & MS Duo (adapter) MS Duo MagicGate (adapter) MS Pro Ultra II MS ROM MS Select T-Flash (adapter)
Reader interface	USB 2.0
Operation System	Win 98SE/ME/2000/XP/x64
Produce code	AK-ALL-01BK

Multi format memory card

	Read and writes: CF Type I/II, MD, MS, MS Duo, MS Pro, MS Duo Pro, SM, SD, and MMC
	4 active memory slots
	Simultaneous cross format transfer Supported OS: Win 98SE/ ME/ 2000/ XP/ x64

Multi Port Access

	2 x Hi-speed USB 2.0, 1 x Firewire (IEEE 1394)
	Audio (Line in, Line out, Mic.in) & Video
	SATA data & power

Manual/Auto Smart Fan & Temperature Control

	Display for 2 fan speeds and temperature monitoring with cool blue LCD backlight
	Auto-Smart or manually adjustable fan speed control
	Adjustable fan speed and temperature alarm warning
	Monitor 2 temperature zones

1 SATA data cable

1 USB external cable

1 IEEE 1394 external cable

1 Mic cable

1 Audio cable

1 RCA video cable

1 PCI backplate

3 Cable ties

1 Screws and adhesive set

2 Fan cables

1 SATA power adaptor

1 Power connector

1 External SATA power cable

1 IEEE 1394 internal cable

1 USB internal cable

2 Temperature sensors

Multi language installation manual

Installation Manual

Installation components

SATA data cable

USB external cable

IEEE 1394 external cable

Mic cable

Audio cable

RCA video cable

PCI backplate

Cable ties

Screws and adhesive set

Fan cables

SATA power adapter

Power connector

External SATA power cable

IEEE 1394 internal cable
(Extra internal option)

USB internal cable (Extra internal option)

Temperature sensors
