Разопакован продукт Захранване PSU 500W Bronze Modular - DA500-M
[SH-GP-BZ-DA500-M]
Каталожен №: ++2966 Производител: Разопакован продукт

46 79 лв. / €23 92

Изпращайте ми известия

на склад: не
Продуктът не е наличен
46.78 BGN

Описание:

секънд хенд

Характеристики:

Description

DA 500-M has up to 85% electrical efficiency enabling lower heat generation and lower operating cost. Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage. Double layer EMI filters protect from magnetic interference and restrains noise while operating.

up to 85% efficiency（230VAC）

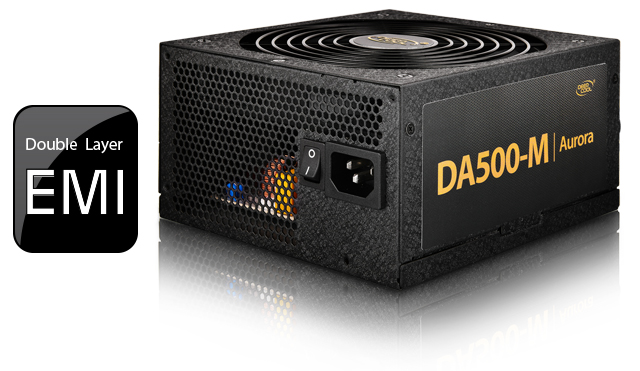

Double Layer EMI Filter

Double Layer EMI Filter ensures low level of electromagnetic interference to keep your electronic devices uninterrupted.

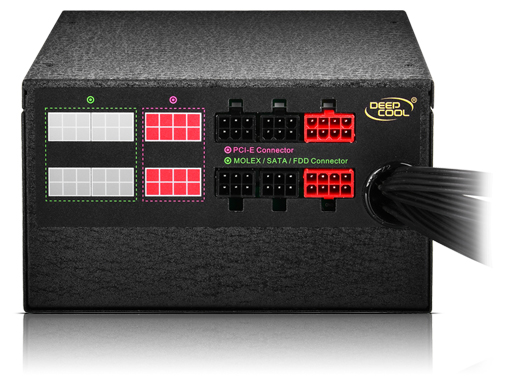

Modular Cable System

With modular cable system, you can connect only the cables you need to ensure a tidy and nice-looking case.

Output

AC INPUT	VOLTAGE		CURRENT	FREQUENCY
AC INPUT	200-240V		4A	47-63Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
CURRENT(Max)	18A	18A	38A	0.3A	2.5A
OUTPUT(Max)	110W		456W	3.6W	12.5W
TOTAL OUTPUT	500W

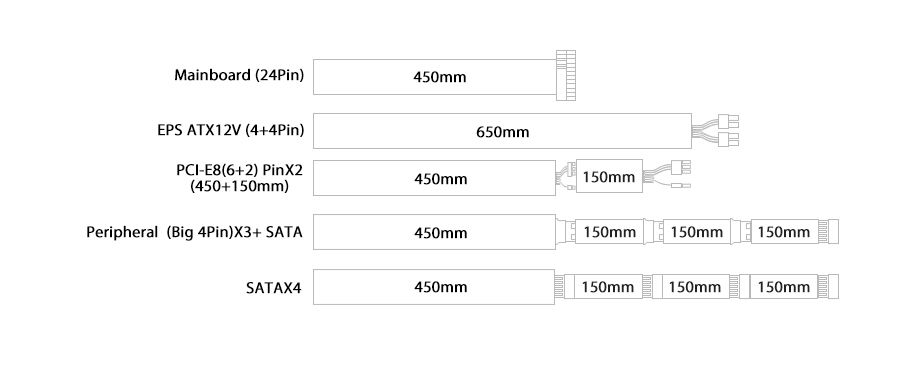

Cables

Spec

Features

Compliant Intel ATX12V v 2.31;

The integrated Active PFC PWM Combo Controller will increase the efficiency of exchange and make PFC higher than 99%;

up to 85% efficiency;

Assembled copper AL heatsink make cooling more efficient;

14CM silent fan with PWM function;

Modularized flat cabling design reduces the resistance of airflow by a regular cable layout, and increases the cooling capability of system;

Double-Layer EMI Filter protects from electromagnetic interference & restrains noise;

Intelligentized eco-friendly chipset, consume < 1W in its off-mode, compliant Erp standard;

CircuitShield™ —OVP, UVP, SCP, OPP;

Supports Multi-Way SLI / CrossFire Multi-Core CPUs.

Technical Spec

Model	DA500-M
Type	ATX 12V V2.31
Dimension	150×160×86mm (W x L x H)
Output Capacity	500W
Input Voltage	200~240V
Input Current	8A
Input Frequency Range	47~63Hz
Fan Size	140mm
PFC	Active PFC (>0.99)
Power Good Signal	100-500ms
Hold Up Time	>16ms
Efficiency	80% Under Typical Load
Protection	OVP / UVP / SCP / OPP
Operation Temperature	0~40°C
Regulatory	CCC / CB / CE / EAC / TUV
MTBF	120,000 Hours
