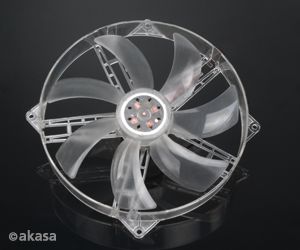

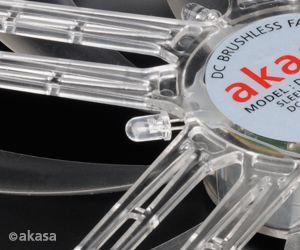

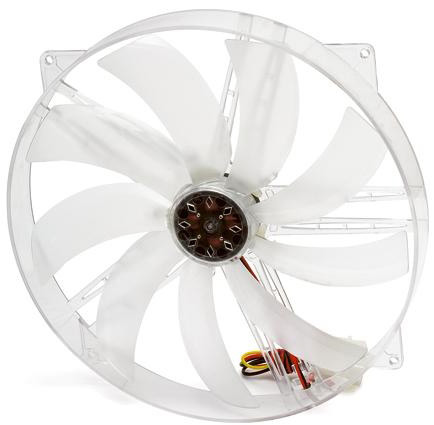

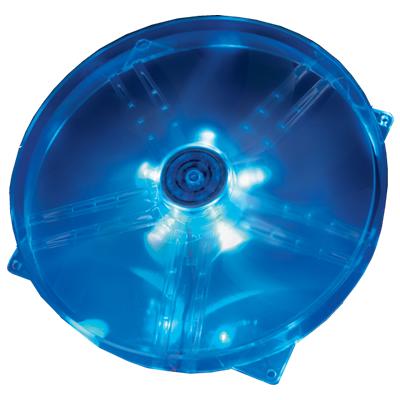

Near silent five blue-LED fan
Ideal for DIY modding or as a replacement for an existing 22cm chassis fan. Crystal clear fan and five blue LEDs add style to the PC case. The nine large fan blades provide massive amounts of cooling airflow to all system components at a very low speed, which makes the fan virtually silent.
An additional 95 CFM of airflow directed towards motherboard, VGA card(s) and RAM can significantly improve the system stability, which might be extremely important especially at the next LAN PARTY
• blue LED case fan
• Ultra quiet acoustics
• Precision balanced low air impedance fan blades
• new design clear case fan
| Application |
PC case or heatsink fan |
| Dimension |
220 x 220 x 30mm (170mm fittings) |
| Fan speed |
600 RPM |
| Airflow |
95.63 CFM (162.1m3/h) |
| Fan air pressure |
0.66 mm H2O |
| Noise level |
23.48 dB(A) |
| Current rating |
0.28A |
| Voltage rating |
12V DC |
| Bearing type |
Sleeve |
| Fan life expectancy |
30,000 hours |
| Connector |
4pin PSU |
| Product code |
AK-F2230SM-CB |
