Alpenfohn CPU Cooler Matterhorn - Intel/AMD
[917]
Каталожен №: ++917 Производител: Alpenfohn

128 29 лв.

Изпращайте ми известия

на склад: не
Продуктът не е наличен
128.29 BGN

Характеристики:

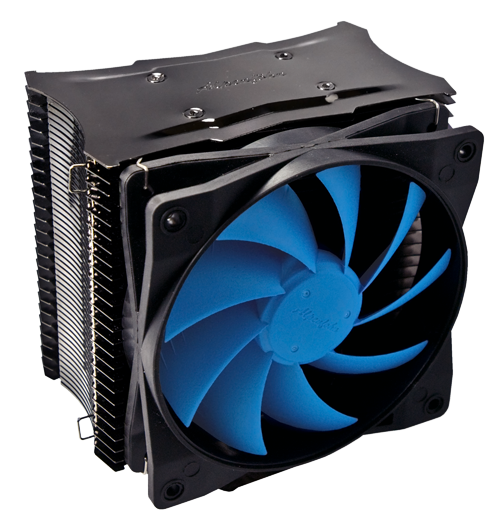

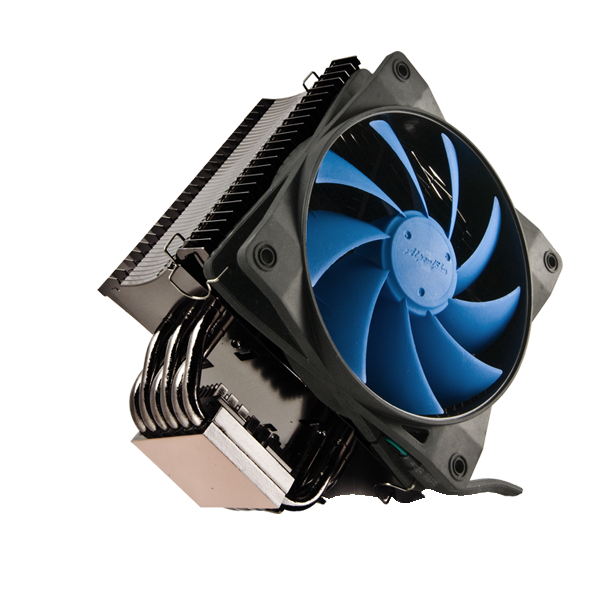

Alpenföhn Matterhorn

Alpenföhn enters the next level and presents the „Matterhorn".The brand new 120mm tower cooler. Highest manufacturing quality, noble matt black finish as well as multiple features make this cooler the best solution for any application.

Features:

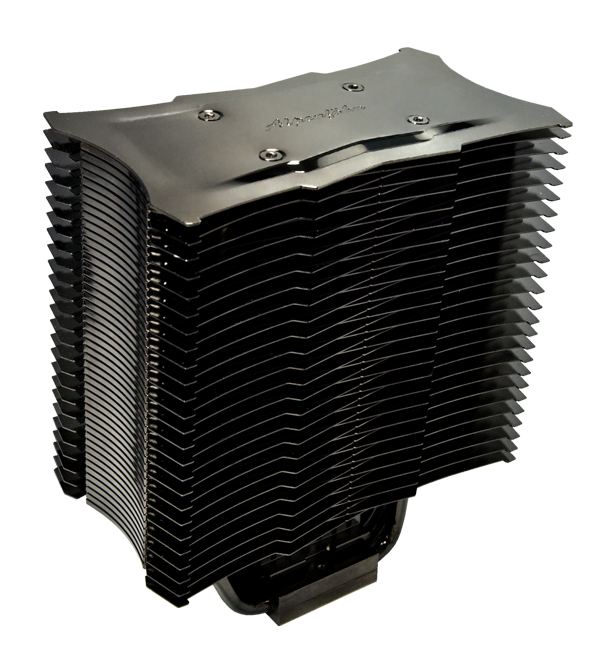

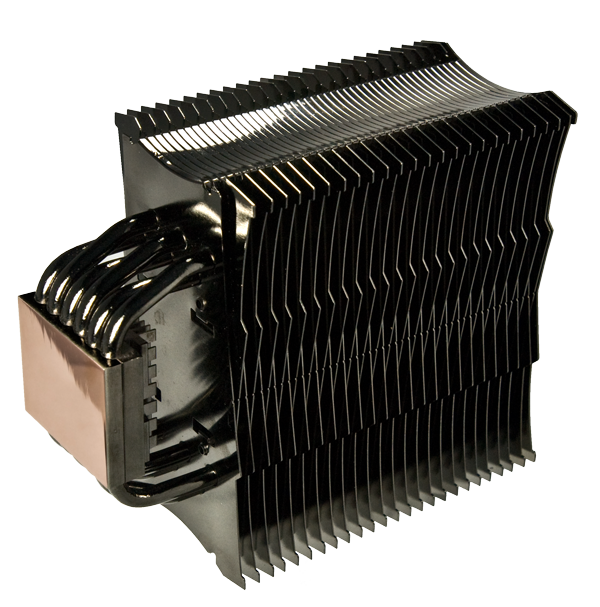

Mirror finished Fin design:

The special trapezoid shaped fins that are placed in a 180° rythm creating two essential advantages:

- Narrow Fin pitch in the center of the heatsink

This feature increases the thermal surface and ensures a higher heat dissipation

- Wide fin pitch at air inlet area

By having a wide fin pitch at the air inlet area the Alpenföhn „Matterhorn" can be run with very low fan speed as the airflow faces less resistance.
Despite that the "Matterhorn" cooler has closed sides. This helps guiding the air through the narrow fin area and offers better mechanical stability

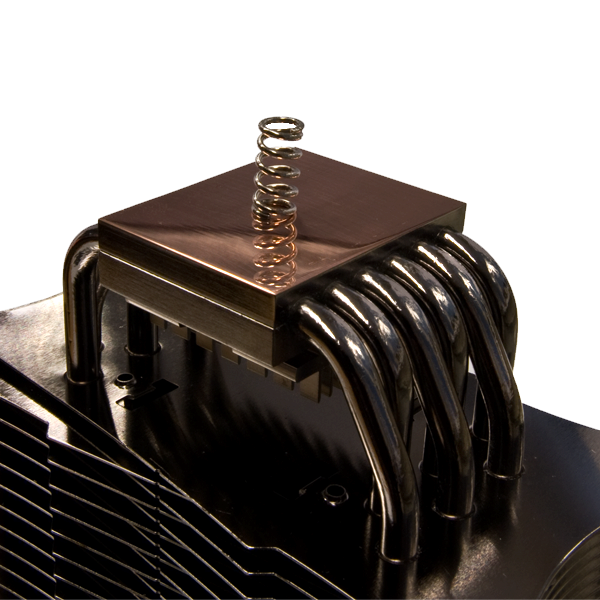

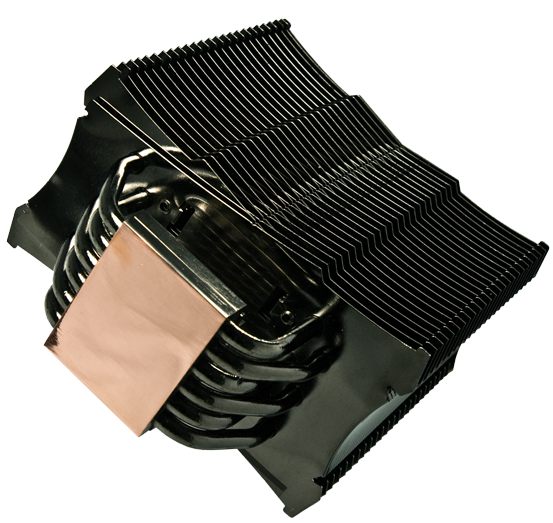

Heatpipe/Baseplate:

The six U-shape Heatpipes have a large contact area to the full copper baseplate to optimize the heat-transfer from the CPU.
By precision CNC machining the surface of the base plate is extremely flat.

Fan:

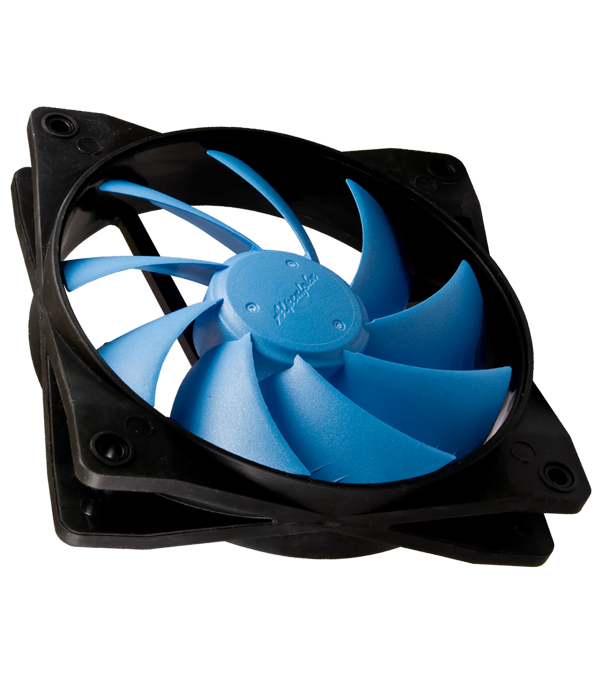

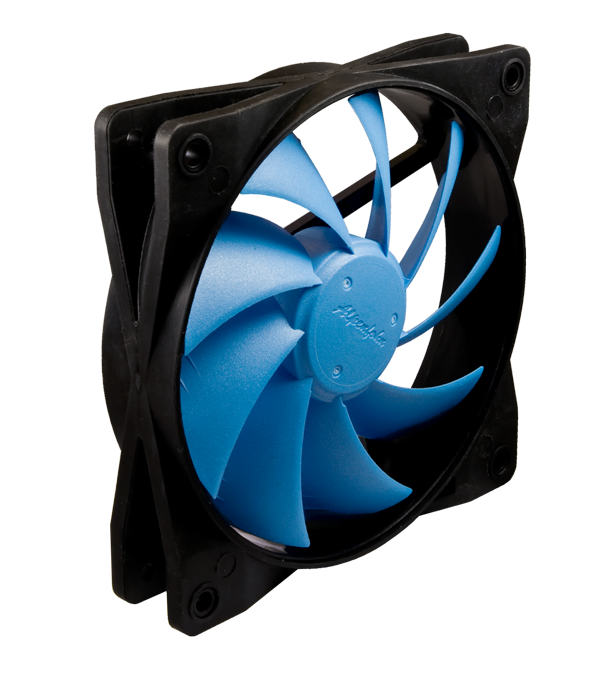

The “Föhn120 WB” fan is equipped with injected anti-vibration elements, WB technology and HDS bearing.

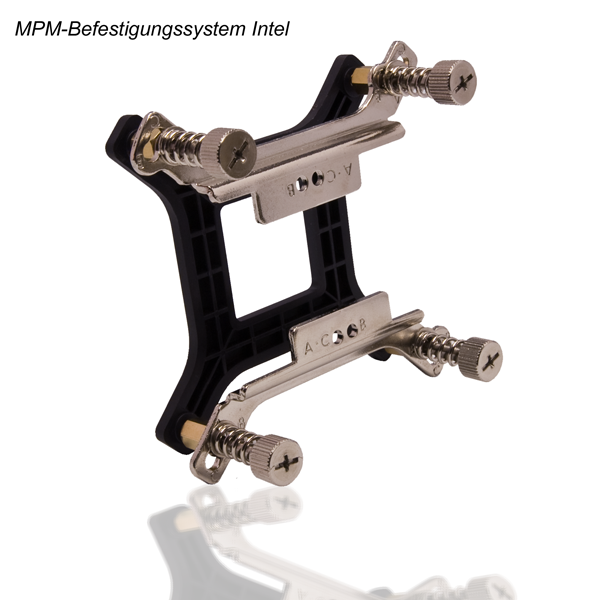

MPM-System:

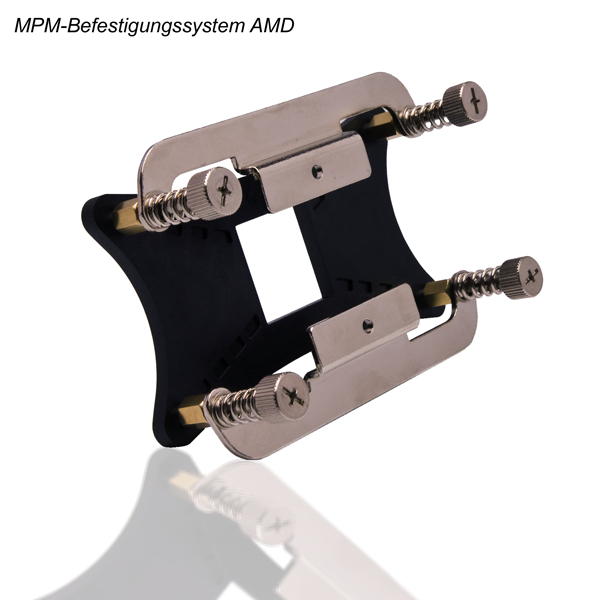

The new MPM-System (Multi-Positioning-Mounting) offers highest contact pressure and ensures a solid mounting.

Supported sockets:

Intel Socket 775, 1156,1366
AMD Socket AM2, AM2(+)and AM3.

Special Feature: The positioning of the cooler towards the case back panel is possible for intel systems as well as AMD systems.

Heatsink specifications:

Size Heatsink (with fan)	138x100x158mm
Size Heatsink (w/o fan)	138x075x158mm
Weight (with fan)	1067gr.
Material	Mirror finished copper base, copper Heatpipes, black nickel plated aluminium fins.

Fan specifications:

Model	Alpenföhn Föhn120 Wing Boost
Size	120x120x025mm
Operating Voltage	12 VDC
Guaranteed operating range	5 – 13,2 VDC
Noise 500 rpm 900 rpm 1300 rpm 1500 rpm	19,7 dB(A) average 8 dB(A) 11dB(A) 19,2 dB(A) 24,8 dB(A)
Fan speed(12VDC)	1500 rpm
Fan speed(7VDC	850-900 rpm
Fan speed(5VDC)	500-550 rpm
Airflow	108m³/h

Included accessories:

1X Mounting material for Socket 775,1156,1366, AM2, AM2(+), AM3

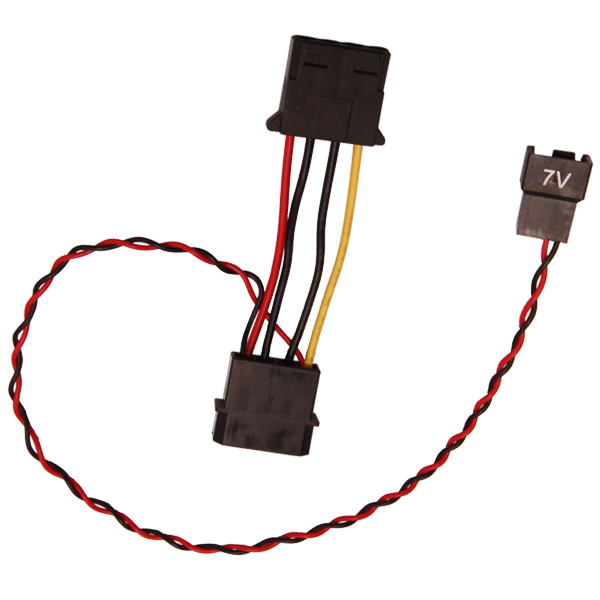

1X 7 VDC Voltage adapter

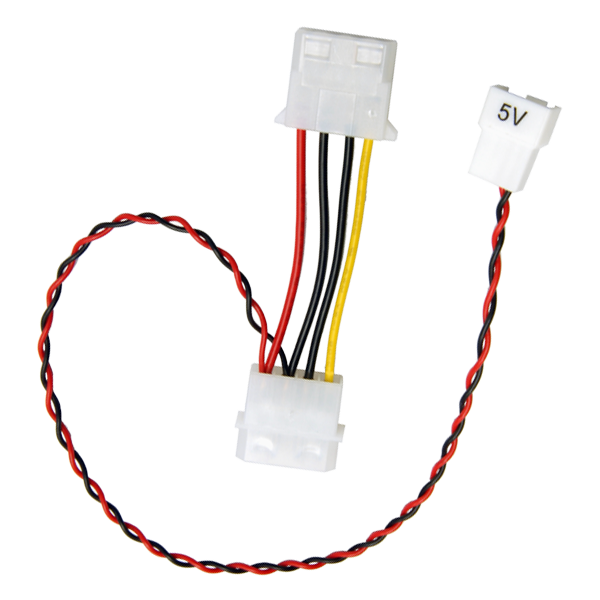

1X 5 VDC Voltage adapter

4X Fan mounting brackets

1X syringe thermal grease

awards:

Download Installationsanleitung 775
Download Installationsanleitung 1156
Download Installationsanleitung 1366
Download Installationsanleitung AMD
