| ㆍSpecifications |
|
| ㆍSupport CPU list |
| Intel CoreTM 2 Exterme(Socket LGA775) |
|
| Intel CoreTM 2 Duo (Socket LGA775) |
|
| Intel Pentium Extreme Edition (Socket LGA 775) |
|
| Intel Pentium D (Socket LGA 775) |
|
| Intel Pentium 4 (Socket LGA775) |
|
| Intel Celeron D (Socket LGA775) AMD Athlon 64 X2 (Socket 939, AM2) |
|
| AMD Athlon 64 FX (Socket 939, AM2) |
|
| AMD Athlon 64 (Socket 754, 939, AM2) |
|
| AMD Sempron (Socket 754, AM2) | |
|
| ㆍDimension |
100(L) x 94(W) x 77(H) mm |
|
| ㆍHeatsink Material |

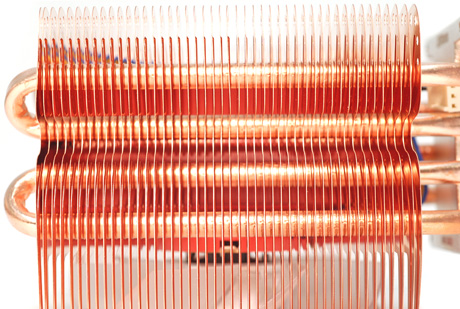

| Fin : Copper |
|
| Base : Copper |
|

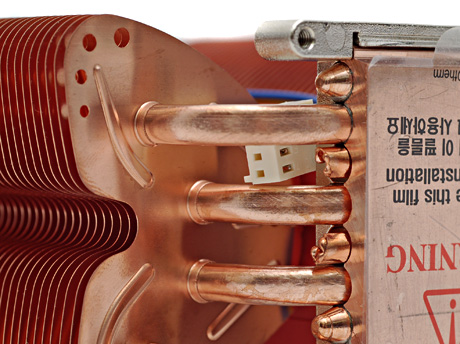

| Heatpipe : Copper | |
|
| ㆍHeat Dissipation Area |
4,400 ㎠ |
|
| ㆍCooling Capacity |
Over 150W |
|

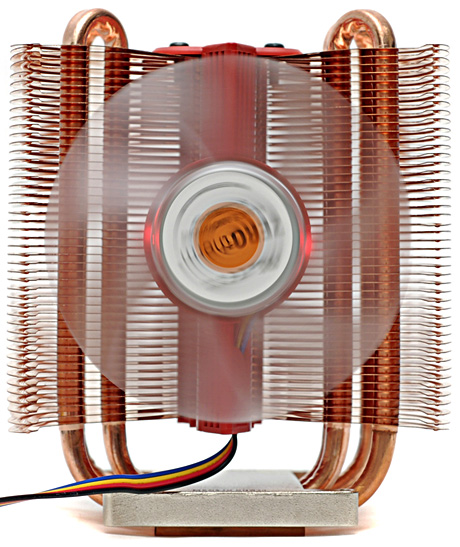

| ㆍFan Dimension |
92 x 25 mm |
|
| ㆍFan Speed |
Automatic fan speed control by PWM
750~2,500 rpm (± 10%) normally under 1,500 rpm |
|
| ㆍAcoustical Noise |
Max. 27 dBA (± 10%), normally under 18 dBA |
|
| ㆍAir Flow |
Max. 42.8 CFM |
|
| ㆍFan Connector |
4-pin, 4-wire (PWM) |
|
| ㆍRated Voltage |
DC 12V |
|
| ㆍPower Consumption |
Max. 1.56W |
|
| ㆍWeight |
678g (w/o optional components) |
| |
