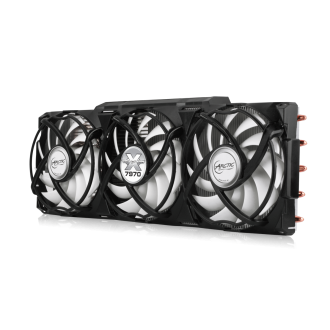

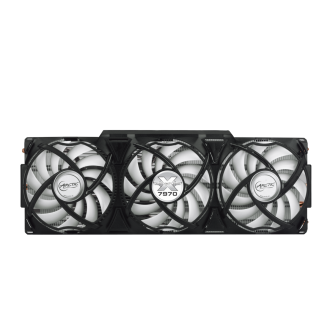

![]() The Accelero Xtreme 7970 is precisely optimized for the world's first 28nm AMD 7900/7800 series GPUs and offers superior cooling performance in silence. No silent enthusiast or overclocker wants to miss this cooler. | ||||
![]() |
![]() |
![]() | ||
![]() |

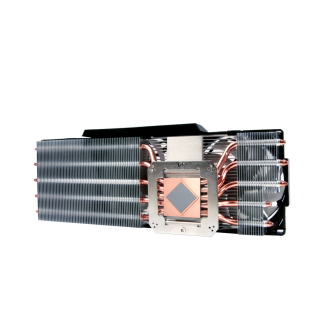

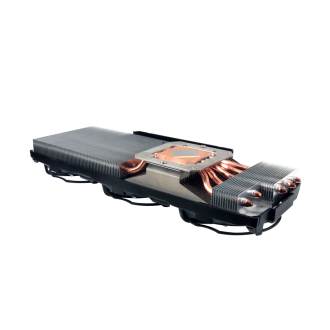

Superior Cooling Performance Featuring three 92mm PWM fans with a maximum cooling capacity up to 300 Watts, the Accelero Xtreme 7970 manages to transfer heat efficiently away from the GPU. Besides the 84-fin heatsink with 5 copper heatpipes, the pre-applied MX-4 thermal compound accelerates the heat dissipation process to ensure the VGA board is running under optimal temperature. Cooling Performance on AMD Radeon HD 7970 OC Accelero Xtreme 7970 (at 2,000 RPM) ![]() Stock cooler (at 3,000 RPM) ![]() ![]() Ambient temperature: 25oC | |||
Enhanced RAM and VR Cooling The Accelero Xtreme 7970 comes with the non-conductive G-1 thermal glue which is used to affix RAM and VR heatsinks on the VGA board. It is especially formulated to offer excellent thermal conductivity with long-lasting adhesiveness of over 10 years. Moreover, removing the G-1 is as easy as removing a thermal tape. |
![]() | |||
![]() |
Virtually Silent With three PWM-controlled 92 mm fans, the Accelero Xtreme 7970 cools efficiently and silently. Thanks to the PWM control, the fan spins according to the temperature of the GPU. This means that the fans just spin up if necessary and will rest at minimum speed otherwise. PWM settings can be modified to fix the priorities between performance and noise. Click here to see how the PWM settings work. Noise Level on AMD Radeon HD 7970 OC Accelero Xtreme 7970 (at 2,000 RPM) ![]() Stock cooler (at 3,000 RPM) ![]() ![]() | |||
CrossFire-Compatible Accelero Xtreme 7970 is compatible with the AMD CrossFire technology. It allows you to intelligently scale graphics performance by combining multiple AMD graphic cards on a single CrossFire-Certified motherboard.
|
![]() | |||
Technical data
Max. Cooling Capacity | 300 Watts |
---|---|
Heatpipe | Ø 6 mm x 5 |
Heatsink Material | Aluminum fins x 84, thickness 0.3 mm |
Fan (mm) | 92 mm, 900 - 2,000 RPM (controlled by PWM) x 3 fans |
Bearing | Fluid Dynamic Bearing |
Noise Level | 0.5 Sone |
Current, Voltage | 0.12A / 12V |
Power Consumption | 4.32W |
Dimensions (Product) | 288 (L) x 104 (W) x 54 (H) mm |
Net Weight | 653 g |

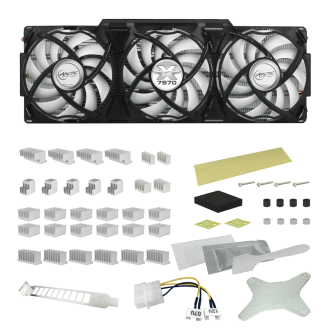

Accessories | |
Heatsink | 31 pcs |
Screw (M2) | 4 pcs |
Spacer (3.0 mm) | 4 pcs |
Spacer (3.5 mm) | 4 pcs |
Adhesive Tape | 2 pcs |
Insulation Tape | 5 pcs |
EVA Foam | 1 pc |
GPU Back Plate | 1 pc |
G-1 Thermal Glue (2.0 g Grey Compound) | 1 bag |
G-1 Thermal Glue (2.0 g White Compound) | 1 bag |
Mixing Wand | 1 pc |
VGA Bracket | 1 pc |
4-Pin Fan Power Adapter | 1 pc |
Dimensions (Packaging) | 292 (L) x 110 (W) x 60 (H) mm |
itemnumber | DCACO-V15G300-BL |
UPC | 0872767005617 |
Gross Weight | 1.1 kg |

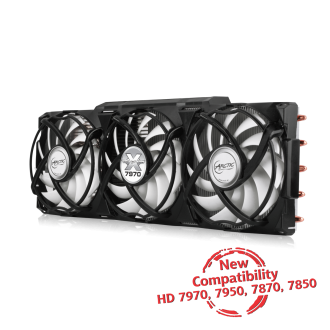

Compatibility
AMD Radeon
Series | Chip |
---|---|
7000 |
7970,
7950,
7870,
7850 |
6000 |
6970,
6950,
6870,
6850,
6790 |
5000 |
5870,
5850,
5830 |
