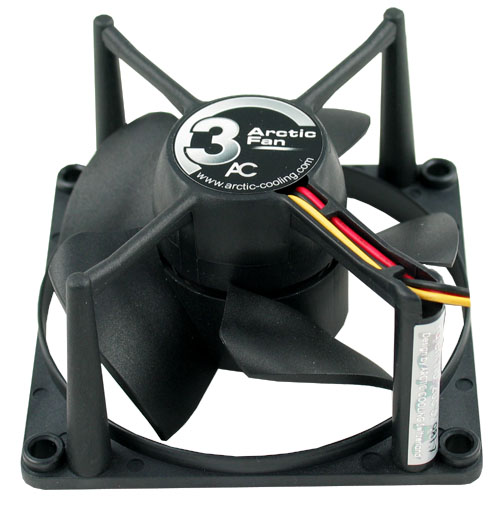

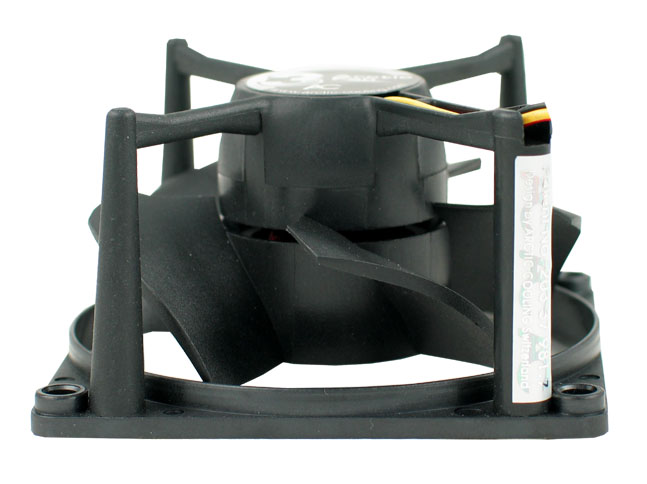

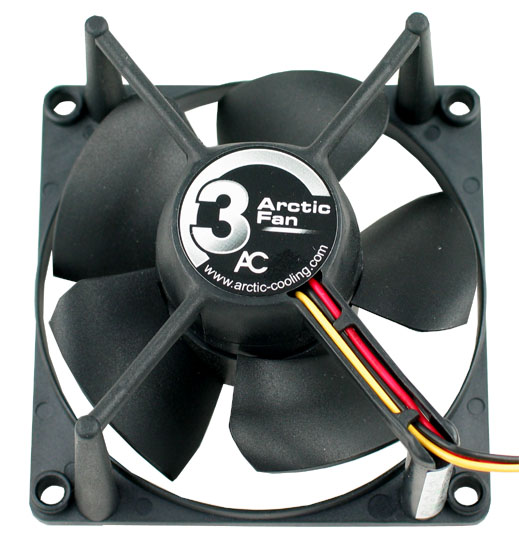

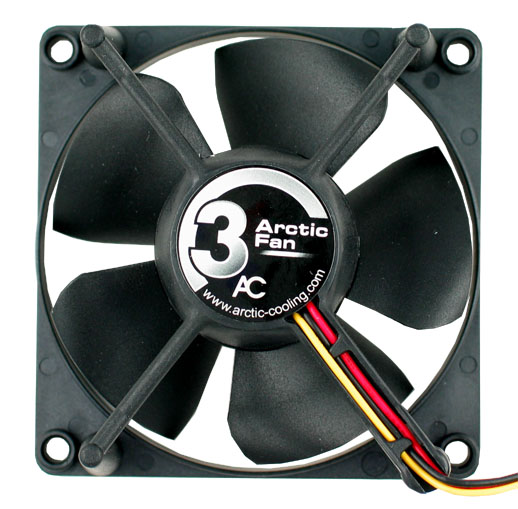

80 mm Case Fan
Efficient Ventilation
The cooling of all PC components rests on that warm air is drawn out of the housing. As a rule the power unit cannot provide a good ventilation of the housing, without its' fan running at a high number of revolutions therewith causing much noise.
An additional fan like the Arctic Fan 3 solves this problem. The power unit fan can substantially lower its speed and thereby work more quietly.
The ventilation of the housing using two fans produces at the same airflow less than half of the noise. (5dB more is perceived as twice as loud for noise levels below 35 dB)
Extremely Quiet
The patented fan holder is able to practically eliminate the typical buzzing sound of 80 mm fans.
Patent No 203 07 981 U1 (Germany)
Patent No 10/834 232 (USA)
6 Years Warranty
The Arctic Ceramic bearing offers a unique 163’000 h MTBF at 70°C. Therefore we grant a unique 6 years warranty.
| Dimensions: |
|
80 x 80 x 45 mm |
| Rated Fan Speed: |
|
1900 RPM |
| Air Flow: |
|
28 CFM / 48 m3/h |
| Power Consumption: |
|
12 V, 0.12 Amp. |
| Noise Level: |
|
0.8 Sone |
| Weight: |
|
75 g |
| Connector: |
|
3 Pin Molex |
| Warranty: |
|
6 Years |
 |
|
08/2005
Toxico-PC: Arctic Fan 3
A clear sample that style until in the smallest details without the necessity to include leds or other additions can be had so that something calls the attention. Arctic Cooling managed to break with the rules of which a showy design is the design of a ventilator doing, sober and highly quiet when operating offering an important air volume. Without doubting it it is a product for that looks for silence in its sure PC and a style touch. |
| |
 |
|
05/2005
jet-pc: Arctic Fan 3TC
Thanks to the superior design it was possible to get the same air flow at a lower fan speed. Therefore this fan works quieter than fans with a comparable air flow. |
| |
 |
|
01/2005
Modding-Factory: Arctic Fan 3
Der Lüfter glänzt von seiner Leistung und der Qualität. Arctic-Cooling verspricht einen Lüfter, der einmalig ist, allein schon vom Design her. Aber das ist noch nicht genug: Er ist leise, hat einen guten Luftdurchsatz und garantiert lange Lebensdauer. Arctic-Cooling setzt noch einen drauf und gibt diesem Lüfter 6-Jahre Garantie und das alles für nur ~7€ Anschaffungskosten. |
| |
