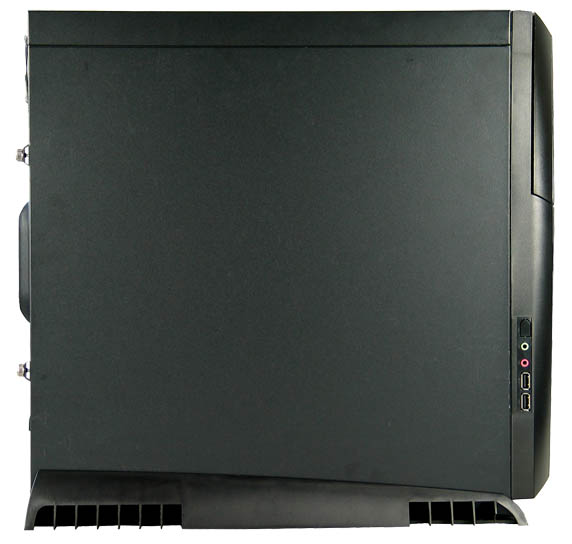

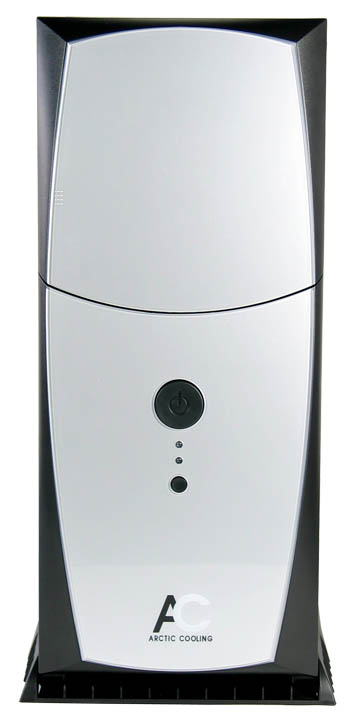

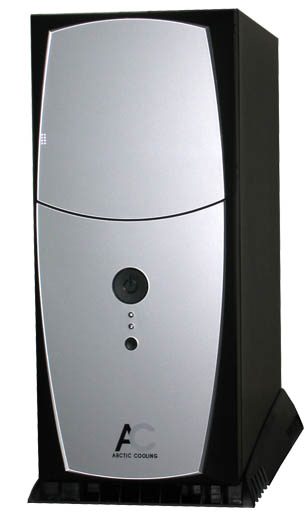

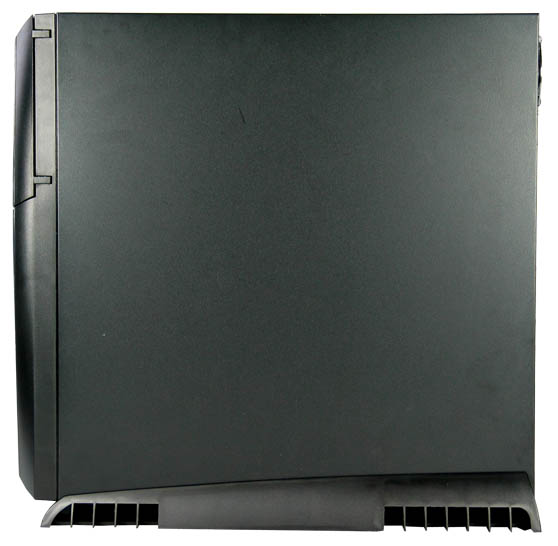

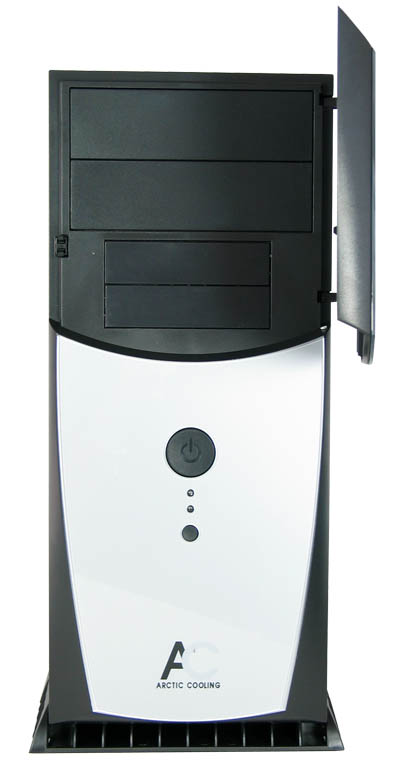

Arctic Silentium T1
[70]

Каталожен №: ++70   Производител: Arctic

Описание:

Характеристики:

Full ATX Midi Tower Case

Thermodynamics
The Silentium T-Series is the first  PC Tower case, which in terms of thermodynamics does not follow the ATX standard of the mid 1990s. This case was developed from scratch based o­n the idea of noise reduction and optimal thermodynamic properties.

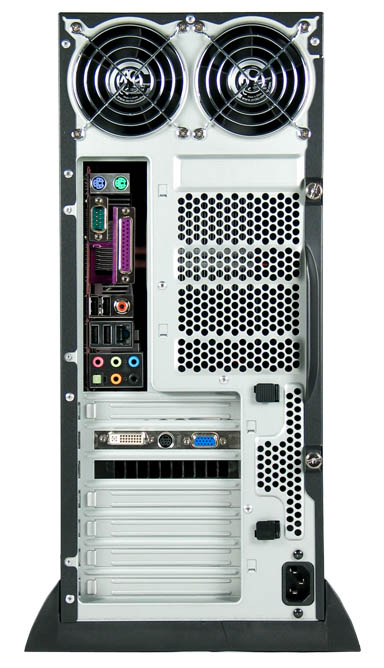

-Warm air emitted from the CPU cooler rise unhindered towards the top of the
case blown out of the case via 2 temperature controlled fans spinning at max. 1900 RPM. This stops the CPU cooler from simply churning the same warm  air over and over again.

-Cool air is drawn inside the case towards the CPU cooler and expansion cards. This allows for the temperature of sensitive components to decrease significantly.

-The power supply is cooled via 2 temperature controlled fans spinning at max.1900 RPM. Thanks to the lower position of the power supply a smaller airflow is sufficient for cooling.

Noise Reduction
The case has been designed from start with the goal to reduce the noise to an absolute minimum. Openings to the front of the case were intentionally left out.
Air exhaustion and power supply cooling have been configured for a high end PC, despite this high end configuratoin the system operates virtually silent.

I/O Front Connectors
Audio In and Out as well as two USB 2.0 connectors are included in the front bezel. The IEEE 1394 (Firewire) connector is optional

HDD Muffler
An a luminum frame muffles the harddrive noise and at the same time keeps it cool. The suspended frame stops vibrations from carrying over o­n to the chassis.

Power Supply
-Excellent Efficiency 75-80%
  Low heat generation
  Lower energy consumption
  Lowest electricity costs

-Active PFC (99%)
  No humming noises even during high loads
  No voltage peaks which cause efficiency losses
  No ripplevoltage in power network

-Rated Power = Continuous Power
Most power supplies provide o­nly between 60-80% of the indicated power over a continous amount of time. Our PSU provides 450 Watt max. power for a short time and 350 Watt continuously.


















At 350 Watt continuous power the power supply is well proportioned and will provide sufficient power for the highest demands for many years to come. Numerous in house and independant tests have proven that today's PC consumes at most 230 Watt (P4 3.8 GHz, Geforce 6800 Ultra).
As shown in diagramm, compared to over proportioned power supplies the efficiency of the Seasonic/ARCTIC does not plummit during low loads below 120 Watt.
The power consumption at a power demand of 280 Watt is for the Seasonic/ARCTIC power supply o­nly 70 Watts compared to the 151 Watt of low cost generic 350 Watt model. This results in a savings of 120.70 $ over 4 years. (4h load and 4h idle per day 0.19$/kWh)

Torsionproof Chassis
The mechanicaly optimized construction using  0.8 mm SECC steel makes this case despite a reative low weight o­ne of the most torsion resistant cases available.

Screwless Design
The screwless installation of expansion cards and disk drives allows for quick and simple assembly.

Long Service Life
The power supply is the most common cause of shut downs or system  instability .
Despite this fact in most cases low qualities power supplies are still found in today?s PC. The result are system failures after o­ne to two years.
With Seasonic ARCTIC COOLING has chosen the best in power supply manufacturers.
All 4 fans use a special ceramic bearing which can reach a service life of L10 (@40°C) 137000h or a never before reached  MTBF of  163000h.

		12/2005 X bit Laboratories: Silentium The results are excellent, considering the CPU cooler rotation speed in each of the modes. The cases are very quiet – I could o­nly hear some noise in the CPU Burn mode and o­nly at the rear panel of the case. The exhaust fans can o­nly be heard if you put your ear right to them – the special shape of the blades makes the fan nearly noiseless even at the maximum speed. The exclusive ceramic bearing showed well, too. The Silentium system case was o­ne of the quietest I had ever tested (at the default speed of the system fans). There’s no vibration at all, and the company’s 6-years warranty is reassuring, too.
		11/2005 Upgrade Advisor: Silentium T2 The Arctic Cooling Silentium T2 case is a non conventional case. Often when a company venture off the well beaten path and change designs, they fail. AC has done a great job with this case. It is very sturdy, has great air flow to keep things running cool, while also running very quiet. This makes it a great option for any desktop or home theater system. The staff member that helped with the drawing when we gave this case away at BoiseFragFest 2005 said it well when he said: "If you win this you are going to want to guard it with your life. You will never again have a case like this in your hands!"
		11/2005 Computerpoweruser: Silentium T2 T2 is an attractive case and very sturdy. Arctic's unique airflow design works well and helps contribute to the unit's low noise - the lowest I've probably seen in any nonfanless chassis design. Seasonic's PSU is a high-efficiency model and copes terrifically with most any single GPU configuration, although it has been adapted to this case and can't be upgraded .The T2 wins o­n quiet and innovation.
		11/2005 Hardware-Review: Silentium T2 In my entire career of doing hardware reviews and building custom PCs, I have never seen a computer case so securely shipped as this o­ne. Arctic Cooling developed a custom packaging system that encases the Silentium T2 between two Styrofoam supports and rests the case o­n a thick foam mat to also ensure its not damaged during transportation. Overall, the Silentium T2 performed exactly as advertised. I was thoroughly impressed with the hard drive muffler cage, tool-less design, and modified power supply. The price was also exactly what it should be for this type of performance case. It's an excellent case for someone who wants a quieter system without doing extensive modding. I give the Silentium T2 an 8.5/10 and Hardware-Review.net's Seal of Approval!
		05/2005 CaseUmbau: Silentium T1 Die Verarbeitung des Arctic Cooling SilentiumT1 hat uns völlig überzeugt. Das erste Gehäuse von Arctic Cooling ist in unseren Augen ein voller Erfolg. Gute Optik wurde mit einer satten Leistung und einer hervorragenden Kühlung kombiniert, wodurch der Preis von gerade ein mal 79,90€ mehr als günstig ist. Dank dem schraubenlosen Design fällt der Hardware-Einbau sehr leicht und alle Komponente können ohne Komplikationen im Gehäuse eingebaut werden. Um das Betriebsgeräusch des Rechners so leise wie möglich zu halten hat Arctic Cooling ein Kühlsystem entwickelt, wie es ausgeklügelter kaum sein könnte. Der Kühlsockel, auf dem das Gehäuse steht ermöglicht die ständig nachkommende frische Luft und die vier im Gehäuse integrierten Lüfter befördern die erwärmte Luft aus dem Gehäuse und kühlen gleichzeitig die wichtigsten Komponenten. Zusätzlich haben die verwendeten Lüfter eine hohe Fördermenge bei sehr geringem Geräuschpegel.
		04/2005 DIRKVADER: Silentium T2 Dem schweizer Unternehmen scheint der Einstieg ins Case-Business auf Anhieb gelungen zu sein. Durch das völlig eigenständige Airflow-Konzept, wartet der Rechner nicht nur mit einem herausragenden Temperaturverhalten, sondern auch mit einem niedrigen Geräuschpegel auf. Der Silent Einsteiger kann mit dem Silentium T2 eigentlich kaum mehr etwas falsch machen. Denn das Silentium T2 wurde von Arctic Cooling bereits mit allem ausgestattet, was für einen leisen Betrieb nötig ist. Mit einem Kaufpreis von EUR 79,90 kann das Silentium T2 u.a. durch seine umfängliche Ausstattung als Schnäppchen bezeichnet werden.
		02/2005 MODTHEBOX.COM: Silentium T2 As previously stated, the noise reduction design of this case is fantastic and is o­ne of the quietest cases that I have had a chance to evaluate in the MTB Labs this year. Aside from a few minor issues, I'm rating the Arctic Cooling Silentium T2 Case a final rating of 8 out of 10.
		02/2005 SystemCooling.com: Silentium T2 The case provides very good airflow for excellent cooling with minimal noise. While not totally silent, the Arctic Silentium 2 enclosure will be considered quiet by all but the most demanding enthusiasts. The Arctic Silentium 2 is a good choice for users who desire a relatively compact simple system that is quiet and has above average cooling capabilities.
		02/2005 Computek Reviews: Silentium T2 With the many features the T2 has, it can appeal to many different crowds including modders, silence seekers, and anyone who is looking for an overall great case. The best feature AC has integrated into this case is it's screw less design, it's truly a time saver. Users looking for a silent case and innovative design features need to look at the Silentium T2, you won't be disappointed. In my eyes, the Silentium T2 has accomplished it's goal of good looks, functionality and whisper quite cooling. Now you can rest your ears and enjoy the silence. Great product Arctic Cooling!
		02/2005 PC Base: Silentium T1 The Silentium 1 case is a well built and designed case. The case has some really nice features; to not o­nly make the case run more quiet maybe a little cooler as well. This case is amazingly quiet. I literally thought something was wrong when I powered the PC up after the install of all the components. I was amazed to find it was just that quiet. The case has a very attractive appearance with the high gloss silver colored bezel, and the deep black paint o­n the rest of the case.
		02/2005 Big Bruin: Silentium T2 Given the unique design, attention to detail, and inclusion of a decent power supply, the price is not out of line. For a slightly different style o­n the same theme, Arctic Cooling also has a Silentium T1 in the same price range.People looking for a high performance, unique case will discover that Arctic Cooling has done it right with the Silentium T2. With a redesigned interior, totally tool-less installation and unique fans, this case performs remarkably well. Overall I have to give the Arctic Cooling Silentium T2 Case 4 out of 5... "Recommended".
		01/2005 Hi Techreviews: Silentium T1 If you're in the market for a case that can offer you great cooling and nearly silent operation thanks to the hard drive muffler and the extra quiet power supply made by Seasonic, then the Arctic Cooling Silentium is definitely the case for you. The quality and workmanship are first rate easy of assembly is make this a near perfect choice for anyone. Rating: 6 out of 6 Stars
		01/2005 MarnsCDA: Silentium T1 This case is amazing from performance to design. The S1 has everything you could want for keeping your PC cool and quite at the same time... Arctic Cooling has created another superb product & I am honored to give this case our highest award the Editors Choice Trophy of Excellence. For a product that takes case technology to the next level... Rating: 6 out of 6 Stars
		01/2005 3D Gameman: Silentium T1 "This case has a quality Seasonic 350W PSU, great looks & unique features. Most cases have the PSU compartment located at the rear, but this product has it located at the front. With four 80mm fans, air circulation is good. Also, there are 2x5.25" (ext.), 2x3.5" (ext.), & 2x3.5" (int.) drive bays. o­ne of the internal 3.5" drive bays is a unique HDD muffler. Watch the Video to find out more..." ~3dGameMan.com
		11/2004 Technic 3D: Silentium T1 Das Case stotzt nur so von guten Dingen. Die Verarbeitung ist unter anderem sehr gut, aber es gab kleine aber feine Stellen, mit denen eine bessere Bewertung nicht möglich war. Und eigendlich auch zu schade um es unter den Schreibtisch zu stellen. Bei mir zumindest hat es einen Platzt auf dem Tisch sicher.
