CoolerMaster PSU Elite Power 460W PPFC 120mm
[RS-460-PSAP-J3]
Каталожен №: ++980 Производител: CoolerMaster

€46 74 / 91 43 лв.

Изпращайте ми известия

на склад: не
Продуктът не е наличен
46.74 EUR

Характеристики:

Introduction

The reliable, efficient and affordable line of Elite power supplies is ideal for mainstream and basic computing systems. Built with quality components and dual +12V outputs, the Elite series is fit to handle demands of high power requirements. The eco-friendly design allows the Elite series to reach more than 70% efficiency at typical loading and meet Energy Star and Blue Angel requirements.

Features

Compliance with the newest Intel standard ATX 12V V2.3

More than 70% efficiency at typical load operation

High performance components design for better reliability

Green power design to meet Energy Star and Blue Angel requirements

Multiple protection design(OVP/OCP/OPP/SCP)

Support dual +12V1 and +12V2 outputs for higher power usage

One 4+4 pin +12V CPU connector for high-end CPU

EMI and Noise filter built in design

Specifications

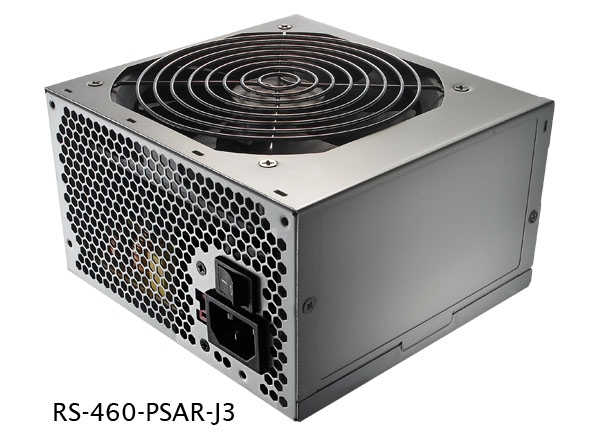

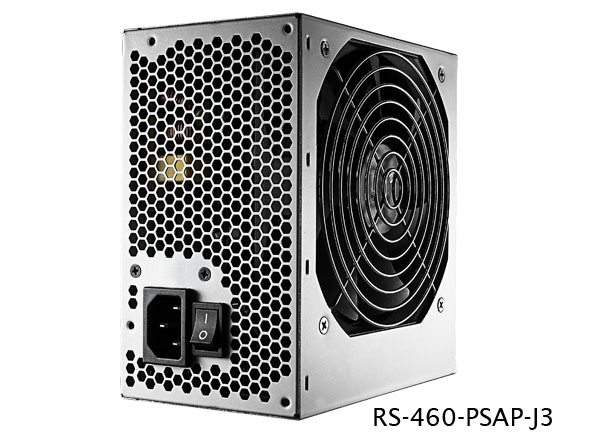

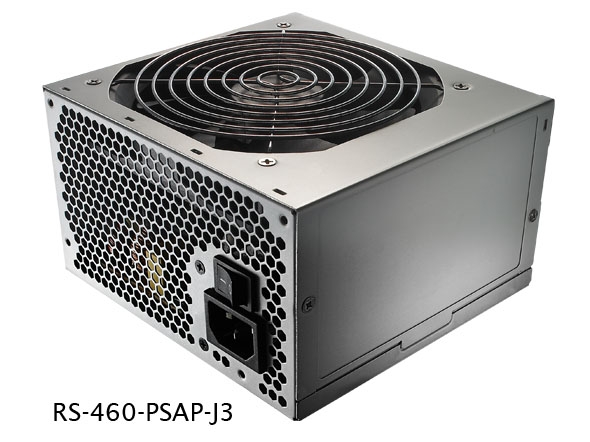

Model	RS-460-PSAR-J3 / RS-460-PSAP-J3

Type	Intel Form Factor ATX 12V V2.3

Dimension (W / H / D)	150 x 86 x 140 mm

Input Voltage	RS-460-PSAR-J3 : 110~120V/220~240V (Selectable) RS-460-PSAP-J3 : 220~240V

Input Current	RS-460-PSAR-J3 : 8.5A @ 115Vac / 5A @ 220Vac RS-460-PSAP-J3 : 6.3A @ 220Vac

Input Frequency Range	47 ~ 63 Hz

PFC	None PFC: RS-460-PSAR-J3 Passive PFC: RS-460-PSAP-J3

Power Good Signal	100 ~ 500 ms

Hold Up Time	>17 ms

Efficiency	>70% Typically

MTBF	>100,000 hrs

Protection	OVP / OCP / OPP / SCP

Output Capacity	460 Watts

Operation Temperature	0~40°C(Nominal Input Voltage)

Regulatory	CE / GOST / C-tick / UL

Fan	120mm fan

Connector	M/B 20+4 Pin x 1 CPU 4+4 Pin x 1 4 Pin Peripheral x 3 SATA x 4 4 Pin Floppy x 1 6 Pin PCI-e Connector x 1
