Introduction

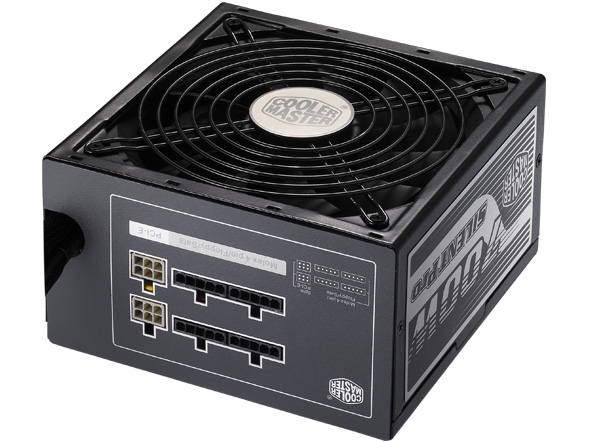

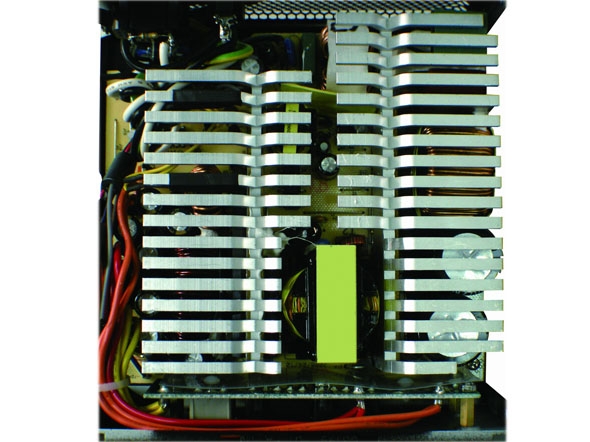

Silent Pro M series delivers up to 50A of power on a single +12V rail, enough power to start up a car. Ample connectors including PCI-e 6 + 2 pins ensure compatibility with the latest high-end systems. The power supply operates at minimal noise levels thanks to Cooler Master’s silent formula. This silent formula which comprises of patented hybrid copper plus aluminum heat sink, anti-vibration padding and intelligent fans.
Features
Specifications
| Model | RS-700-AMBA-D3 |
| Type | Intel ATX12V V2.3 ? SSI EPS 12V V2.91 |
| Dimension (W / H / D) | 150(W) x 86(H) x 150(L) (mm) |
| Input Voltage | 90~264V (Auto Range) |
| Input Current | 12A@115Vac, 6A@230Vac |
| Input Frequency Range | 47~63Hz |
| PFC | Active PFC >0.9 |
| Power Good Signal | 100~500ms |
| Hold Up Time | >17ms |
| Efficiency | 85% Typically |
| MTBF | >100,000hrs |
| Protection | OVP/ UVP/OCP/OPP/OTP /SCP/ OLP |
| Output Capacity | 700W |
| Max. Output Capacity | 840W |
| Operation Temperature | 0~40°C (Nominal Input Voltage) |
| Regulatory | NEMKO / TUV / CE / GOST / C-tick / / UL / FCC |
| Fan | 135mm ultra silent fan |
| Certifications | SLI / 80 Plus |
| Connector | M/B 20+4 Pin Connector x 1 CPU 4+4 Pin x 1 PCI-E 6+2 Pin x2 4 Pin Peripheral x 5 SATA x 9 4 Pin Floppy x 1 |
