Features
.Equipped with multiple clips to support Intel LGA1366/1150/1155/1156/775 and AMD AM3/AM2+/AM2/K8
. Mirror polished copper base gives perfect contact with the CPU surface.
.4 sintered powder heatpipes conduct heat from the processor quickly to protect it from overheating.
.92x92x25mm fan offers a perfect balance between airflow and noise.
.TPE Fan Cover helps absorb operating vibration and reduce fan noise.
.Extra fan clips provided allow to add a second fan to form a push-pull config.
.Intelligent side flow design further utilizes system airflow to improve computer case ventilation.
.Tool free installation.
Application ForIntel Socket 130WLGA1366/LGA1156/LGA1155/LGA1150/LGA775
- Core i7/i5/i3
- Core 2 Extreme
- Core 2 Quad
- Core 2 Duo
- Pentium/Pentium G
- Pentium D/Pentium 4
- Celeron Dual-Core
- Celeron/Celeron D
- AMD Socket 125W
FM2/FM1/AM3+/AM3/AM2+/AM2/940/939/754
- FX X8/X6/X4
- A10/A8/A6/A4
- Phenom II X6/X4/X3/X2
- Phenom X4/X3
- Athlon II X4/X3/X2
- Athlon X2
- Athlon/Athlon FX
- Business Class
- Sempron
Technical Spec
Overall Dimension 100X86X126.5mm
Fan Dimension 92X92X26mm
Net Weight 585g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8～13.2VDC
Started Voltage 7VDC
Rated Current 0.11±10%A(MAX)
Power Input 1.32W
Fan Speed 2000±10%RPM
Max. Air Flow 36.16CFM
Noise 26.3dB(A)

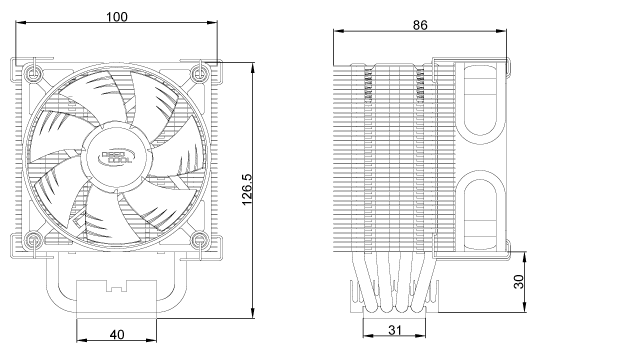

Product Dimension
Technical Spec
- Intel Socket 130W
LGA1366/LGA1156/LGA1155/LGA1150/LGA775
- Core i7/i5/i3
- Core 2 Extreme
- Core 2 Quad
- Core 2 Duo
- Pentium/Pentium G
- Pentium D/Pentium 4
- Celeron Dual-Core
- Celeron/Celeron D
- Intel Socket 130W
LGA1366/LGA1156/LGA1155/LGA1150/LGA775
- Core i7/i5/i3
- Core 2 Extreme
- Core 2 Quad
- Core 2 Duo
- Pentium/Pentium G
- Pentium D/Pentium 4
- Celeron Dual-Core
- Celeron/Celeron D
- AMD Socket 125W
FM2/FM1/AM3+/AM3/AM2+/AM2/940/939/754
- FX X8/X6/X4
- A10/A8/A6/A4
- Phenom II X6/X4/X3/X2
- Phenom X4/X3
- Athlon II X4/X3/X2
- Athlon X2
- Athlon/Athlon FX
- Business Class
- Sempron
