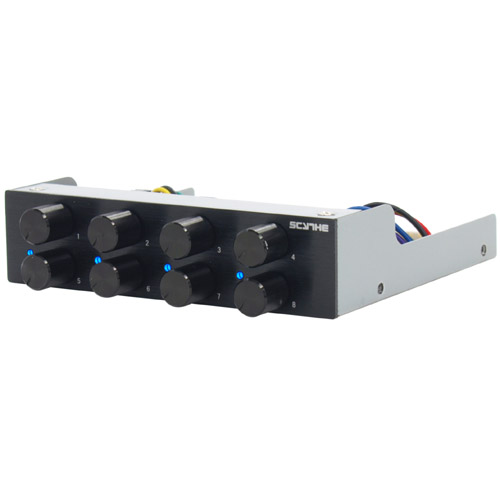

The KAZE-Q8 is a simple to use 8 channel Fan Controller mountable to 3.5” bay.
Provides the function to stop the fan and turn off the Power-LED for every channel.

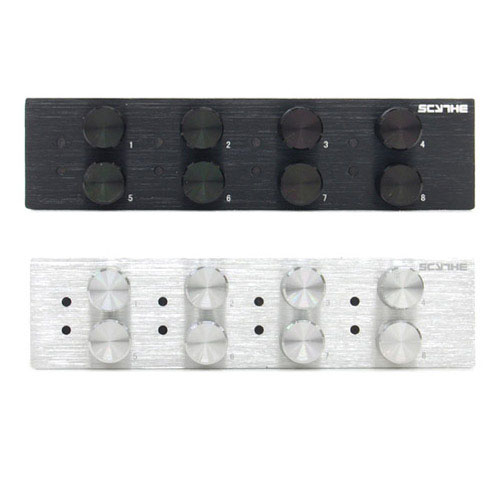

1 knob for each channel resulting to 8 knobs in total are configured into a simple and solid design to match any PC case visually. Comes in two colors, black or silver brushed aluminium front panel.
Specifications
Model Name:
Kaze Q8 8-Channel Fan Controller
Model-No.:
KQ02-BK-3.5 (Black)
KQ02-SL-3.5 (Silver)
Dimensions:
102 x 25 x 93 mm | 4.02 x 0.99 x 3.66 in (WxHxD)
Voltage Range:
5 V (±10%) - 12 V (±10%)
Fan Channels:
8 channels
Output Ampere:
max. 1 Ampere
Fan Speed Range:
0 - 9,900 rpm
Weight:
110 g / 3.88 oz
Accessory:

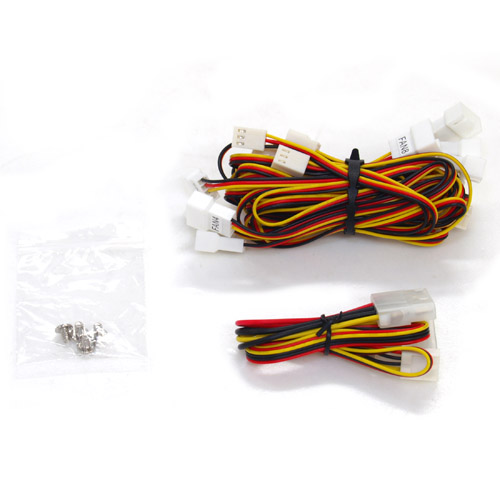

Unit (x1), Fan Cable (x8), Power Cable (x1), Screws (x4)
Features
8 channel fan controller mountable for 3.5” bay:
Adjusting knob for fan speed control.
Power LED for all channels.
Blue LED – when turned on. Connected fans and LED can be turned off.
Stops powering fan and LED by turning the corresponding knob to the left end.
Hairline polish aluminium front panel
