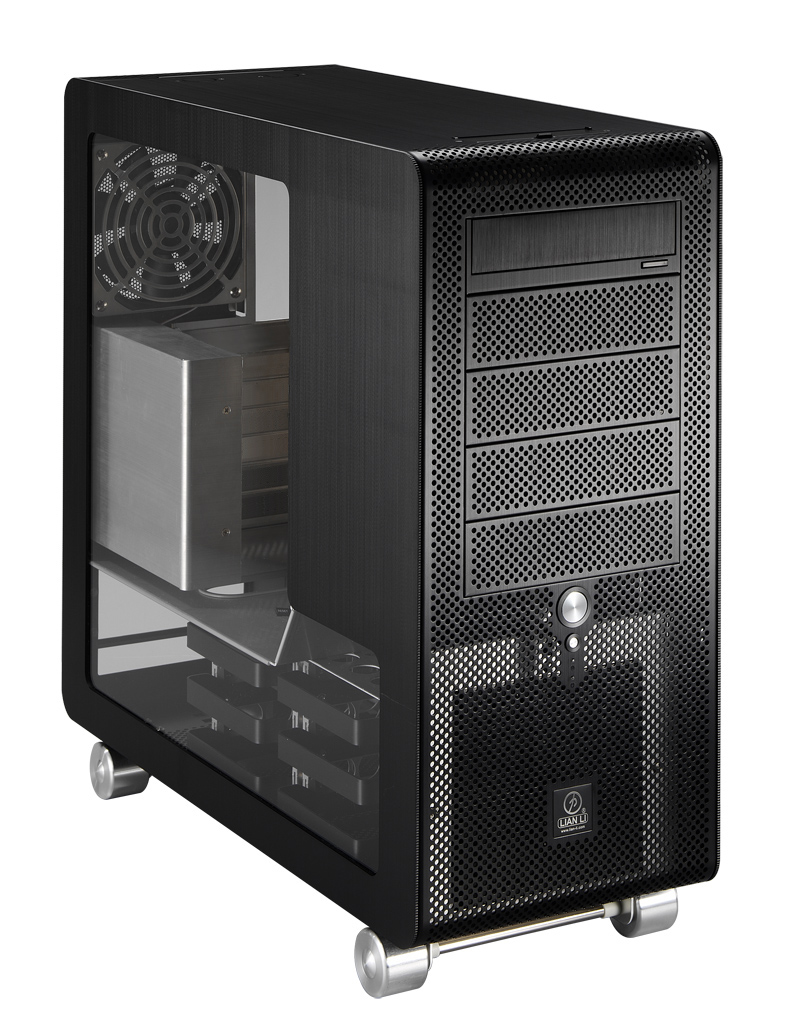

Lian Li PC Case PC-V1000Z Black/Aluminium
[518]

Каталожен №: ++518   Производител: Lian Li

Характеристики:

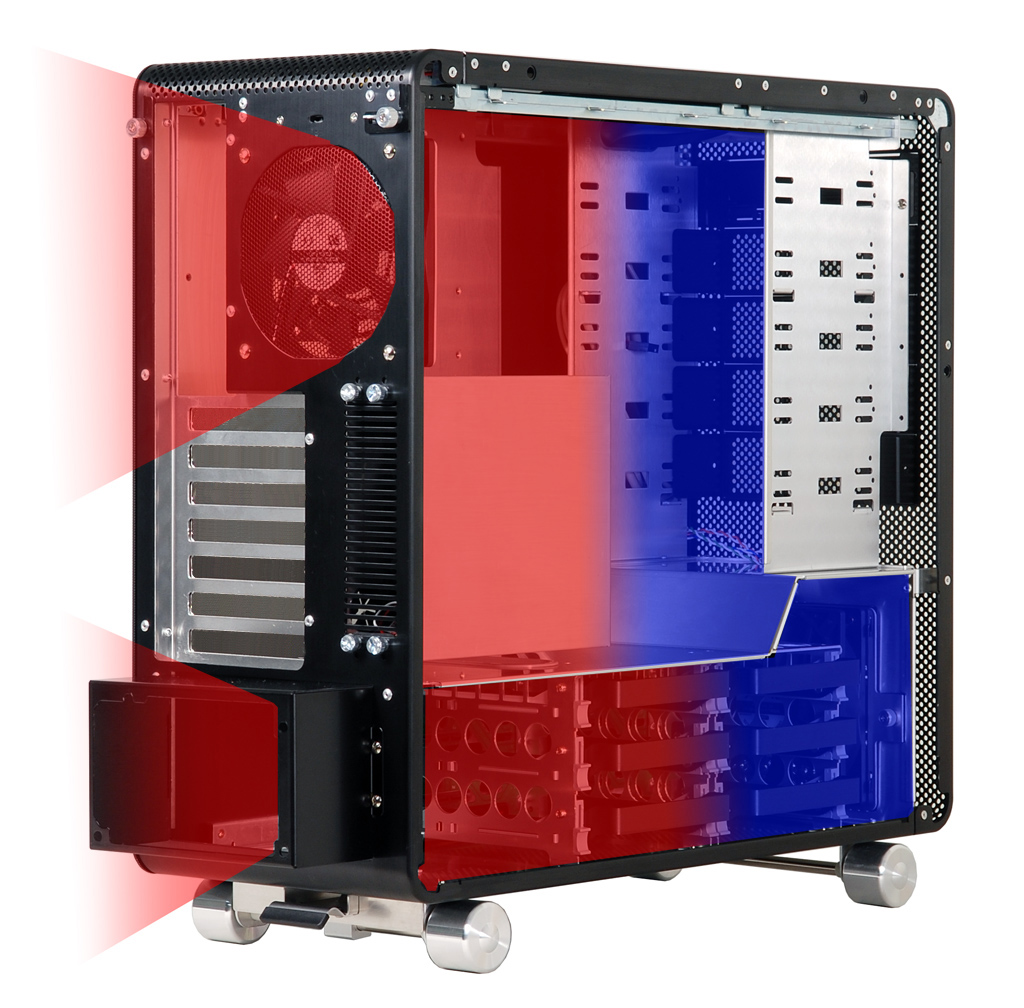

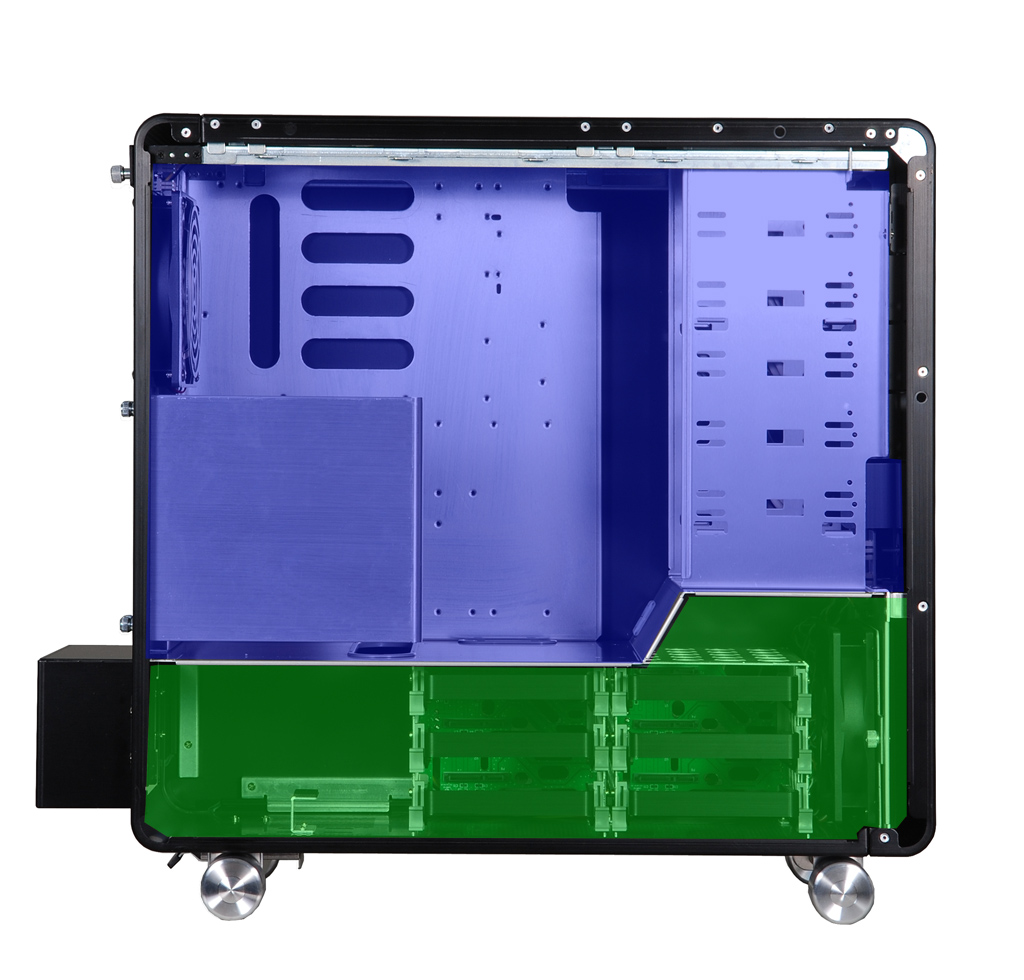

PC-V series chassis has two heat zones, one zone for motherboard, graphics card and optical drives, and one zone for 3.5” HDD and power supply unit. This is to separate the heat sources for a better thermal solution.
Lian Li fitted a 120mm intake fan on PC-V1000Z. The fan can output a high air flow volume, with a lower RPM to push the cold air through the HDD rack. It can be adjusted by the three-speed fan controller, factory setting being defaulted to the middle setting (1240RPM). The user can adjust the fan speed to suit.

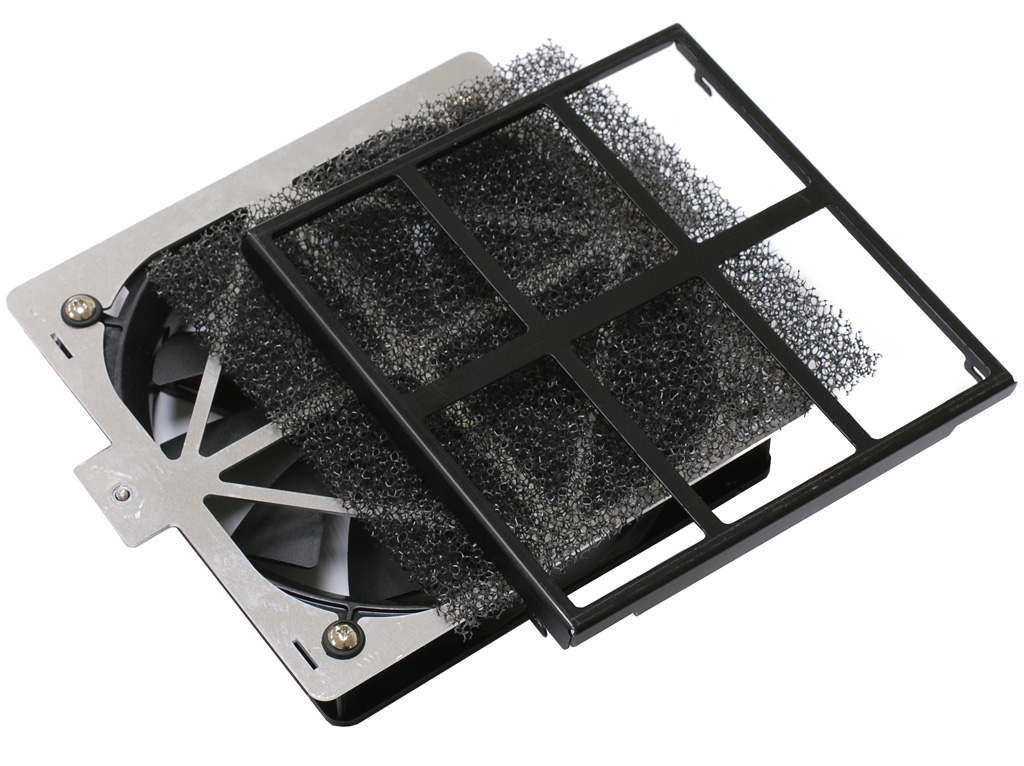

The case front is fitted with vented 5.25” bezels, allow the cold air to enter the chassis. There are washable air filters on the bezel to stop dust entering the chassis.

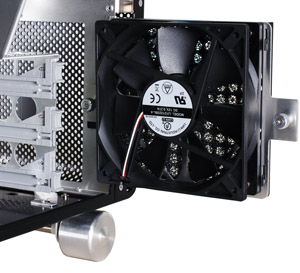

There is a 120mm exhaust fan at the rear to draw the hot air out, and improve the air flow inside the chassis. It can be controlled by the three-speed fan controller, factory default setting is to the Middle (1240RPM). The user can adjust to suit.

PC-V1000Z Features a three-speed fan controller - the user can adjust the fan speed to get the best balance between silence and cooling. Factory default setting is to the Middle Speed (12cm:1240RPM; 14cm:980RPM), user can adjust the fan speed to suit. (12cm:1020~1240~1500RPM; 14cm:800~980~1180RPM)

Download
Name	Type	Size	Release Date
User's manual		2.52mb	2008/9/9
