Longse Охранителна камера AHD Metal Dome Camera - 1.0MP/720p/3.6mm F2.0/IR 20m/Black - LIRDBAD100V
[LIRDBAD100V]

Каталожен №: ++2176   Производител: Longse

Model NO.

LIRDBAD100V

Video Output Mode

AHD

(CVBS Optional)

Camera

Image Sensor

OV9712S

DSP

NVP2431H

Image Resolution

720P (960H Optional)

Effective Pixels

1.0MP, 1280x720

TV System

PAL/NTSC

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

Sync System

Internal

S/N Ratio

  ≥50dB

Scanning System

Progressive Scan

Lens

Focus Length

Board Lens 3.6mm/F2.0

Focus Control

Fixed

Lens Type

Fixed

Pixels

2M Pixels

Auto Iris Support

NO

Night Vision

Infrared LED

￠5 (12µ) x 24PCS （14µ x 18PCS  Optional)

Infrared Distance

20M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

Auto (ICR) / Color / B&W

OSD Menu Language

YES

White Balance

Auto/Manual

Gain Control

Auto

Noise Reduction

3D NR

Picture Adjustment

YES

WDR

DWDR

OSD Support

Optional

General

Vandalproof Housing

YES, Metal

Lens Angle Adjustment

YES

Dual Voltage

NO

IR Cut Filter

YES

Heater

NO

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 500mA

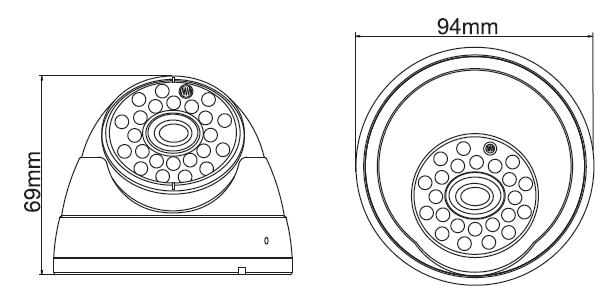

Dimension

￠94 x 69(H) mm

Weight

400g
