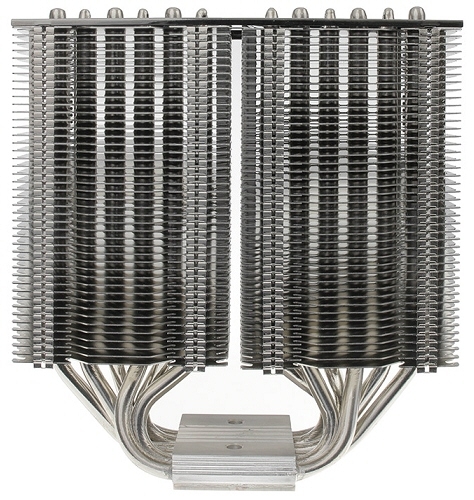

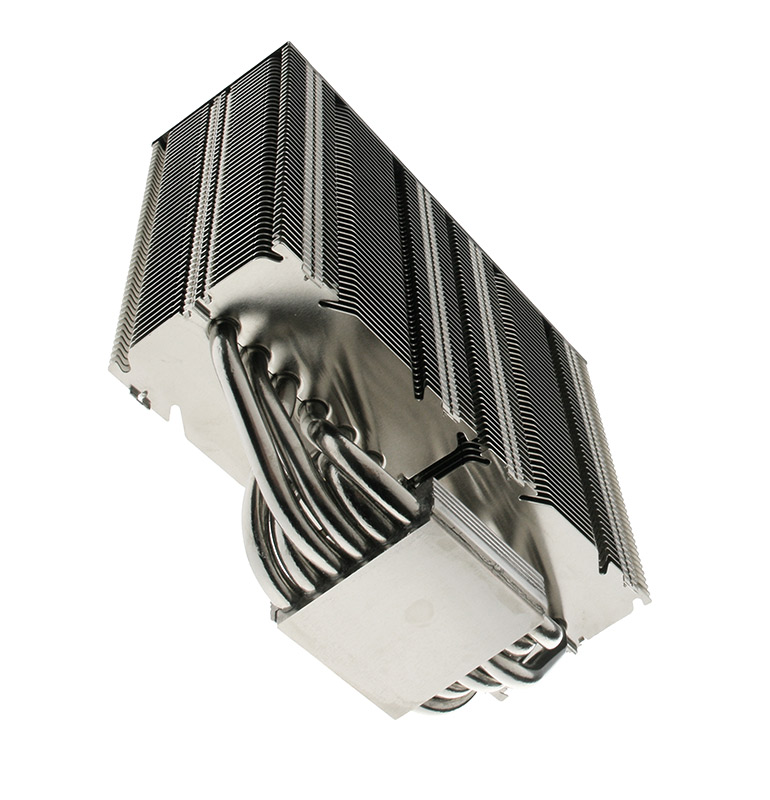

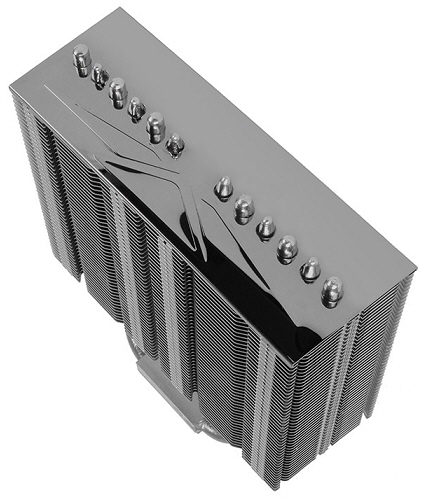

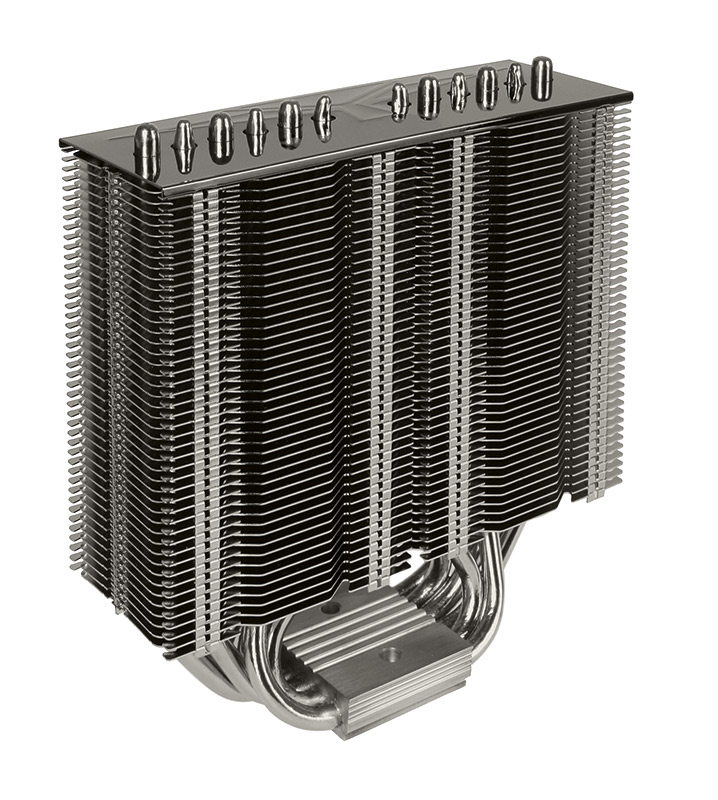

Armageddon
- Slim yet powerful for space confined syste.
- Ideal when equipped with 140mm x 25mm fans, also compatible with 120mm x 25mm fans.
- With dual fans installed, it is thinner than others with same setup.
- Works efficiently with low noise fans.
- Features the exclusive Armaclip? for fast, easy and secured fan installation.
- Six high quality, high performace heatpipes.
- Intel LGA 1156,1366 ; AMD AM2/AM3 - optional kit
Specification
Heatsink Dimension |
(L)144mm X (W)50mmX (H)160.3mm |
Heatsink Weight |
750g |
Heatpipe |
Ø 6mm X 6pcs |
Suggest Fan |
140mm X 140mm X25mm |
Suggest Fan Speed |
800~1200rpm |
Suggest Noise Level (dBA) |
Below 26dBA |
Air Flow |
57CFM |
Direction of heatsink |
Faces the rear exhaust system fan |
V=Compatible X=Incompatible |
Asus |
|
Gigabyte |
|
MSI |
|
P6T |
V |
GA-EX58-DS4 |
V |
Eclipse Plus |
V |
P6T Deluxe |
V |
GA-EX58-Extreme |
V |
Eclipse SLI |
X |
P6T Deluxe OC Palm |
V |
GA-EX58-UD3R |
V |
X58 Platinum |
X |
P6T Deluxe V2 |
V |
GA-EX58-UD4 |
V |
X58 Platinum SLI |
X |
P6TD Deluxe |
V |
GA-EX58-UD4P |
V |
X58 Pro |
X |
P6T SE |
V |
GA-EX58-UD5 |
V |
X58 Pro-E |
V |
P6X58D Premium |
V |
GA-EX58-UD3R SLI |
V |
Big Bang Fuzion |
X |
Rampage II Extreme |
V |
GA-X58A-UD3R |
X |
Big Bang Trinergy |
X |
Rampage II Gene |
V |
GA-X58A-UD5 |
X |
H55-GD65 |
X |
P6T WS Professional |
V |
GA-X58A-UD7 |
V |
P55-GD80 |
X |
P6T6 WS Revolution |
V |
GA-P55-UD3 |
V |
P55-GD85 |
V |
P6T7 WS Supercomputer |
V |
GA-P55-UD3L |
V |
P55-CD53 |
V |
Maximus III Extreme |
X |
GA-P55-UD3L-TPM |
V |
P55-GD55 |
V |
Maximus III Formula |
V |
GA-P55-UD3P |
V |
P55-GD65 |
X |
Maximus III Gene |
V |
GA-P55-UD3R |
V |
MSI 890FXA-GD70 |
X |
P7H55 |
V |
GA-P55-UD4 |
X |
|
|
P7H55-V |
V |
GA-P55-UD4P |
X |
|
|
P7H57D-V EVO |
V |
GA-P55-UD5 |
X |
|
|
P7P55 LX |
V |
GA-P55-UD6 |
X |
|
|
P7P55D |
V |
GA-P55-UD6-C |
X |
|
|
P7P55D Deluxe |
V |
GA-P55-US3L |
V |
|
|
P7P55D EVO |
V |
GA-P55-USB3 |
V |
|
|
P7P55D LE |
V |
GA-P55A-UD3 |
V |
|
|
P7P55D Premium |
V |
GA-P55A-UD3P |
V |
|
|
P7P55D PRO |
V |
GA-P55A-UD3R |
V |
|
|
P7P55D-E |
V |
GA-P55A-UD4 |
X |
|
|
P7P55D-E Deluxe |
V |
GA-P55A-UD4P |
X |
|
|
P7P55D-E EVO |
V |
GA-P55A-UD5 |
X |
|
|
P7P55D-E LX |
V |
GA-P55A-UD6 |
X |
|
|
P7P55D-E Premium |
V |
GA-P55A-UD7 |
X |
|
|
P7P55d-E Pro |
V |
GA H55M USB3 |
X |
|
|
SABERTOOTH 55i |
V |
|
|
|
|
P7P55 WS Supercomputer |
X |
|
|
|
|
* In order for the fan to work with the ArmaClip, the width of the frame must be less than 1.5mm. For example, Scythe Kaze Maru 140mm Case Fan would not work with the ArmaClip.
