Характеристики:

The third edition of the Ninja CPU cooler comes along with a revised high-performance design. Ninja 3 CPU cooler has eight u-shaped heat pipes constructed and the optimized fin structure named as M.A.P.S. (Multiple Airflow Pass-Through Structure). The airflow generated by the Scythe Slip Stream 120 PWM Adjustable fan can effectively cool the heatsink. User can choose the fully automatic PWM feature fan speed control or alternatively adjust the PWM band range for tuning purposes. Several features make this cooler the perfect solution for silent users and overclockers!  F.M.S.B.2 back-plate system provides a safe cooler mounting, guaranteed !

Specifications

Model Name:
Ninja 3 CPU Cooler

Model No.:
SCNJ-3000

Manufacturer:
Scythe Co., Ltd. Japan

Compatibility:
Intel®:
Socket T / LGA775
Socket LGA1156
Socket LGA1366

AMD®:
Socket 754
Socket 939
Socket AM2
Socket AM2+
Socket AM3
Socket 940

Dimensions:
120 x 120 x 160 mm / 4.72 x 4.72 x 6.30 in

Fan Dimensions:
120 x 120 x 25 mm / 4.72 x 4.72 x 0.98 in

Fan Speed Max. Band:
740 (±25%) - 1,900 rpm (±10%)
Fan Speed Min. Band:
470 (±30%) - 1,340 rpm (±10%)

Noise Level:
Max. Band 9.8 - 37.0 dBA
Min. Band: 7.05 - 27.3 dBA

Air Flow:
Max. Band 37.15 - 110.31 CFM = 63 - 187 m³/h
Min. Band: 23.0 - 76.53 CFM = 39 - 130 m³/h

Weight Included Fan:
1040 g / 36.68 oz.

Material of Base Plate:
Nickel-plated copper (more information)

Features

M.A.P.S. (Multiple Airflow Pass-Through Structure)
The developed M.A.P.S. (Multiple Airflow pass-through structure) is a completely
new fin structure, where the airflow generated by the Scythe Slip Stream 120
PWM Adjustable fan. Ninja 3 fanless performance could be improved up to 7%
compare to the former model by using the M.A.P.S. in combination with eight
heatpipe high-performance design.

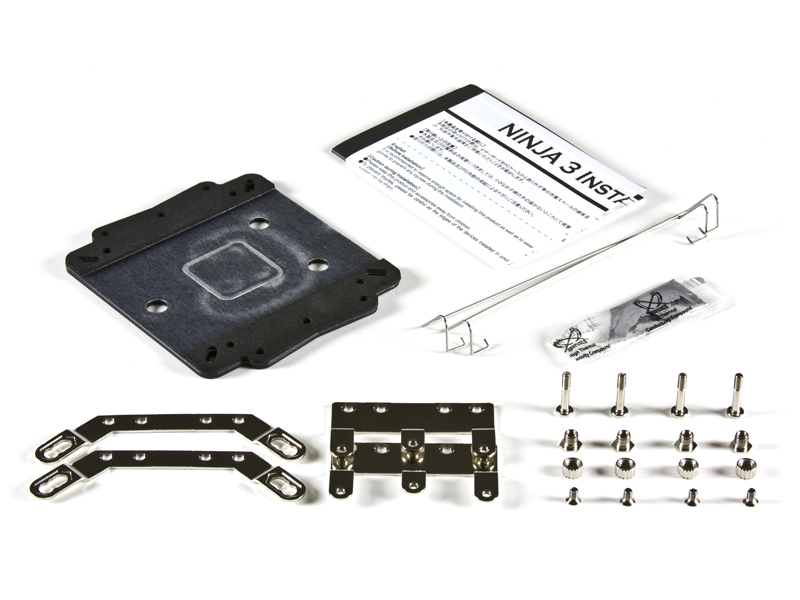

F.M.S.B.2. (Flip Mount Super Back-Plate 2)
Improved version of F.M.S.B (Flip Mount Super Back-Plate), the compatibility has
been maximized as well as achieving the solid mounting of the cooler onto the
motherboard. Scythe Ninja 3 provides broad socket compatibilities for AMD &
Intel platform.

Slip Stream 120 PWM Adjustable
Equipped with Scythe original Slip Stream 120mm PWM Adjustable fan, it allows a user to choose the fully automatic PWM feature fan speed control or alternatively adjust the PWM band range to fulfill demands from silent to high performance users!
