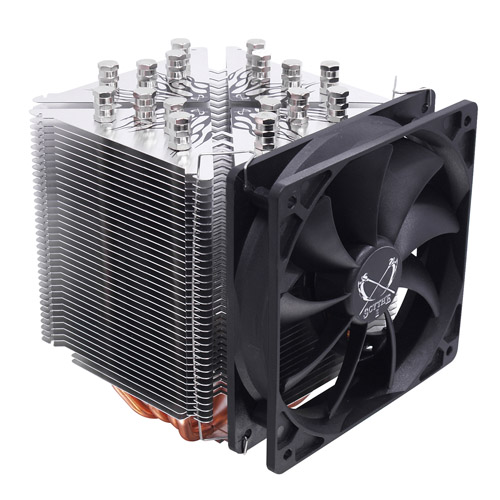

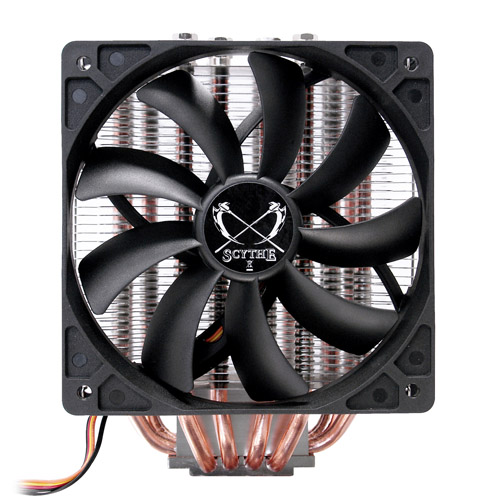

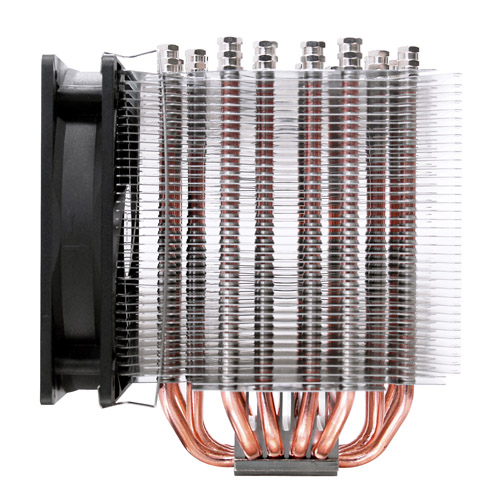

The third edition of the Ninja CPU cooler comes along with a revised
high-performance design. Ninja 3 CPU cooler has eight u-shaped heat
pipes constructed and the optimized fin structure named as M.A.P.S.
(Multiple Airflow Pass-Through Structure). The airflow generated by the
Scythe Slip Stream 120 PWM Adjustable fan can effectively cool the heat-sink. User can choose the fully automatic PWM feature fan speed
control or alternatively adjust the PWM band range for tuning purposes.
Several features make this cooler the perfect solution for silent users
and overclockers! For LGA2011 users attachment screws are included,
for other supported sockets F.M.S.B.4 Back-Plate system provides a safe
cooler mounting, guaranteed!
Model Name:
Ninja 3 Rev. B
Model Number:
SCNJ-3100
Compatibility:
Intel®:
Sockel T / LGA775
Sockel LGA1155
Sockel LGA1156
Sockel LGA1366
Sockel LGA2011
AMD®:
Socket 754
Socket 939
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket FM1
Socket 940
Dimensions:
120 x 120 x 160 mm / 4.72 x 4.72 x 6.30 in
Weight Including Fan:
1080 g / 38.1 oz.

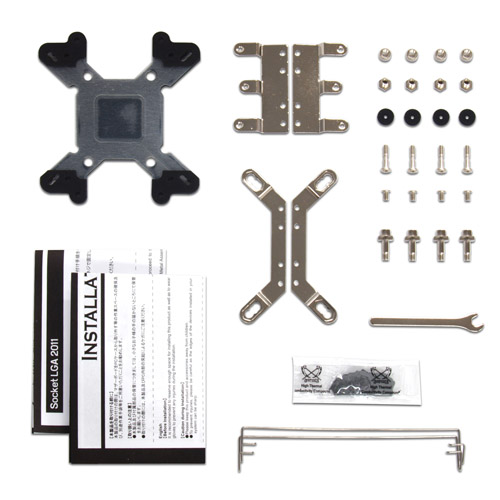

Accessory:
Thermal Grease, User Manual

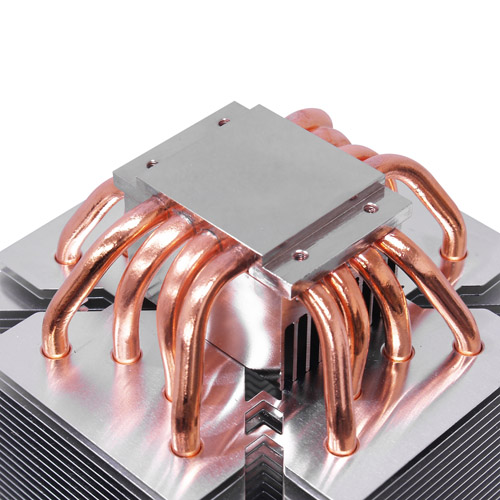

Material of Base Plate:
Nickel-plated copper (more information)
Fan-Specifications
Model Name:
Slip Stream 120 PWM Adjustable
Model No.:
SY1225SL12HPVC
Fan Dimensions:
120 x 120 x 25 mm / 4.72 x 4.72 x 0.98 in
Fan Speed Max. Band:
740 (±25%) - 1,900 rpm (±10%)
Fan Speed Min. Band:
470 (±30%) - 1,340 rpm (±10%)
Noise Level:
Max. Band 9.8 - 37.0 dBA
Min. Band: 7.05 - 27.3 dBA
Air Flow:
Max. Band 37.15 - 110.31 CFM = 63 - 187 m³/h
Min. Band: 23.0 - 76.53 CFM = 39 - 130 m³/h
Input Power:
7,19 W
Input Current:
0,60 A
Voltage Range:
12 V

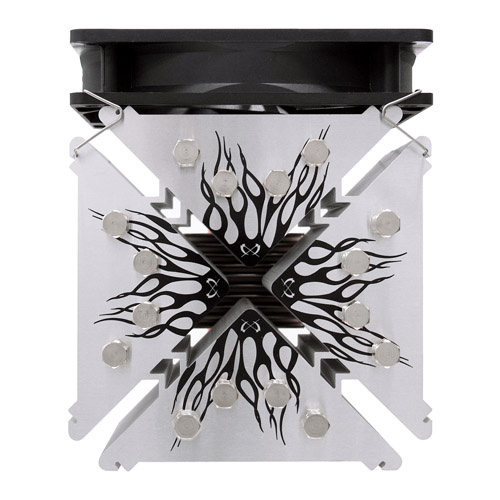

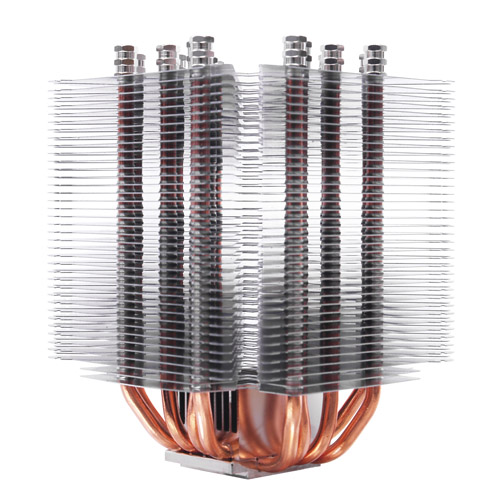

M.A.P.S. (Multiple Airflow Pass-Through Structure)
The
developed M.A.P.S. (Multiple Airflow pass-through structure) is a
completely new fin structure, where the airflow generated by the Scythe
Slip Stream 120 PWM Adjustable fan. Ninja 3 fanless performance could
be improved up to 7% compare to the former model by using the M.A.P.S.
in combination with eight heatpipe high-performance design.

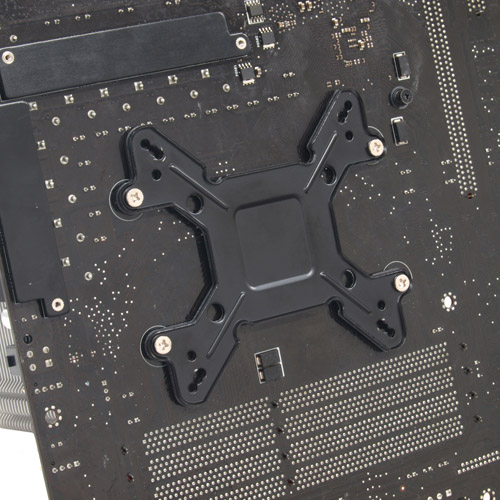

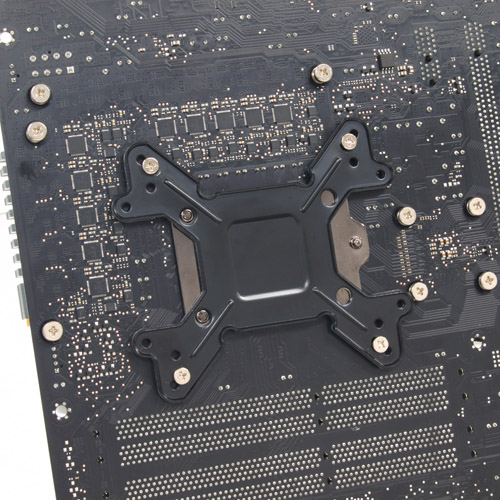

F.M.S.B.4 (Flip Mount Super Back-Plate 4)
The
4th generation version of F.M.S.B (Flip Mount Super Back-Plate)
provides more versatility and higher compatibility. The light, slim
structure with its' many notches makes it possible for the user to
enjoy almost unlimited compatibility with common AMD and Intel
Motherboards.

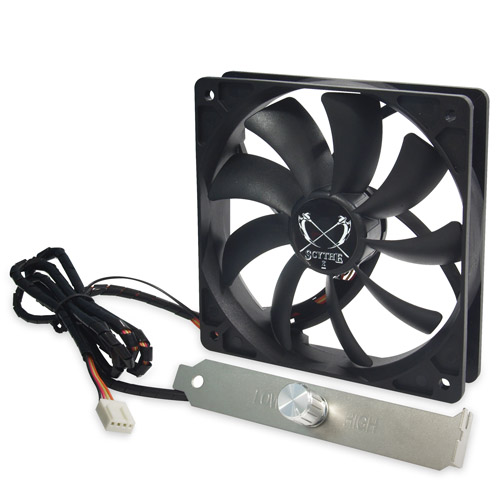

Slip Stream 120 PWM Adjustable
Equipped
with Scythe original Slip Stream 120mm PWM Adjustable fan, it allows a
user to choose the fully automatic PWM feature fan speed control or
alternatively adjust the PWM band range to fulfill demands from silent
to high performance users!

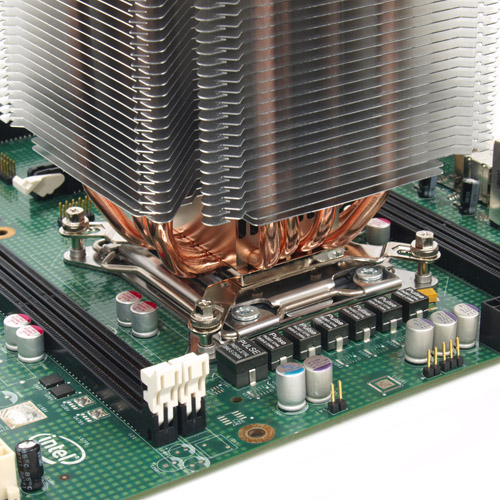

Compatibility with LGA2011
Revision B of Ninja 3 is compatible with Intel LGA2011 sockets (socket R). Additional mounting screws are provided.
