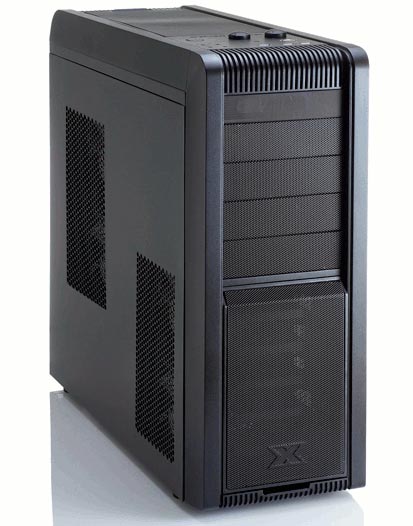

Xigmatek Case PANTHEON - black
[1003]

Каталожен №: ++1003   Производител: Xigmatek

Характеристики:

Pantheon – Rome’s temple of gods. Big and impressive by a great architecture and dedicated engineering for all your hardware, Xigmatek proudly presents our latest exclusive chassis – the Pantheon. Decent design combined with features such as our tool free design for the 5.25” bays, 6 hot swap hdd cages including anti vibration, black interior and exterior, usb 3.0, 2 fan controllers, last but not least also the radiator support of 240/280mm radiator on the top. Get yourself a piece of ancient experience and flair and start the combat with Pantheon!

Overview

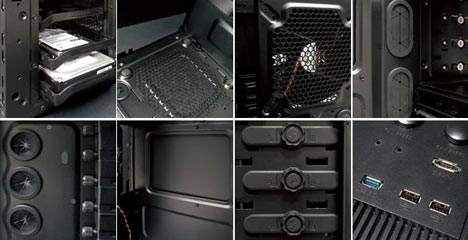

Features

• Two 2.5"/3.5" front-opened hot-swappable HDD trays.
• USB3.0 super-speed port and two fan speed control knobs on the top panel.
• Both side screw-less ODD holders with anti-vibration rubbers.
• Thumb screws for add-on card easy installation.
• Preinstalled 140mm rear black blades fan with white LED and LED is on/off switchable.
• Preinstalled two 120mm side blow HDD black blades fans with white LED and LED is on/off switchable.
• 240/280mm radiator, or two 12/14cm fan, or one 170mm fan available on the top panel.
• Big back window for CPU cooler backplate easy installation.
• Back holes and clips for cable management.
• Anti-vibration rubber and bottom dust filter for PSU.

Specification

Product Name   PANTHEON   Product Number   CPC-T46DB-U01/U02/U03/U04   Dimension   206(W) x 543(H) x 500(D) mm (8.1*21.4*19.7 inches)   Drive Bay   External x 4 with both side tool-free holders with anti-vibration rubbers.   Expansion Slot   7 slots, 330mm free length for long card.(Thumb screws)   Motherboard Support   ATX, Micro ATX  (with cooler blackplate easy installation window)   Power Supply   Standard P/S2 ATX/EPS power supply unit 1. Intake airflow hole with dust filter. 2. Available for face upward and downward installation. 3. Within anti-vibration rubber.   Cooling System   Air-cooling Front Fan: Pre-installed 120mm white LED with black blades x 2 on HDD cage and LED is on/off switchable.(Max. four 120mm fans on HDD cage both side.) Rear Fan: Pre-installed 140mm white LED with black blades x 1 and LED is on/off switchable.(120mm fan is available) Side Fan:  Pantheon-Original: Optional 120/140mm fan x 2  Pantheon-Window: None. Bottom Fan: Optional 120/140mm fan x 1 (with dust filter) Top Fan: Optional 120/140mm fan x 2 or 170mm fan*1. Fan Speed Control: Six fan speeds are adjustable synchronously by two knobs on top panel.      Water-cooling Water pipe holes x 4 (with rubber cover) Available for 240/280mm radiator on the top. Radiator size limitation inside of top panel : (L)290*(W)130*(H)42mm    I/O Panel   Top Panel: Power switch, Reset switch, USB3.0*1, USB2.0 x 2, e-SATA x 1, Audio in/out x 1 (HD Audio), two knobs of fan controller.
