| Heat-pipe Direct Touch |
| Perfect combination of 4pcs Φ8mm performing Heat-pipes, H.D.T. technology and advanced Raised-point on fins, HDT-D1284 creates an outstanding performance and exceeds other coolers. With Anti-vibration rubber, light material fin design, silent but powerful 120mm fan and Push-pin/Clip for Intel & AMD, HDT-D1284 is user friendly, easy to install, reliable and excellent performing. |
PRODUCT OVERVIEW
|
▎ |

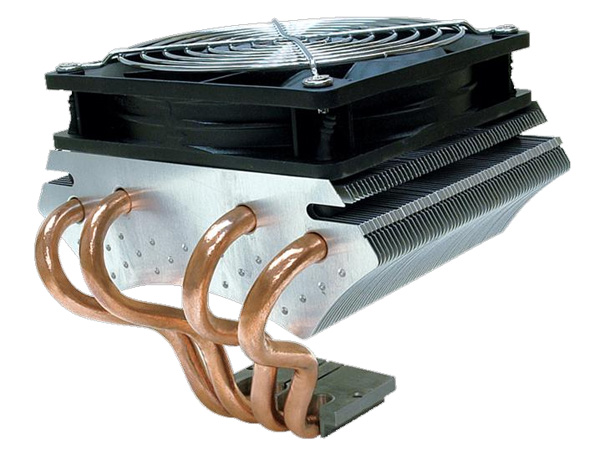

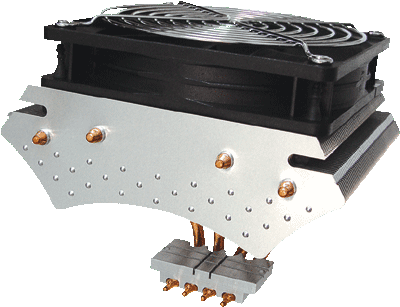

An outstanding performance air cooler with heat-pipe direct touch CPU, HDT-D1284 creates most efficient heat conduction and heat-pipe design to cool down components around CPU. |
|
▎ |
With anti-vibration rubber for fan and 3 in 1 application retention module design, HDT-D1284 provides users not only easier and quicker installation, but also lowest noise level. |
|
▎ |

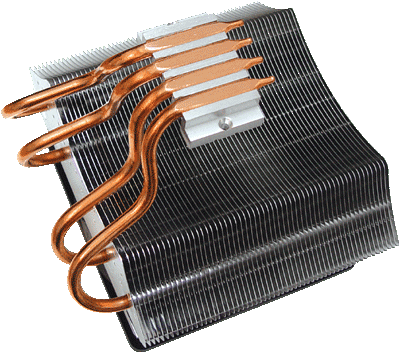

Integrate particular raised-point on fin and special fin shape design to create most efficient air convection and largest dissipating area. |
|
▎ |
HDT-D1284 combines 120mm PWM fan, anti-vibration rubber, particular raised-point design, 4pcs Φ8 heat-pipe and 3 in 1 application retention module. |
FEATURES
|
▎ |
H.D.T. (Heat-pipe direct touch) technology. |
|
▎ |
Anti-vibration rubber design. |
|
▎ |
Special fin shape design. |
|
▎ |
Particular raised-point on fin design. |
|
▎ |
Efficient air flow to cool down components around CPU. |
|
▎ |
4pcs Φ8mm high performance heat-pipe. |
|
▎ |
High performance & easy installation. |
|
▎ |
120mm highly efficient PWM fan. |
|
▎ |
3 in 1 application: LGA775 push-pin/K8 & AM2 tool-less clip. |
|
|

SPECIFICATION
|
|
‧ HDT-D1284 |
|
Product Number |
‧ CAC-DXHH4-U03 |
|
Dimension |
‧145(W) x 150(H) x 134(D) mm |
|
Heat Sink |
‧ Fin Material
|
Aluminum Alloy |
| ‧ Heat-pipe |
Φ8 x 4 mm |
|
Fan |
‧ Dimension |
120(W) x 120(H) x 25(D) mm |
| ‧ Voltage Rating |
12V |
| ‧ Speed |
800~1500 R.P.M. |
| ‧ Bearing Type |
Rifle Bearing |
| ‧ Air Flow |
56.3 CFM |
| ‧ Air Pressure |
1.57 mmH2O |
| ‧ Life Expectance |
40,000 hrs |
| ‧ Noise Level |
26.4 dBA |
| ‧ Connector |
4 Pin with PWM |
|
Weight
|
‧ 667g (w/fan) |
|
Thermal Resistance |
‧ 0.14 ℃/W |
|
Application |
‧ All Intel Socket LGA 775 CPU
‧ Core 2 Extreme / Quad / Duo
‧ Pentium Extreme Edition / D
‧ Celeron D
‧ All AMD Socket AM2 / 754 / 939 / 940 CPU
‧ Athlon 64 / FX / X2 / Opteron / Sempron
| |
APPLICATION
|
▎ |
All Intel Socket 775 CPU |
|
▎ |
Core 2 Extreme / Quad / Duo |
|
▎ |
Pentium Extreme Edition / D |
|
▎ |
All AMD Socket AM2 / 754 / 939 / 940 CPU |
