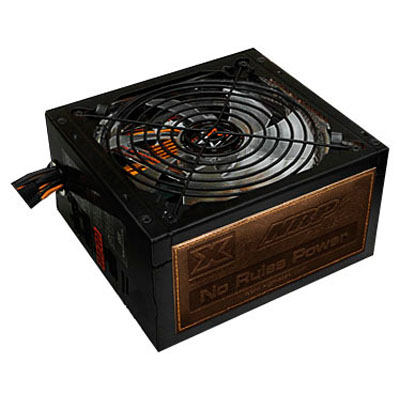

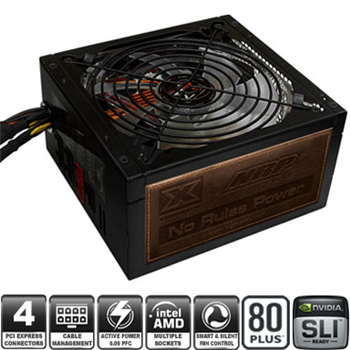

| No Rules Power, NRP-MC751, complies with the newest Intel standard ATX 12V V2.2 and SSI standard EPS 12V V2.91 simultaneously. The advanced features, including bead core protection fro PCI-e connectors, worry-free power failure detector and an over 80% efficiency rating, enable NRP-MC751 to the stable and clean power. No Rules Power proves to be a spectacular performer, and full product line also provides various choices for different kinds of consumers. |
Overview
 |
Perfectly balanced high Power with all detail connectors to fulfil every customer need, NRP-MC Series supports ATX 12V Vers. 2.2, EPS 12V Vers. 2.92, QUAD SLI Systems and AMD/INTEL QUAD CORE Platforms. |
| |
Outstanding Performance (over 87% Efficiency), covering all features, cable management and nice outlook design match perfectly to PC Enthusiasts imaginations. |
| |
With 140mm powerful but silent fan protecting from Overheating, easy to install and absolutely user-friendly, NRP-MC Series will run your PC stable and save cost by high efficiency and less power consumption. |
Features
| |
Multiple +12V Output
Enhanced +12V current capability broadens utilization possibilities. |
| |
High Efficiency (up to 80%)
Optimal solution for lower energy consumption, noise, and heat. |
| |
Active Power Factor Correction (0.99 PFC)
Reduce line loss & power distortion. |
| |
Double Forward Circuit Design
Increase the reliability and efficiency of power. |
| |
Universal AC Input(Full Range)
Plug & run safely anywhere in the world. |
| |
Smart and Silent Fan Control
Smart thermal control to balance noise and cooling. |
| |
13.5(14)cm Cooling Fan
Maximum airflow, minimum noise level and extra durable life. |
| |
PCI-Express Connector
Support new PCI-E connectors for Video Card. |
| |
Patented Easy Swap Connector
Unplug connectors easily & quickly. |
| |
Cable Management Swap Connector
Improve messy cable problem.
With cable management swap connector. |
| |
PC Power Supply Design Guide
Support ATX / BTX / EPS. |
| |
Multiple Platforms
Capability for Intel / AMD platforms. |
| |
Output Protection
Completed protection OVP / OCP / OPP / UVP / SCP / OTP. |
| |
Mesh Sleeve Cable Design
Make cable management easier & airflow efficient. |
| |
Honey Comb Structure |
| |
Japan Electric Capacity | |
 |
 |
 |
 |
| 14cm Cooling Fan |
| |
 |
|
| Smart & Silent Fan Control |
| |
 |
|
| PCI-E Connector |
| |
 |
|
| Patented Easy Swap |
| |
 |
|
| Cable Management |
| |
 |
|
| Japan Electric Capacity |
| |
 |
|
| Honey Comb Structure | |
Specification
| |
|
Product Name |
NRP-MC751 |
|
Product Number |
CPH-0750U-C01 |
|
Power |
750W |
|
Dimension |
150mm(L) x 160mm(W) x 86mm(H) |
|
Switches |
ATX Logic on-off additional power rocker switch |
|
Power Factor |
PF > 0.9 |
|
Cooling System |
14cm LED fan, Max. 2300RPM±10% |
|
Noise Level |
16dBA±10% at 1300RPM |
|
Efficiency |
Up to 87% |
|
Hold-up Time |
16 ms |
|
INPUT |
|
Input Voltage |
100-240VAC |
|
Input Frequency Range |
47~63Hz |
|
MTBF |
120,000 hrs minimum (at 25℃) |
|
Input Current |
100Vac/13A max |
|
OUTPUT |
| |
Max/Min |
Regulation *1 |
Ripple & Noise *2 |
Output |
|
+5V |
28A/0.5A |
+5, -4% |
50mV |
180W |
|
+3.3V |
30A/0.5A |
+5, -3% |
50mV |
|
+12V1 |
18A/1A |
+5, -4% |
120mV |
720W |
|
+12V2 |
18A/1A |
+5, -4% |
120mV |
|
+12V3 |
18A/1A |
+5, -4% |
120mV |
|
+12V4 |
18A/1A |
+5, -4% |
120mV |
|
-12V |
0.8A/0A |
+9, -5% |
120mV |
9.6W |
|
+5Vsb |
3.5A/0A |
+5, -3% |
50mV |
15W |
|
Total Power |
750W |
+5Vsb operate at 3.0A max load base on PS-ON mode.
If PS-OFF +5Vsb only operate at 3A max load.
Add 0.1µF capacitors across output terminal during ripple & noise test. |
|
Environment |
|
Operating Temp. |
10℃ to 50℃ |
|
Storage Temp. |
-20℃ to 70℃ |
|
Operating Humidity |
20% to 90%, non-condensing |
|
Storage Humidity |
5% to 95%, non-condensing |
|
Protection |
| |
DC Rail |
Trigger Point/Range |
|
Over Voltage Protection |
+3.3V trip point |
4.5 Vmax |
| +5.0V trip point |
7.0 Vmax |
| +12.0V trip point |
15.6 Vmax |
|
Over Current Protection |
Not over 240VA for every output voltage |
|
Short Protection |
All output to GND | | |
