Arctic Accelero S1 PLUS Turbo Module
- PN
- 1374
- Каталожен №
- 1374
Производител: Arctic
|

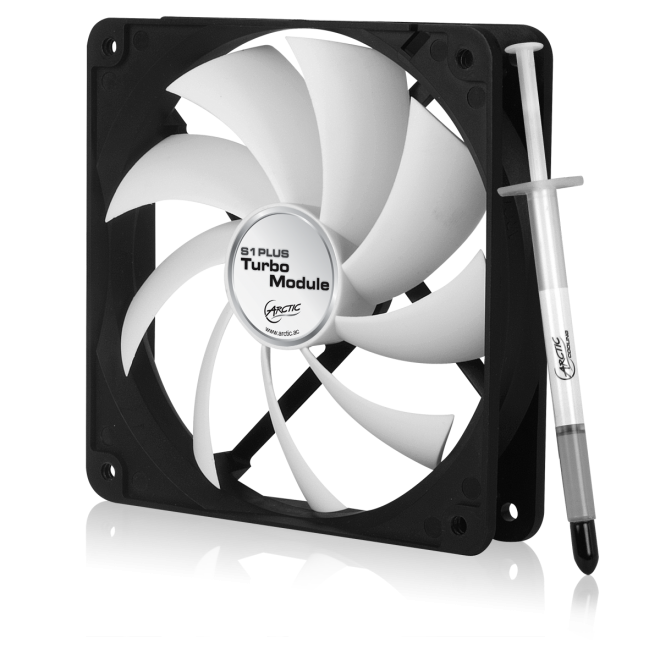

The S1 PLUS Turbo Module is a powerful add-on fan for the Accelero S1 PLUS. With operation at low noise level, the S1 PLUS Turbo Module massively boosts the cooling performance of the passive cooler which enables the combo to use on high-end VGA cards. | ||
|

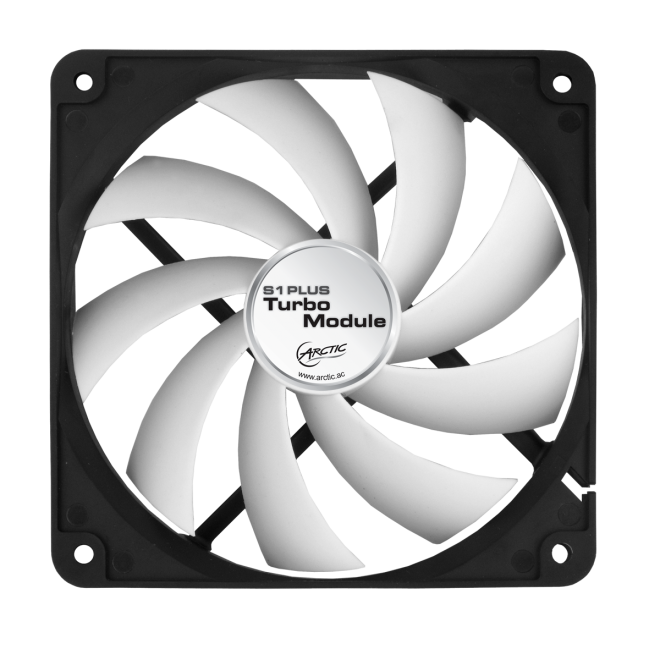

Massive Cooling Enhancement Thanks to the 120mm fan with maximum spinning speed at 1,000 RPM, the S1 PLUS Turbo Module boosts up the cooling capacity of the Accelero S1 PLUS, which is adequate to cool high-end VGA cards including AMD Radeon HD 6870. Cooling Performance at AMD Radeon HD 7770: Accelero S1 PLUS + S1 PLUS Turbo Module (at 1,000 RPM) Accelero S1 PLUS 3-slot Generic Cooler (at 2,500 RPM) Ambient temperature: 25oC | |
|
Extreme Silence The S1 PLUS Turbo Module generates only 0.25 Sone in operation, which can hardly be heard even the fan is placed neighboring your ears. Noise Level on AMD Radeon HD 7770 Accelero S1 PLUS + S1 PLUS Turbo Module (at 1,000 RPM) Accelero S1 PLUS 0 Sone 3-Slot Generic Cooler (at 2,500 RPM) |
| |
|

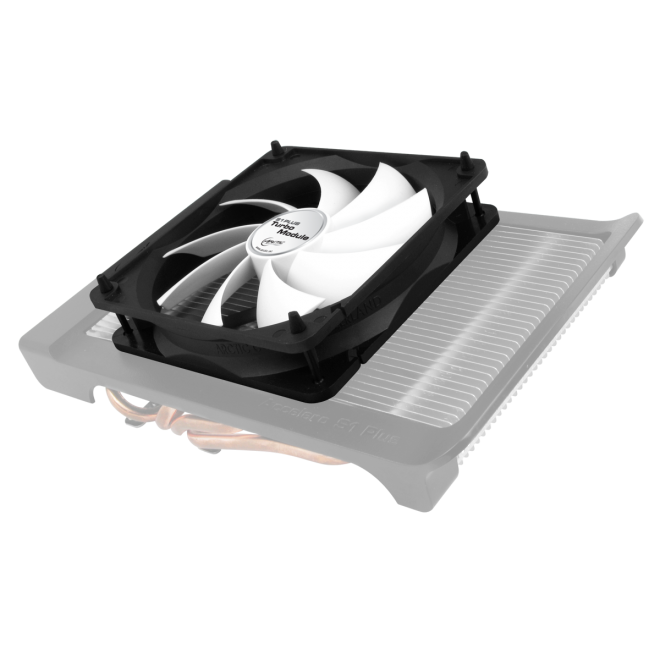

Flexible Rubber-Pin Mounting With the flexible rubber-pin mounting, the S1 PLUS Turbo Module can be applied on both Accelero S1 PLUS and Accelero S1 Rev.2* to boost the cooling performance. *Click here to view the S1 PLUS Turbo Module installation manual on Accelero S1 Rev.2. | ||
Technical Data
| Fan (mm) | 120 mm , 620 RPM / 1,000 RPM |
|---|---|
| Bearing | Fluid Dynamic Bearing |
| Noise Level | 0.25 Sone |
| Current (per fan) / Voltage (per fan) | 0.07A, 7V (620 RPM) / 0.12A, 12V (1,000 RPM) |
| Power Consumption | 0.49W (620 RPM) / 1.44W (1,000 RPM) |
| Product Dimensions (L x W x H) | 120 (L) x 120 (W) x 28.5 (H) mm |
| Net Weight | 108 g |

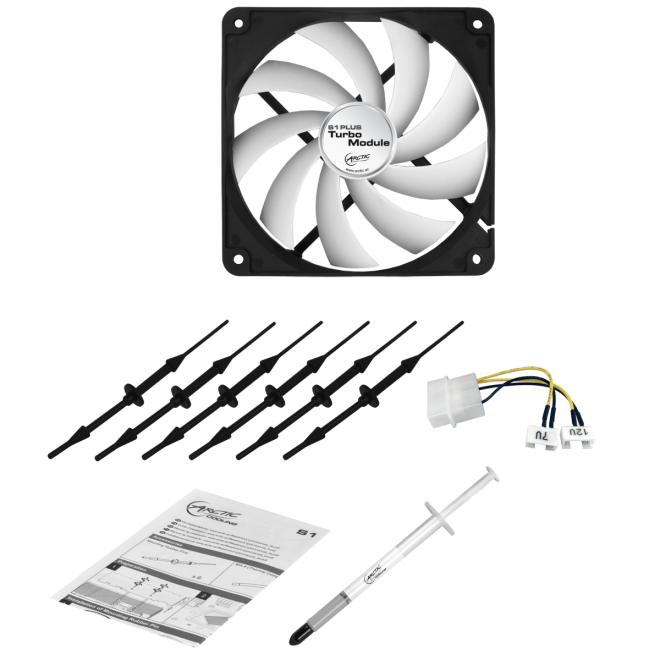

| Accessories | |
| Mounting Rubber Pin | 6 pcs |

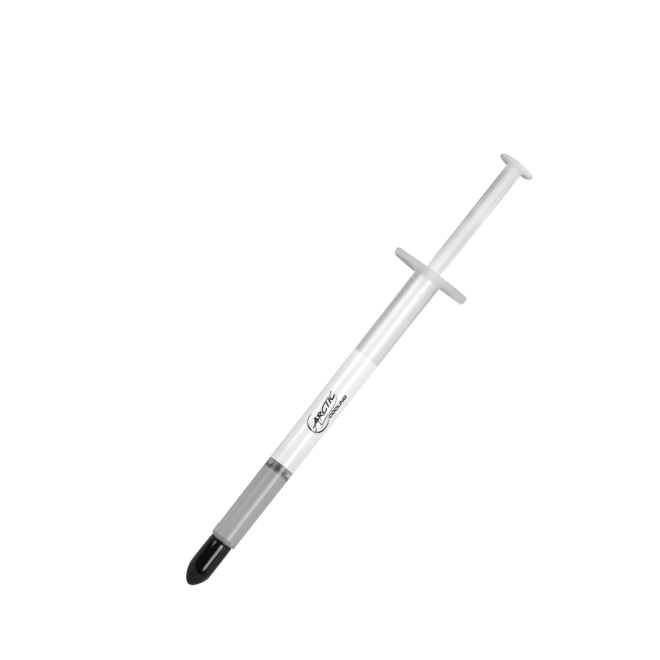

| MX-4 (Thermal Compound 0.5 g) | 1 tube |
| 4-Pin Fan Power Adapter | 1 pc |
| Limited Warranty | 6 years |
| Packaging Dimensions (L x W x H) | 170 (L) x 185 (W) x 36.5 (H) mm |
| itemnumber | DCACO-V7100001-BLA01 |
| UPC | 0872767004924 |
| Gross Weight | 0.55 kg |
