Introduction

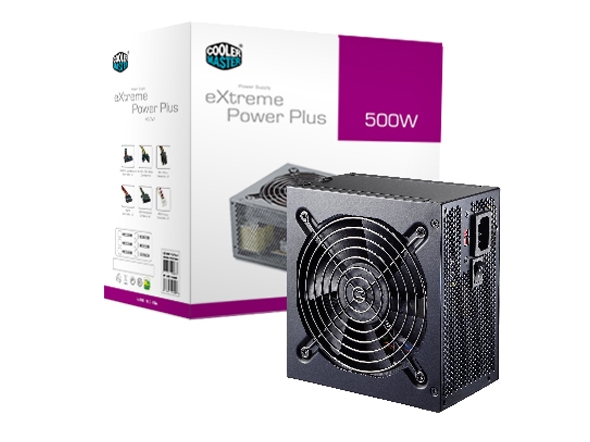

Extreme series packs a powerful punch by delivering stable streams of power through dual +12v outputs. Our Extreme power supplies provides over 70% efficiency at typical loading and meet Energy Star and Blue Angel requirements. With a life-time of 100,000 hours and protection for OVP/OCP/OPP/SCP, these power units are made to last.
Features
1. Compliance with the newest Intel standard ATX 12V V2.3
2. More than 70% better efficiency at typical load operation
3. High reliability (MTBF > 100,000 hrs)
4. Green power design to meet Energy Star and Blue Angel requirements
5.?Multiple protection design(OVP/OCP/OPP/SCP)
6. Support dual +12V1 and +12V2 outputs for higher power usage
7-Two-year warranty
Specifications
| Model |

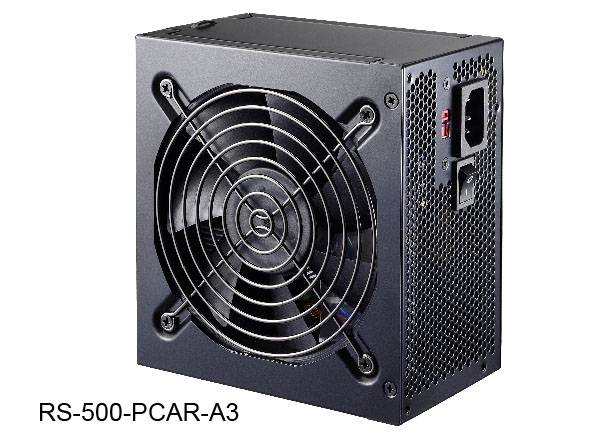

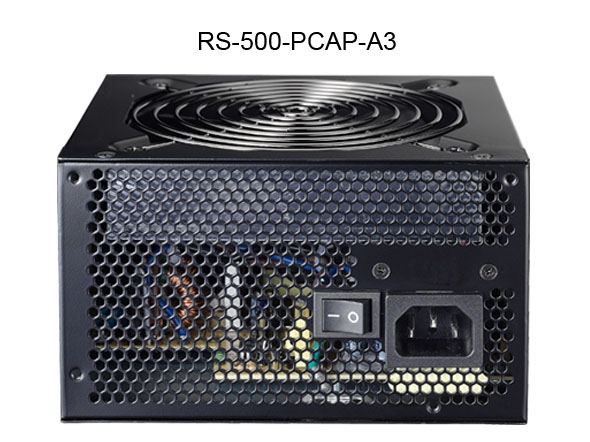

RS-500-PCAR-A3 / RS-500-PCAP-A3 |
|
| Type |
Intel Form Factor ATX 12V V2.3 |
|
| Dimension (W / H / D) |
150 x 86 x 140 mm |
|
| Input Voltage |
RS-500-PCAR-A3 / 90 ~132V/180~264V (Selectable)
RS-500-PCAP-A3 / 180~264 V |
|
| Input Current |
RS-500-PCAR-A3 : 10A @ 115Vac / 6A @ 230Vac
RS-500-PCAP-A3 : 6A @ 230Vac |
|
| Input Frequency Range |
47 ~ 63 Hz |
|
| PFC |
None PFC: RS-500-PCAR-A3
Passive PFC: RS-500-PCAP-A3 |
|
| Power Good Signal |
100 ~ 500 ms |
|
| Hold Up Time |
> 17 ms |
|
| Efficiency |
>70% Typically |
|
| MTBF |
>100,000 hrs |
|
| Protection |
OVP / OCP / OPP / SCP |
|
| Output Capacity |
500 Watts |
|
| Operation Temperature |
0~40°C Nominal Input Voltage? |
|
| Regulatory |
Nemko / TUV / cUL / CE / BSMI /FCC / C-tick / CCC (Passive Model Only) |
|
| Fan |
Sleeve bearing 120mm fan |
|
| Connector |
M/B 20+4 Pin x 1
CPU 4+4 Pin x 1
PCI-E 6 Pin x 1
4 Pin Peripheral x 5
SATA x 4
4 Pin Floppy x 1 |
