CoolerMaster PSU Silent Pro M500 W

PN
RS-500-AMBA-D3
Каталожен №
870

  Производител: CoolerMaster
PSU Silent Pro M500 WУвеличи
PSU Silent Pro M500 WPSU Silent Pro M500 WPSU Silent Pro M500 WPSU Silent Pro M500 WPSU Silent Pro M500 W
€107.09


на склад: не

Продуктът не е наличен
107.09 EUR

Описание и характеристики


Характеристики:

Introduction

Silent Pro M series delivers up to 50A of power on a single +12V rail, enough power to start up a car.  Ample connectors including PCI-e 6 + 2 pins ensure compatibility with the latest high-end systems.  The power supply operates at minimal noise levels thanks to Cooler Master’s silent formula. This silent formula which comprises of patented hybrid copper plus aluminum heat sink, anti-vibration padding and intelligent fans.



Features

  • Up to 34A on a single +12V rail
  • Eco-design for energy and money saving by Active PFC.(>0.9)

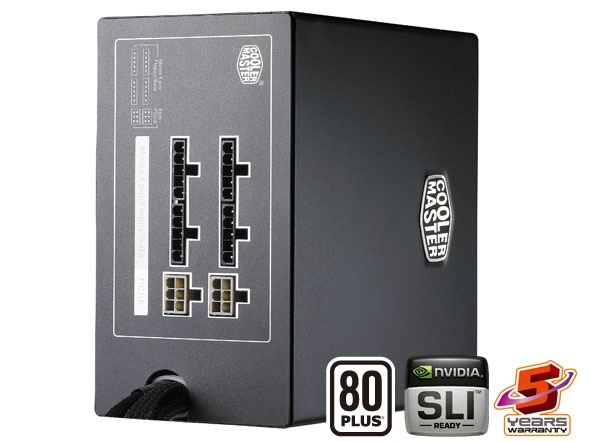

  • Flat modular cables to eliminate clutter and improve chassis airflow
  • Two 6+2 pin PCI-e connectors for multiple high-end graphic card set ups
  • Japanese-made capacitors
  • Energy efficient design that meets 80 Plus requirements
  • Intelligent 135mm fan speed control

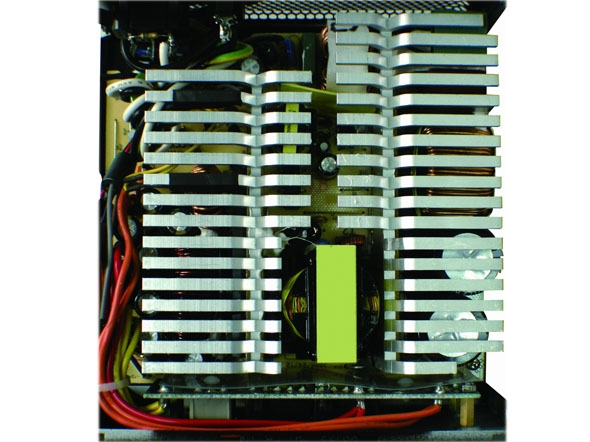

  • Hybrid copper plus aluminum heat sink
  • Anti-vibration silicon padding
  • Protection: OVP / UVP / OCP / OPP /OTP / SCP / OLP
  • High Power Density (150*150*86 mm)
  • High reliability (MTBF > 100,000 hrs)
  • Compliant with Intel standard Intel ATX12V V2.3 & SSI EPS 12V V2.91
  • Five-year warranty





Specifications

Model   RS-500-AMBA-D3

Type   Intel ATX12V V2.3 ? SSI EPS 12V V2.91

Dimension (W / H / D)   150(W) x 86(H) x 150(L) (mm)

Input Voltage   90~264V (Auto Range)

Input Current   8A@115Vac, 4A@230Vac

Input Frequency Range   47~63Hz

PFC   Active PFC >0.9

Power Good Signal   100~500ms

Hold Up Time   >17ms

Efficiency   85% Typically

MTBF   >100,000hrs

Protection   OVP/ UVP/OCP/OPP/OTP /SCP/ OLP

Output Capacity   500W

Max. Output Capacity   620W

Operation Temperature   0~40°C (Nominal Input Voltage)

Regulatory   NEMKO / TUV / CE / GOST / C-tick / / UL / FCC

Fan   135mm ultra silent fan

Certifications   80 Plus

Connector   M/B 20+4 Pin Connector x 1
CPU 4+4 Pin x 1
PCI-E 6+2 Pin x2
4 Pin Peripheral x 5
SATA x 6
4 Pin Floppy x 1
