754 3U HeatPipe, CU
[AK-876]
№: ++261 Manufacturer: Akasa

€12 97

available: no
This product is not available
12.98 EUR

Specifications:

Designed for AMD Socket AM2, 939, 940, 754 and 1207FX
AMD Athlon 64, 64 X2 & Athlon 64 FX

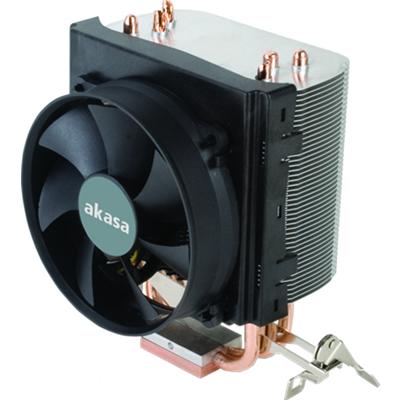

The lo-noise AK-876 utilizes U-shape heatpipes technology for rapid and even heat transfer. A copper base is used for maximum heat absorption; three precision embedded copper heatpipes ensure hi-speed heat transfer and 45 aluminium fine fins for ultimate heat dissipation. 4-pin fan connector with 3-pin compatibility allows for fan power management via PWM or Cool’n’Quiet and auto fan control. Lo-noise 92mm round frame fan provides efficient and quiet cooling. A steel cam-lever retention clip is used for safe and easy attachment. The specific fan positioning enhances the VRM cooling (VRM - CPU Voltage Regulator Modules located on the motherboard). Thermal compound is pre-applied.

The AK-876 can be assembled horizontally or vertically as the heatpipes work independently of installation direction.

4-pin fan connector with 3-pin compatibility enables PWM or Cool'n'Quiet fan RPM control
Three U-shape heatpipes give rapid heat dissipation
Copper base for maximum heat absorption
Steel cam-lever clip for safe and easy retention
Thermal compound pre-applied

Socket type	AMD Socket AM2, 939, 940 & 1207FX
Heatsink dimension	138 x 105 x 58mm
Heatsink material	Aluminium fins, copper heat pipe and base
Cooler dimension	138.4 x 111.6 x 89.5mm
Fan dimension	92 x 25mm (on 80mm fan fitting)
Fan connector	600 - 2500 R.P.M.
Fan speed	4-pin with 3-pin capability (PWM enabled)
Fan airflow	10.56 - 47.68 CFM
Fan air pressure	0.18 - 2.56 mm H20
Fan life expectancy	45000/hrs
Bearing type	Ball Bearing
Voltage rating	12V
Noise level	17 - 30 dB(A)
Product code	AK-876
