Antec PHANTOM 500 EC FANLESS Hybrid
[124]
№: ++124 Manufacturer: Antec

€152 82

Notify me of updates to

available: no
This product is not available
152.82 EUR

Specifications:

Product Details:

New and More Powerful Phantom
Building upon the technology that made our revolutionary Phantom 350 power supply totally silent, the Phantom 500 with Antec's new Hybrid Fan technology, provides awesome power while continuing to offer the user an extremely quiet computing environment. Phantom 500 operates completely silently until its internal temperature reaches a user selected temperature, whereupon the fan turns on to balance high power performance with quiet computing

Features:

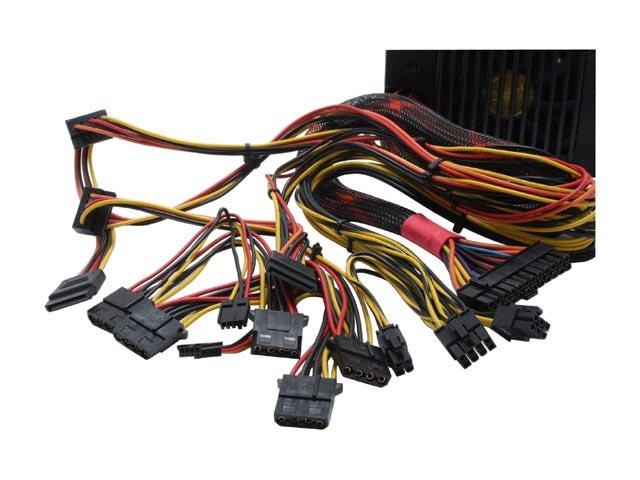

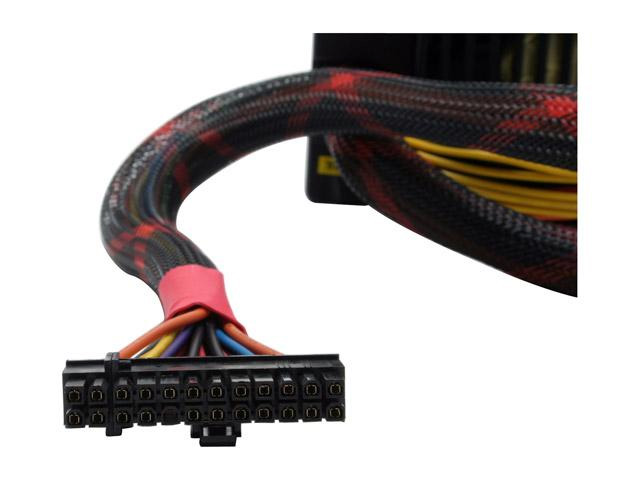

ATX12V version 2.01 compliant with 24-and-20-pin adapter connector with detachable 4-pin section for 20-pin for backward compatibility with older motherboards
Dual +12V outputs, with dedicated circuits to isolate the CPU power line from peripherals.
Hybrid fan design
Exceptional power efficiency up to 85% (US version) at full load
4 Serial ATA power connectors
PCI-E graphic card power connector
Fanless operation for absolutely silent computing. Three user selectable fan kick-in points for quiet computing under higher loads: 40, 47.5, or 55 degrees C.

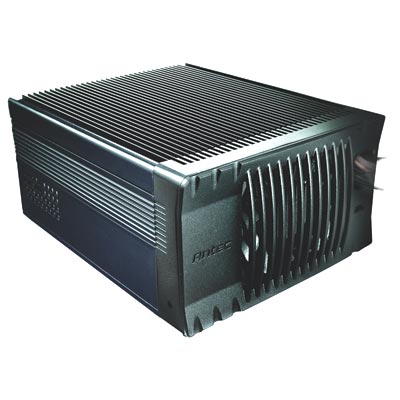

Specially designed internal heatsinks and chassis heatsink for maximum heat dissipation
ATX12V v2.0 compliance and ultra-high-efficiency design (up to 82%) allows Phantom to generate up to 70% less heat and consume 25% less power than standard PSU's saving you money on your electric bill
Power Factor value greater than 90% (EU only)
Gold plated connector for superior conductivity

FEATURES

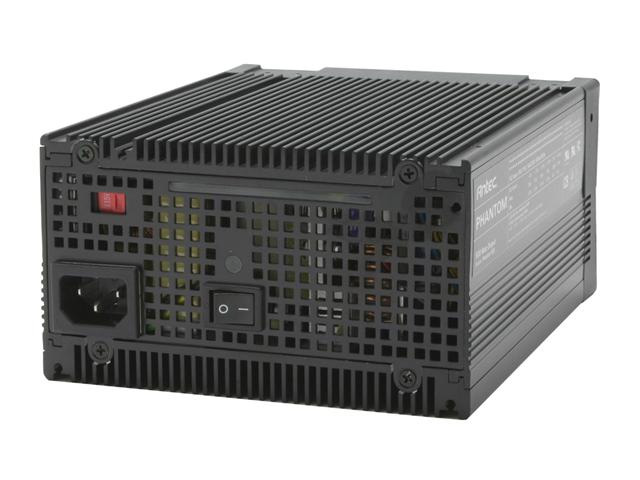

Switches	ATX Logic on-off Additional power rocker switch
Maximum Power	500W
Transient Response	+5V,+12V and 3.3V outputs return to within 5% in less than 1ms for 20% load change.
P. G. Signal	100-500ms
Over Voltage Protection recycle AC to reset	+5V trip point < +6.2V +3.3V trip point < +4.1V +12V trip point < +14.3V
Special Connectors	ATX12V SATA PCI Express
Leakage Current	<3.5mA @ 115VAC

DIMENSIONS
Unit Size	5.9"(W) x 7.2"(D) x 3.4"(H) 15cm(L) x 18.3 cm(W) x 8.6 cm(H)
Net Weight	6.65Lbs/3.1 KG

OUTPUT

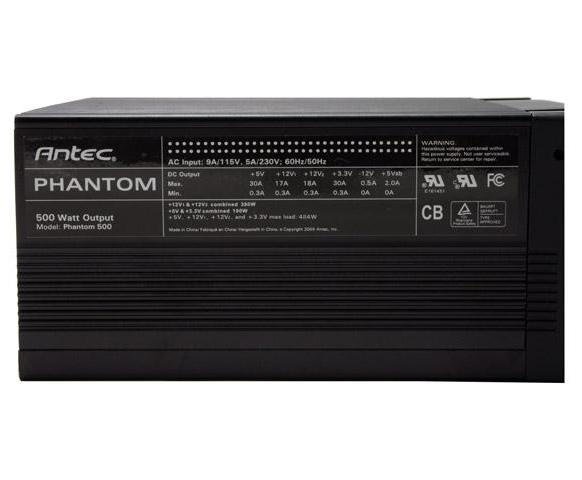

	+5V	+12V1	+12V2	+3.3V	-12V	+5Vsb
Max. Load	30A	17A	18A	30A	0.5A	2.0A
Min. Load	0.3A	0.3A	0.3A	0.3A	0A	0A
Load Reg.	±5%	±5%	±5%	±5%	±5%	±5%
Rippe V(p-p)	50	120	120	50	120	50

INPUT
Input Voltage	100Vac to 240Vac +/- 10%
Input Frequency Range	47Hz to 63Hz
Inrush Current	60A @ 115V , 80A @ 230V
Input Current	9A @ 115V, 5A @ 230V
Hold-up Time	20ms at full load
Efficiency	85%(US version) / 82%(EU version with PFC) at full loads, 115V/230Vac 60/50Hz
EMI/RFI	FCC Class B

ENVIRONMENTAL
Operating Temp.	10°C to 50°C
Operating Alt.	Sea Level-10,000 ft
MTBF	80,000 hours at 25°C
Safety Approval	TUV, UL, CUL, CE, CB, FCC
