| ㆍSpecifications |
|
| ㆍSupport CPU list |
| Intel Core™ 2 Exterme(Socket LGA775) |
|
| Intel Core™ 2 Duo (Socket LGA775) |
|
| Intel Pentium Extreme Edition (Socket LGA 775) |
|
| Intel Pentium D (Socket LGA 775) |
|
| Intel Pentium 4 (Socket LGA775) |
|
| Intel Celeron D (Socket LGA775) | |
|
| ㆍDimension |
100(L) x 94(W) x 77(H) mm |
|
| ㆍHeatsink Material |
| Fin : Aluminum |
|

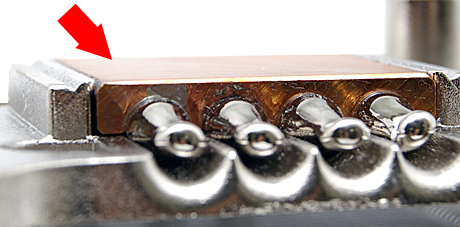

| Base : Copper |
|

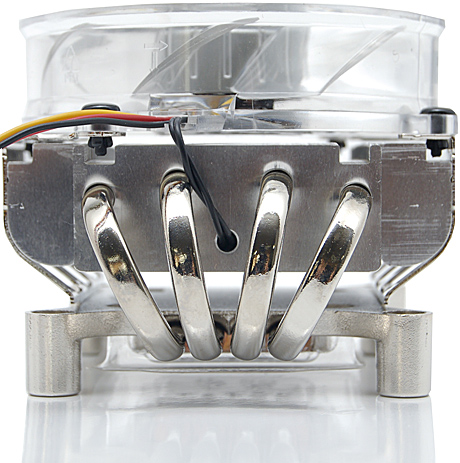

| Heatpipe : Copper | |
|
| ㆍHeat Dissipation Area |
2,360 ㎠ |
|
| ㆍCooling Capacity |
Up to 130W |
|
| ㆍFan Dimension |
92 x 25 mm |
|
| ㆍFan Speed |

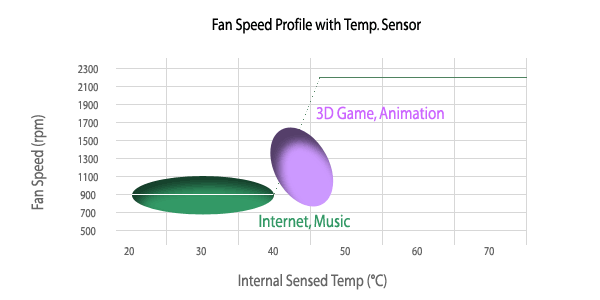

Automatic fan speed control by Temp. sensor
800~2,300 rpm (± 10%), normally under 1,500 rpm |
|
| ㆍAcoustical Noise |
Max. 27 dBA (± 10%), normally under 18 dBA |
|
| ㆍAir Flow |
Max. 42.8 CFM |
|
| ㆍFan Connector |
4-pin, 3-wire (NOT support PWM) |
|
| ㆍRated Voltage |
DC 12V |
|
| ㆍWeight |
357g (w/o optional components) |
|
