| ㆍVarious Applications |
|
|
 |
 |
 |
Supports NVIDIA SLi & ATI Cross-Fire (Height : 32mm)
|
Supports up to NVIDIA Geforce 7900 sereis
|
Supports up to ATI Radeon X1900 series | | |
|
| ㆍSpecifications |
|
| ㆍDimension |
116(L) x 100(W) x 32(H) mm |
|
| ㆍHeatsink Material |
| Fin : Copper |
|
| Base : Copper |
|
| Heatpipe : Copper |
|

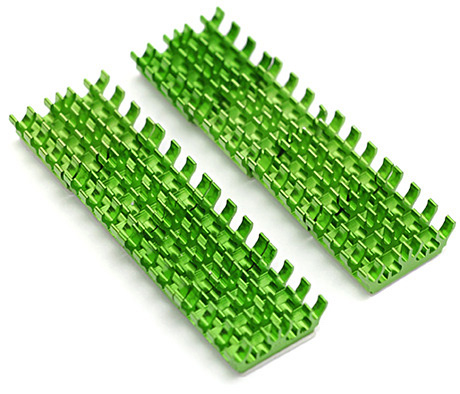

| Memory Heatsink : Aluminum | |
|
| ㆍRated Voltage |
12VDC |
|
| ㆍRated Input Current |
0.2A |
|
| ㆍRated Input Power |
2.4W |
|
| ㆍFan Dimension |
70 x 15 mm |
|
| ㆍMax Air Pressure |
6.95 mmH2O |
|
| ㆍMax Air Flow |
9.25 CFM |
|
| ㆍBearing Type |
2-Ball bearing |
|
| ㆍLife Expectance |
50,000 hours |
|

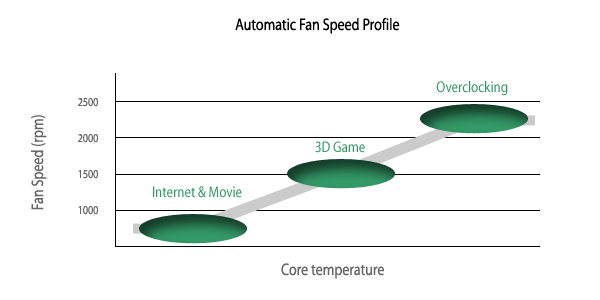

| ㆍFan Speed |
| Automatic fan speed control by Temp. Sensor |
|
| 900~2,500 rpm (± 10%) normally under 1,500 rpm | |
|
| ㆍAcoustical Noise |
| Min. 16.95 dBA @ 900 rpm (± 10%) |
|
| Max. 29.85 dBA @ 2500 rpm (± 10%) | |
|
| ㆍFan Connector |
3-pin, 3-wire (to M/B or to PSU) |
|
| ㆍWeight |
188 g (w/o optional components) |
| |
|
 |
|
| ㆍCompatible VGA card list |
|
|
 |
 |
NVIDIA GeForce 6600 Series (Except 6600 AGP)
NVIDIA GeForce 7600 Series | |
|
 |
NVIDIA GeForce 6800 Series
NVIDIA GeForce 7800 Series (Except 7800 AGP)
NVIDIA GeForce 7900 Series
ATI Radeon X1800 Series
ATI Radeon X1900 Series | |
|
 |
ATI Radeon X1300 Series
ATI Radeon X1600 Series | |
|
|
| |
| Incompatible VGA card list |
|
|
ㆍNVIDIA PCX 5 series,
NVIDIA GeForce 6600 AGP series
ㆍAIT 9550/9600 series
ㆍMatrox VGA cards | | | |
|
|
|
