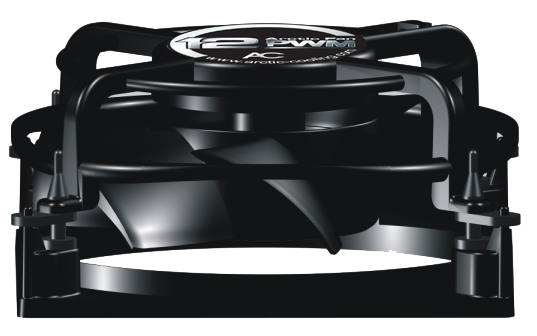

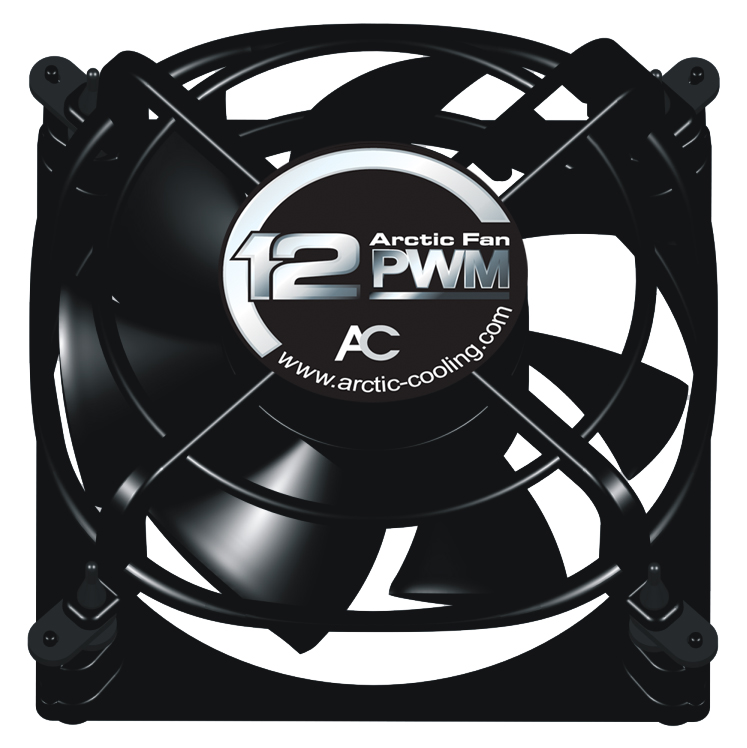

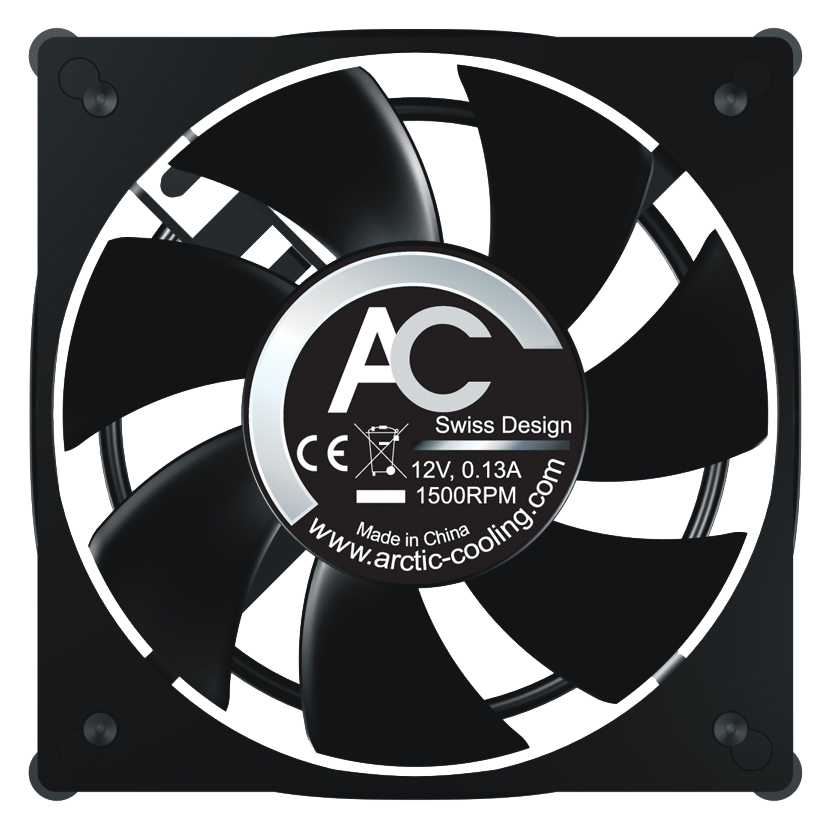

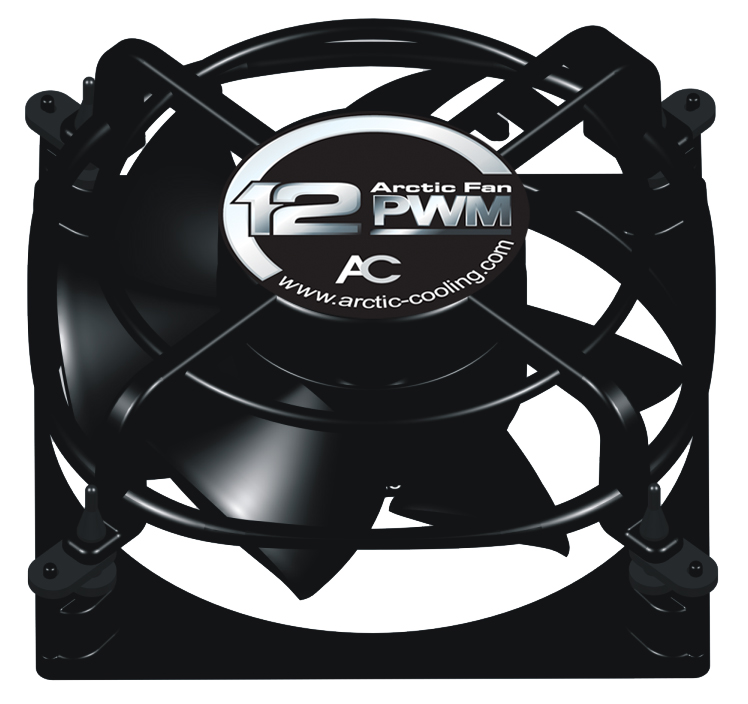

Arctic Arctic Fan 12 PWM(4pin) - 120mm

PN
Arctic Fan 12 PWM
Catalog number
198

  Manufacturer: Arctic
Arctic Fan 12 PWM(4pin) - 120mmClick to enlarge
Arctic Fan 12 PWM(4pin) - 120mmArctic Fan 12 PWM(4pin) - 120mmArctic Fan 12 PWM(4pin) - 120mmArctic Fan 12 PWM(4pin) - 120mm
€5.41


available: no

This product is not available
5.41 EUR

Description and specifications


Specifications:

120 mm PWM Case Fan











Patented PST (PWM Sharing Technology)

  • Regulate RPM speed of up to 5 fans by the o­nboard CPU fan controller

  • Lowest noise level for a given system load

  • Control the entire cooling for your needs (silent / quiet / overclocking) via BIOS settings

    Lowest Noise Level at its Air Flow Rate

    Patented Case Design

    Patented Vibration Absorption

    Circulation Optimized Fan Blades

    High Airflow

    High Static Pressure

    Compatible with toolless Mounting Mechanisms for Standard 25 mm deep fans

    Long Lifetime

    6 Years Warranty
    The Fluid Dynamic Bearing offers a unique 400'000 h MTTF at 40°C. Therefore we grant a unique 6 years warranty.

    • PST:       PWM amplifier integrated on motor circuit
           4 pin plug for receiving power and PWM signal from motherboard
           4 pin socket for CPU cooler or second fan
           3 pin plug to send fan RPM signal to motherboard
    Dimensions:       120 x 120 x 38.5mm
    Rated Fan Speed:       400 - 1500 RPM
    Air Flow:       56.3 CFM / 94.7 m3/h
    Noise Level:       10.0 dB(A) - 23.5.0 dB(A), 0.08 Sone - 0.5 Sone
    Power Consumption:       12 V, 0.13 Amp.
    Weight:       140 g
    Bearing:       Fluid Dynamic Bearing
    Cable Length:       300mm


























           12/2006
    RubyWorks: Arctic Fan 8, 9, 12 PWM

    These fans worked wonderfully, when I started playing Counter Strike the fans started to speed up to keep my processor cool. I liked the PST technology, it rids the need for a fan controller. The Arctic Fan PWM are truly great fans. They are truly very silent and a great addition to any computer case, weather its for an HTPC or a gaming rig. In addition for those motherboard with 1 or 2 fan headers the Arctic Fan PWM can expand the number of fans you can have in you case because you can piggy-back 2 or 3 safely o­n o­ne fan header.

           12/2006
    Technic3D: Arctic Fan PWM

    Mit einem weiteren Patent hat Arctic Cooling erneut einen Treffer gelandet. Die PWM Fans sprechen mit dieser Technik sowohl den Silent-Freak, wie auch aufgrund des hohen Fördervolumens den Temperaturfetischisten an. Eine simple Steuerung der gesamten Gehäusekühlung über das Bios oder eine Software, einfacher geht es nicht. Hinzu kommen die erfreulich günstigen Verkaufspreise von 5,90€ für den 80mm, 6,90€ für den 92mm und 8,90€ für den 120mm Lüfter. Aufgrund der gezeigten Leistung vergeben wir die uneingeschränkte Kaufempfehlung und den Gold Award.
