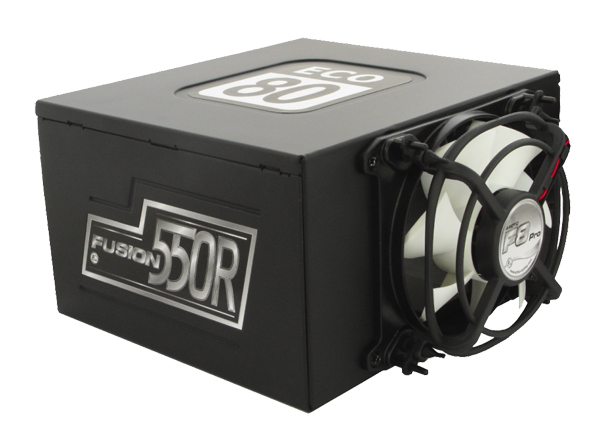

Arctic PSU Fusion 550W
- PN
- PCACO-PS550-07A01
- Catalog number
- 501
Specifications:
550 Watt Eco 80 PSU
ATX 2.2
Payment Saving Unit
Fusion 550R follows the default ATX-Form-Factor and thus will fit into every ATX PC-Case. It fulfils the ATX 2.2 specifications and can offer a continuous power of 500 Watt - enough for every Highend System. Equipped with two 6-pin- and 8-pin PCIe connectors the PSU is ideal for powering a Crossfire- or SLi-setup.
Main features
• Ultra quiet 80mm PWM fan with low noise impeller
• 550W maximum output power, ATX 2.2
• 82-86% efficiency, 99% PFC
• 80mm ARCTIC F8 Pro fan
• Intelligent fan control (700 – 2,000 RPM)
• Controller for case ventilation
• Over-Power, Over-Voltage, Short Circuit protection,
• Over-Current Protection
• SLI and Crossfire compatible
High Efficiency = Less Power Loss = Quiet Cooling
With an efficiency of at least 81 to 86%, less heat is generated inside the PSU. As a result of this a single 80-mm-fan is enough to cool the PSU. The rubber-mounted fan is spinning in a range between 700 and 2000 RPM making it virtually silent. Additionally to this the PSU comes along with two external fan-connectors giving the possibility to control the case ventilation based on load and temperature and thus lowers the noise level of the complete system to an absolute minimum.
Effective energy-use preserves nature and saves money
By making appreciated use of natural resources, especially energy you can contribute to lower CO˛-Emissions. Additionally you save electricity cost of about 100 €, so the Fusion 550R is a true Payment Saving Unit*.
* In 4 years, 200 d/y with 4 h/d full load at 0,15€/kWh
Save and stable PSUWith a PFC-factor of 99 % and two separated 12-volt-rails, which are supporting each other if necessary the Arctic Fusion 550R is a very save PSU, that manages to come along with highest demands. The overload, overvoltage and short-circuit protection safeguards the hardware as well as the user from damage.
| Output Power | 550 Watts (peak), 500 Watts (continuous) | |
| Dimensions | 160L x 150W x 86H mm (including fan) | |
| Efficiency | 82 – 86% | |
| PFC | Active 99% | |
| Fan | 80mm ARCTIC F8 Pro | |
| Fan Speed | 700 – 2,000 RPM by Intelligent Controller | |
| Noise Level | 0.08 – 0.3 sone | |
| Power Good Signal | 100 – 500 mS | |
| Hold Up Time | >17 mS | |
| MTBF | 100,000 hours at 25°C ambient temperature | |
| Safety | CUL (Level 6) / CE / CB | |
| Protection | OVP / OPP / SCP / OCP | |
| Input | ||
| Input Voltage | Ac 200 – 240V (Auto Range) | |
| Input Current | 3.0A at 230 Vac | |
| Input Frequency Range | 47 – 63 Hz | |
| Output | ||
| Peak Output | 550 Watts | |
| Combined Continuous Output | 500 Watts | |
| +12V (case fan) | 2 x 0.3A | |
| Environment | ||
| Operating Temp | 0°C - 50°C | |
| Storage Temp | -40°C - 80°C | |
| Operating Humidity | 20% - 80% | |
| Storage Humidity | 10% - 95% |
