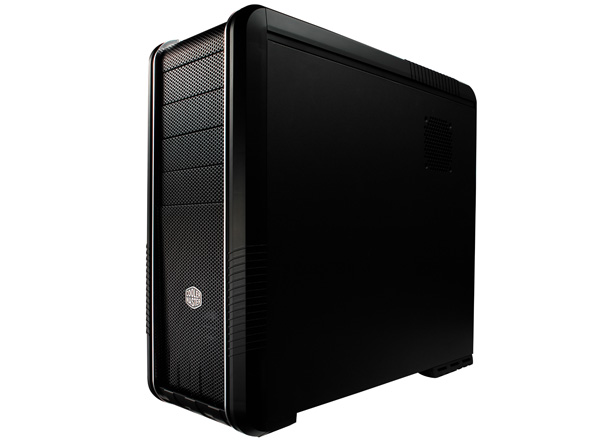

CoolerMaster Middle Tower CM 690 II Advanced Black
[RC-692-KKN2]
№: ++721 Manufacturer: CoolerMaster

€116 66

Notify me of updates to

available: no
This product is not available
116.66 EUR

Specifications:

CM 690 II Advanced raises the bar again with practical improvements over the top-selling CM 690. The spacious mid-tower will keep enthusiasts happy with room for up to 3 vga cards, high-end CPU coolers, top or bottom mount water cooling radiator and 1.8"/2.5" drive adapter. It also features much improved airflow with oversized mesh and enough space for up to 10 fans. Maintenance will be a breeze with the tool-free drive bays, new cable management and CPU cooler retention hole.

Features

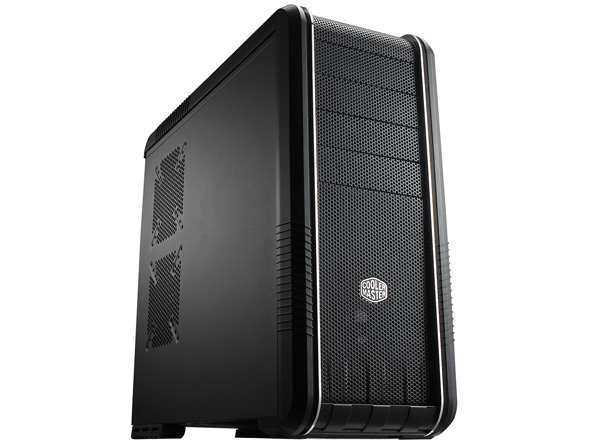

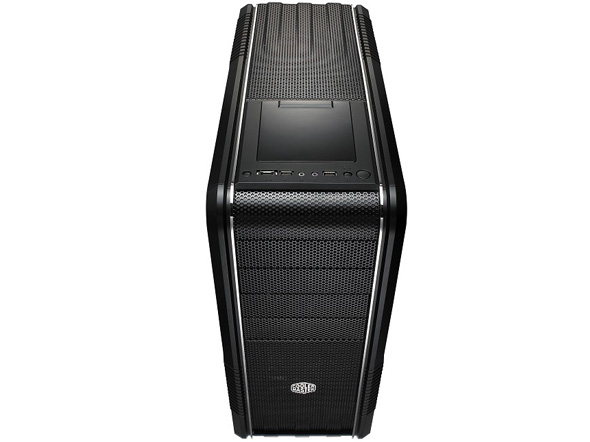

	Oversized front and top mesh design for superb ventilation.
	Accommodates 120 x 240 mm radiator inside the top or bottom.
	Dust-control filters for all meshed areas.
	Air cooling support for up to 10 fans (with support for up to 5 x 140mm fans).

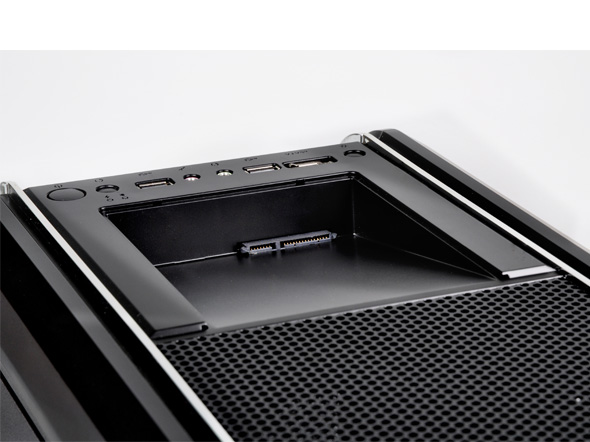

	External SATA X-dock .

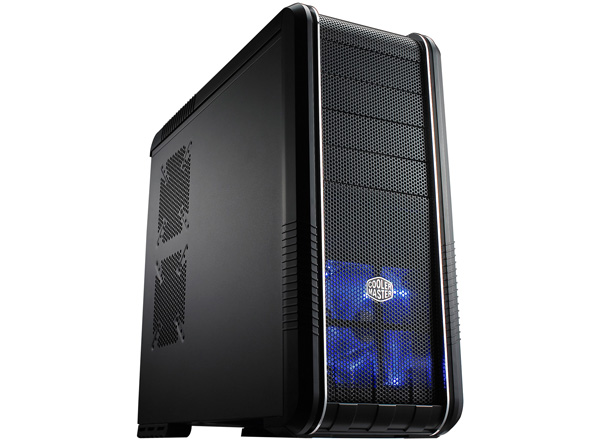

	Front blue LED fan on/off switch.
	Rear retaining holes for water cooling kit.

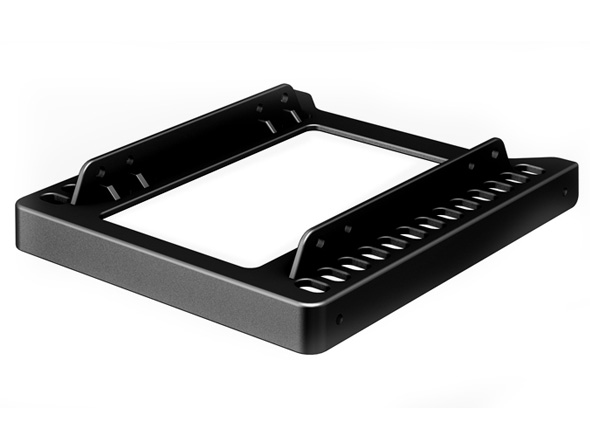

	Includes 1.8" & 2.5" HHD and SSD adapter.

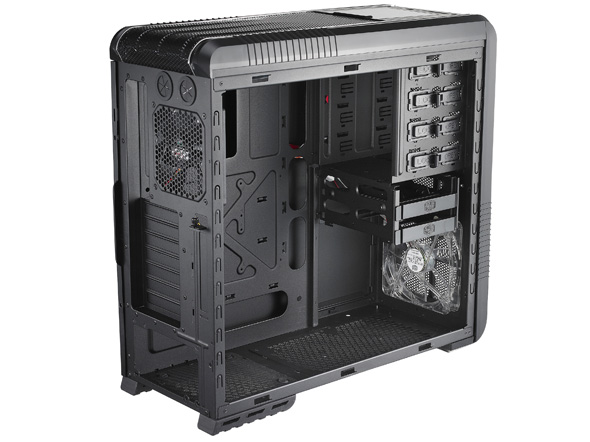

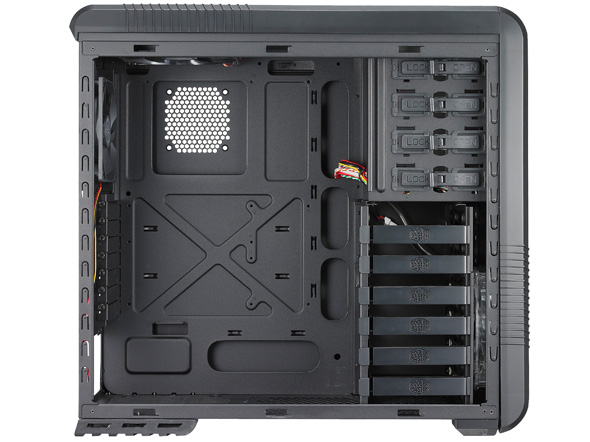

	Cable management and CPU retaining hole for easy maintenance.

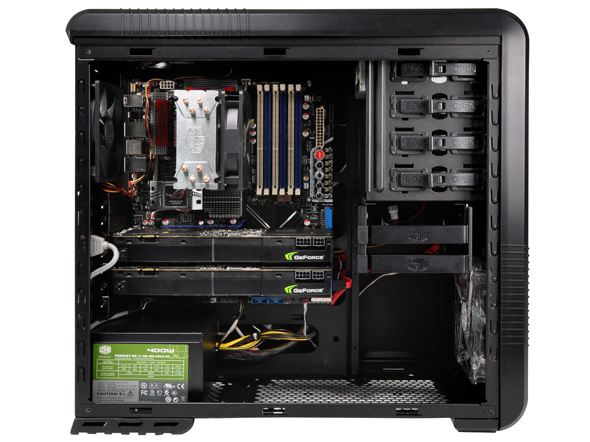

	Includes VGA card bracket (supports triple GPU card).

Tech Specs

	Model: RC-692-KKN2
	Available Color: Black
	Material: Steel body / Plastic + Mesh bezel
	Dimension: 214.5 x 511.8 x 528.8 mm
	8.4 x 20.1 x 20.8 inches
	Net Weight: 9.56 kg / 21.08 lbs
	Gross Weight: 11.56 kg / 25.49 lbs
	M/B Type: Micro - ATX / ATX / Mini-ITX(supports)
	5.25" Drive Bay: 4 (without the use of exposed 3.5" drive bay)
	3.5" Drive Bay: 6 Hidden; 1 Exposed (converted from one 5.25" drive bay)
	2.5" Drive Bay: 2 (From 3.5" HDD Cage)
	I/O Panel: USB 2.0 x 2 , eSATA x 1 , MIC x 1 , Audio x 1 (supports HD / AC97 audio)
	Expansion Slots: 7 + 1
	Cooling System:
	Front: 140 x 25 mm Blue LED fan x 1 / 1200 RPM / 19 dBA
	Rear: 120 mm fan x 1 / 1200 RPM / 17 dBA
	Top: 140 x 25 mm fan x 1 / 1200 RPM / 19 dBA (supports 120 / 140 mm fan x 2)

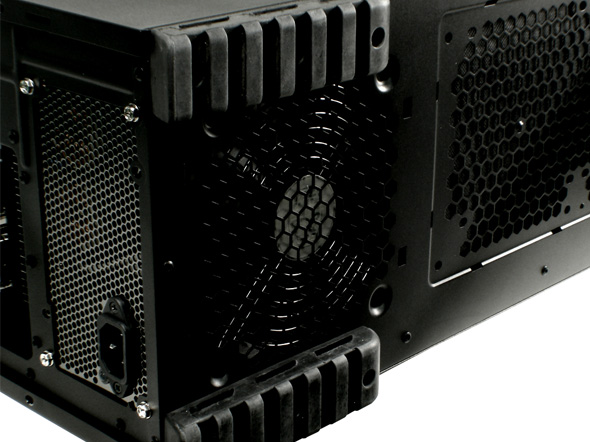

	Bottom: 120 mm fan x 2 (optional)

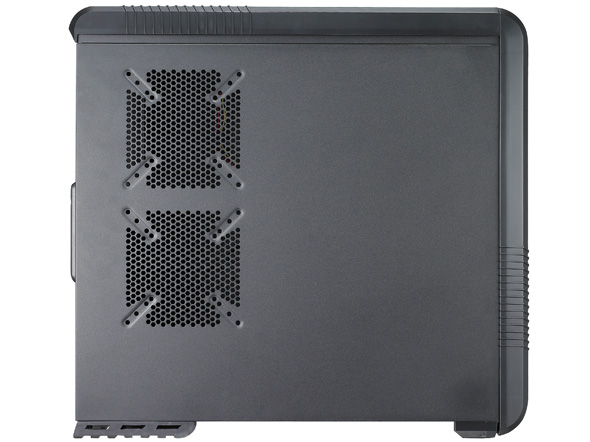

	Right side: 120 / 140 mm fan x 2 (optional)
	Left side: 80 x 15 mm x 1 (optional)
	HDD cage: 120 mm fan x 1 (optional)
	VGA holder: 80 x 15 mm fan x 1 (optional)
	Power Supply: Standard ATX PS2 / EPS 12V (optional)
	VGA Holder: Yes
	HDD Dock: Yes
	HDD Fan: Yes
	Liquid Cooling: Supports Top and Bottom
	Liquid Cooling Retaining Hole: Yes
	CPU Retaining Hole: Yes
	Removable HDD Cage: Yes
	SLI: Supports Triple VGA
	UPC Code: 884102007972
