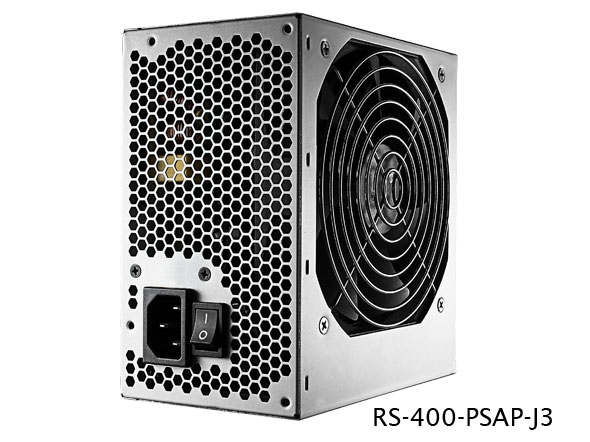

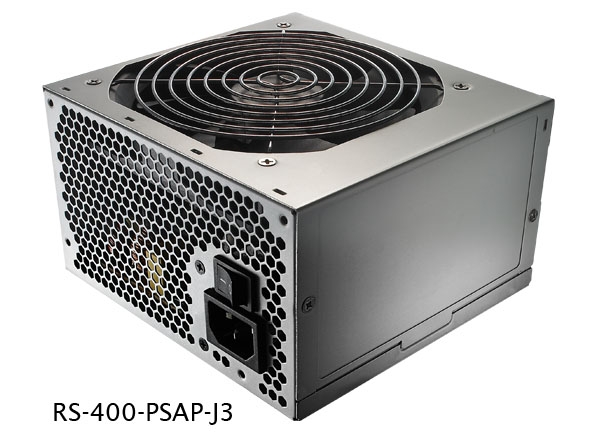

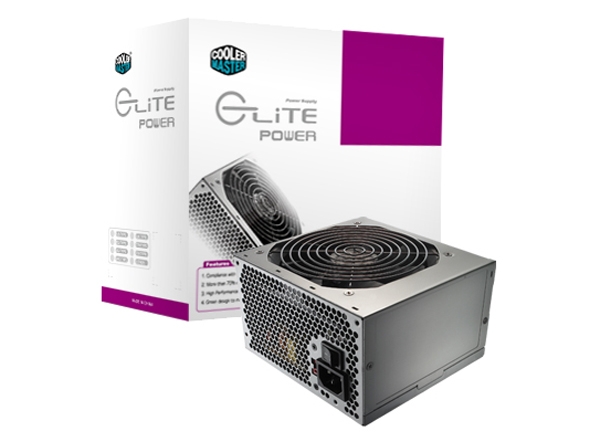

CoolerMaster PSU Elite Power 400W PPFC 120mm
[RS-400-PSAP-J3]
№: ++979 Manufacturer: CoolerMaster

€41 08

Notify me of updates to

available: no
This product is not available
41.08 EUR

Specifications:

Introduction

The reliable, efficient and affordable line of Elite power supplies is ideal for mainstream and basic computing systems. Built with quality components and dual +12V outputs, the Elite series is fit to handle demands of high power requirements. The eco-friendly design allows the Elite series to reach more than 70% efficiency at typical loading and meet Energy Star and Blue Angel requirements.

Features

High performance components for improved reliability

Eco-friendly design to meet Energy Star and Blue Angel requirements

Multi-protection design (OVP/OCP/OPP/SCP)

Supports dual +12V1 and +12V2 outputs for high power usage

One 4+4 pin +12V CPU connector for high-end CPU

EMI and Noise filter built-in design

Over 70% efficiency at typical loading

Compliance with the latest Intel standard ATX 12V V2.3

Specifications

Model	RS-400-PSAR-J3 / RS-400-PSAP-J3

Type	Intel Form Factor ATX 12V V2.3

Dimension (W / H / D)	150 x 86 x 140 mm

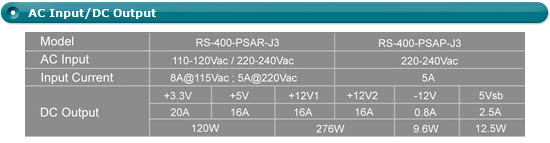

Input Voltage	RS-400-PSAR-J3 : 110~120V/220~240V (Selectable) RS-400-PSAP-J3 : 220~240 V

Input Current	RS-400-PSAR-J3 : 8A @ 115Vac / 5A @ 220Vac RS-400-PSAP-J3 : 5A @ 220Vac

Input Frequency Range	47 ~ 63 Hz

PFC	None PFC: RS-400-PSAR-J3 Passive PFC: RS-400-PSAP-J3

Power Good Signal	100 ~ 500 ms

Hold Up Time	> 17 ms

Efficiency	>70% Typically

MTBF	>100,000 hrs

Protection	OVP / OCP / OPP / SCP

Output Capacity	400 Watts

Operation Temperature	0~40°C (Nominal Input Voltage)

Regulatory	CE / GOST / C-tick / UL

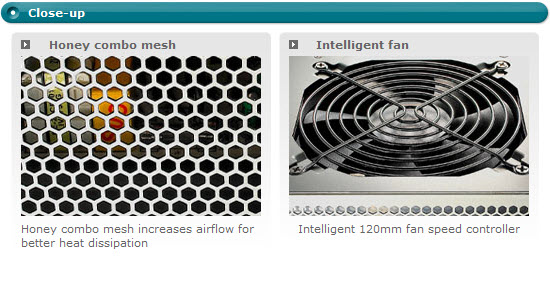

Fan	120mm fan

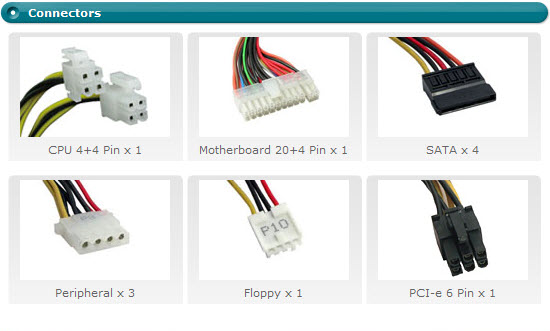

Connector	M/B 20+4 Pin x 1 CPU 4+4 Pin x 1 4 Pin Peripheral x 3 SATA x 4 4 Pin Floppy x 1 6 Pin PCI-e Connector x 1
