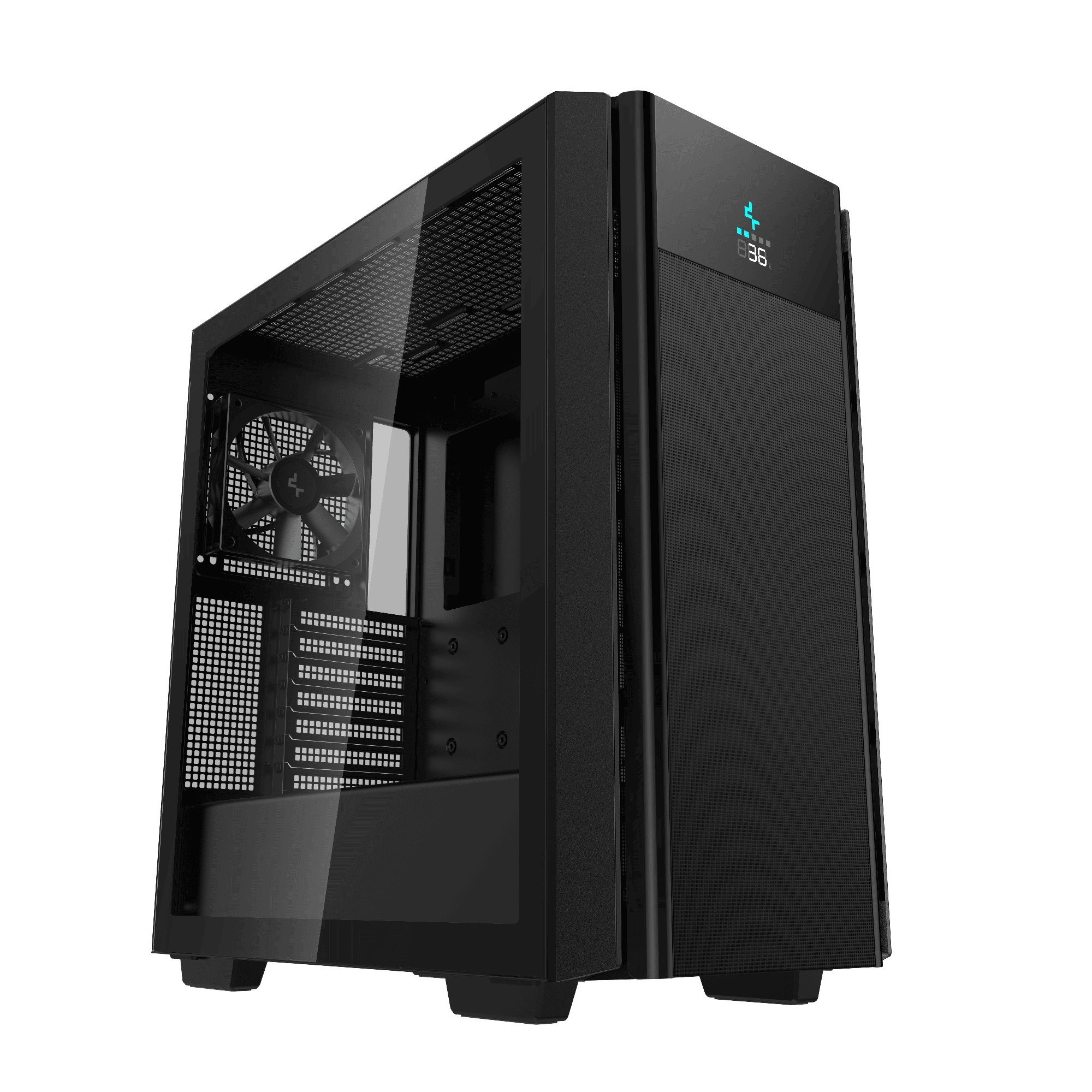

DeepCool Case EATX - CH510 MESH DIGITAL
[R-CH510-BKNSE1-G-1]
№: ++4788
Manufacturer: DeepCool
Specifications:
| BRAND | DeepCool |
| MFG CODE | R-CH510-BKNSE1-G-1 |
| FORMAT | EATX ATX mATX Mini-ITX |
| FORM FACTOR | Middle Tower |
| WATERCOOLING SUPPORT | 360 mm - Front 280 mm - Front 240 mm - Front 120 mm - Front 360 mm - Top 280 mm - Top 240 mm - Top 120 mm - Top 120 mm - Rear |

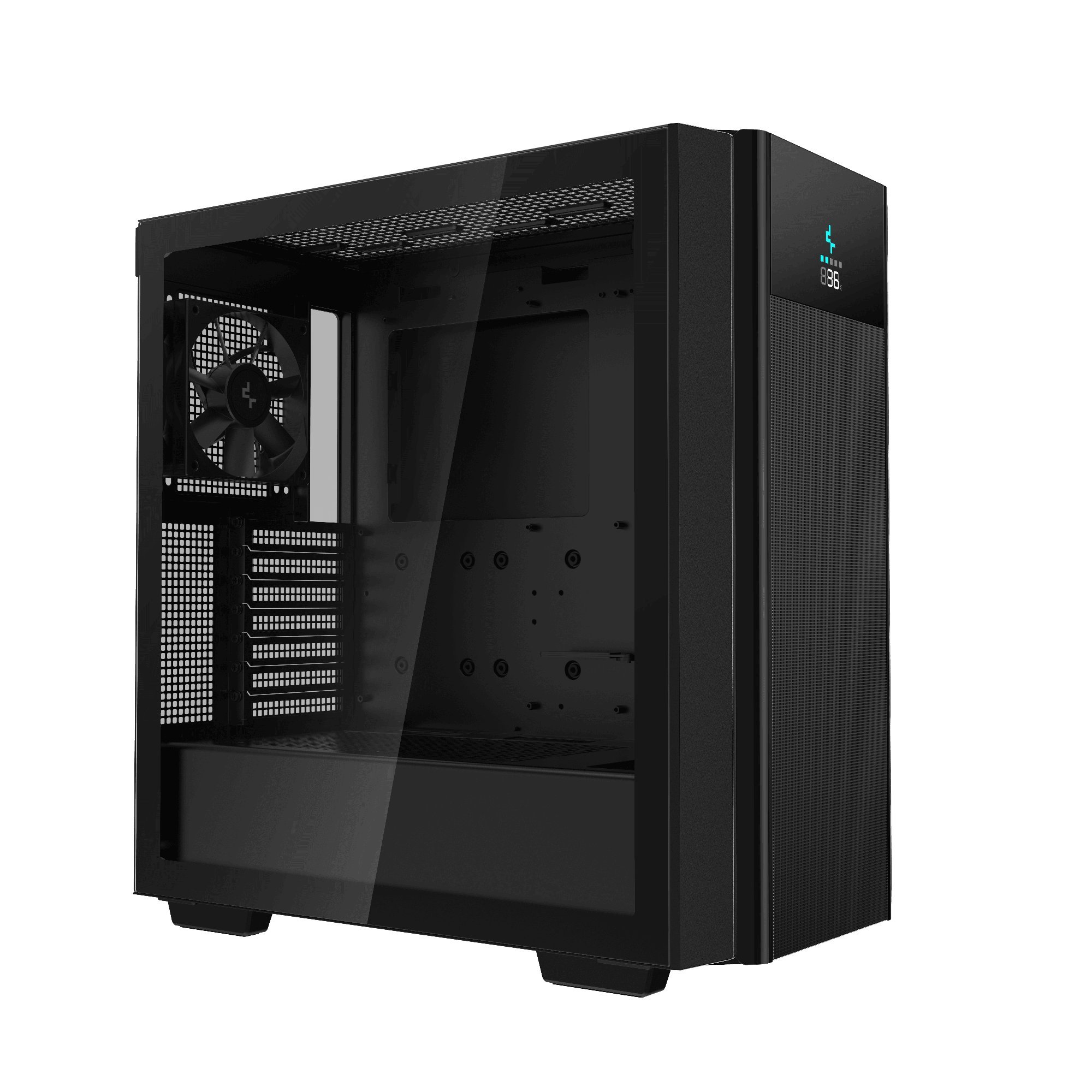

| SIDE WINDOW | YES Tempered glass |

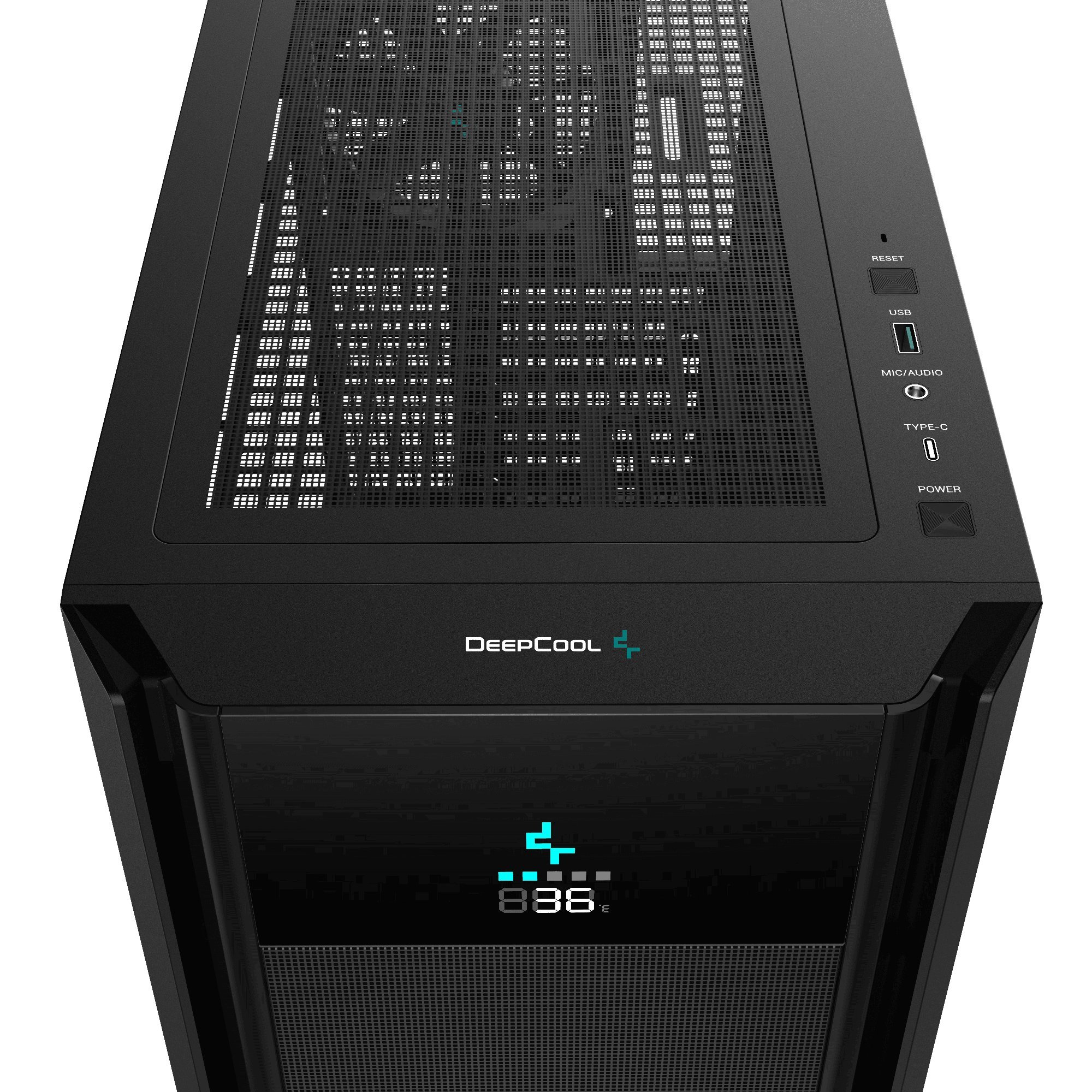

| INTERFACE | 1 x USB 3.1 Type-C 1 x USB 3.0 HD Audio x 1 |
| INCLUDED FANS NUMBER | 1 |

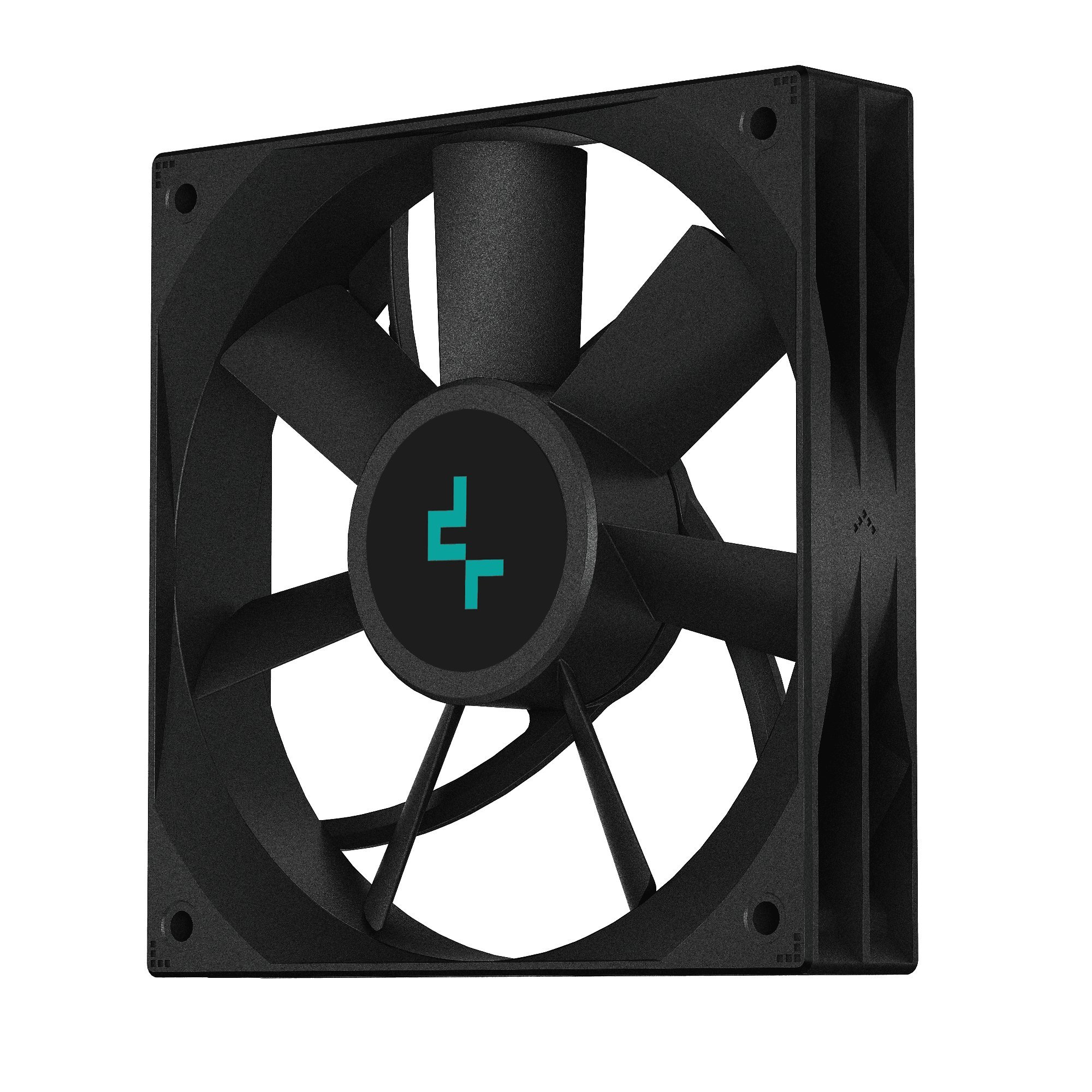

| INCLUDED FANS | Rear : 1 x 120 mm |
| OPTIONAL FANS | Front: 3 x 120 / 2 x 140 mm Top: 3 x 120 / 2 x 140 mm Rear: 1 x 120 / 1 x 140 mm PSU Shrouded: 2 x 120 mm |
| NUMBER OF 3.5" SLOTS | 2 |
| NUMEBR OF 2.5" SLOTS | 3 |
| EXPANSION SLOTS | 7 |
| CPU COOLER MAX HEIGHT | 175 mm |
| VGA CARD MAX LENGTH | 380 mm |
| COLOR | Black |

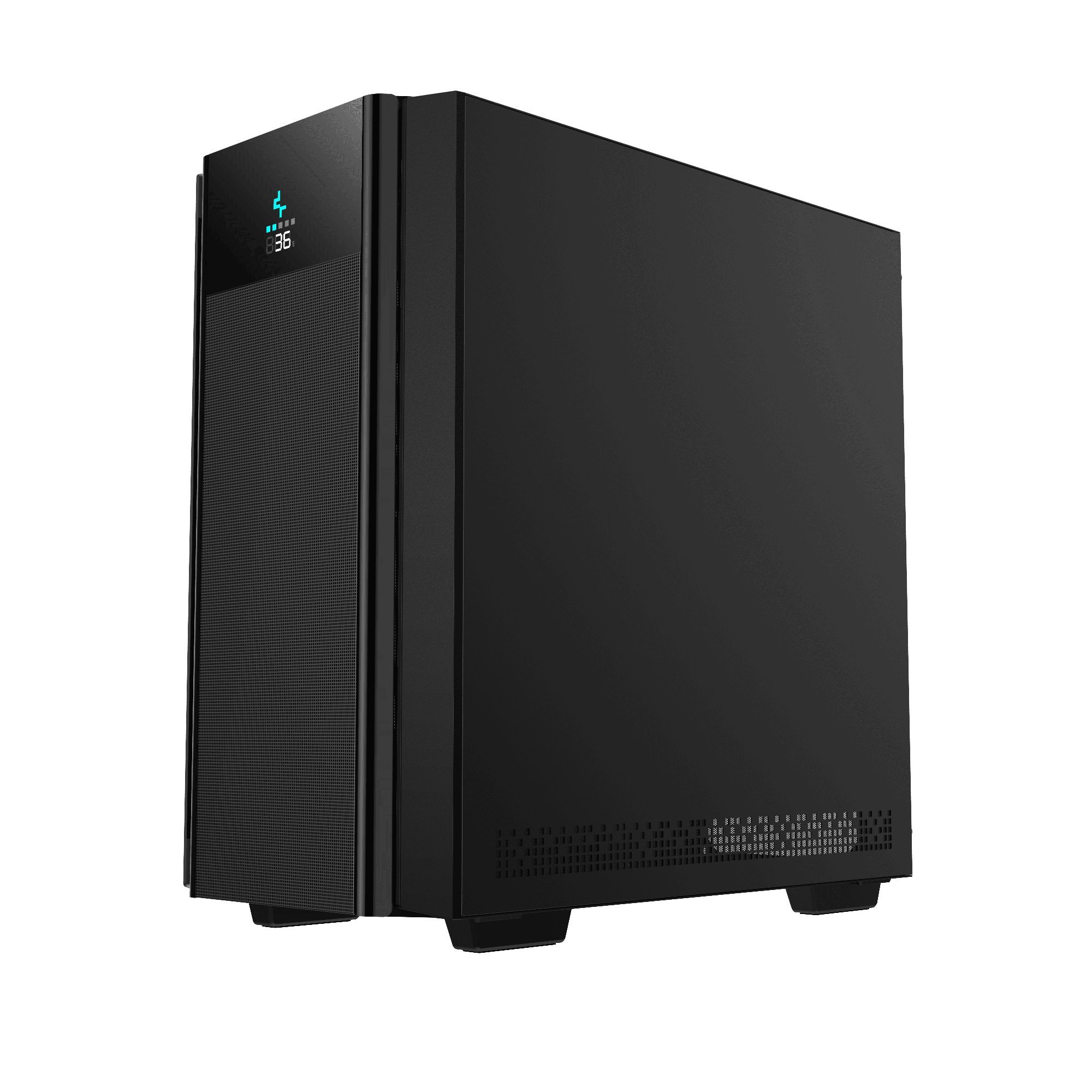

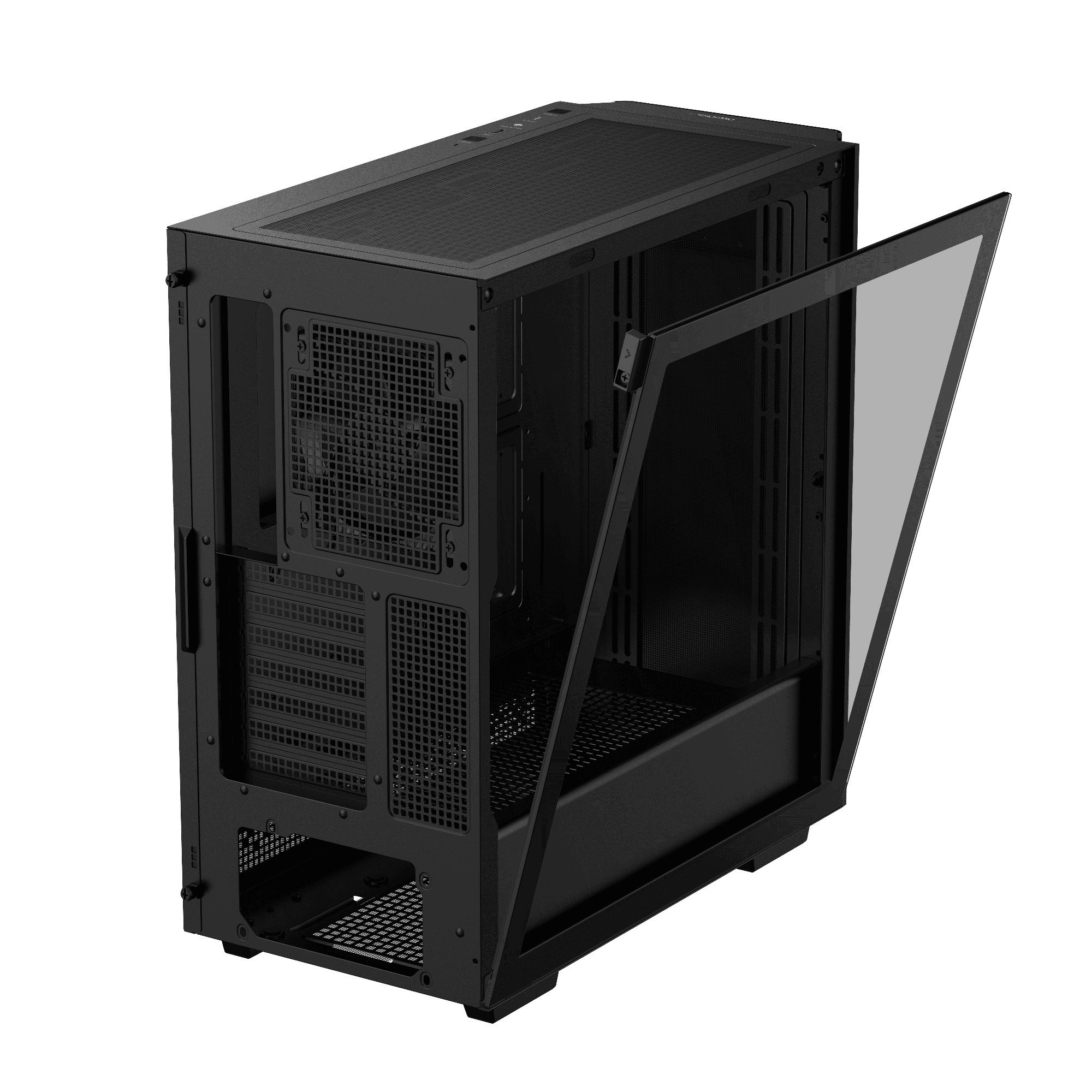

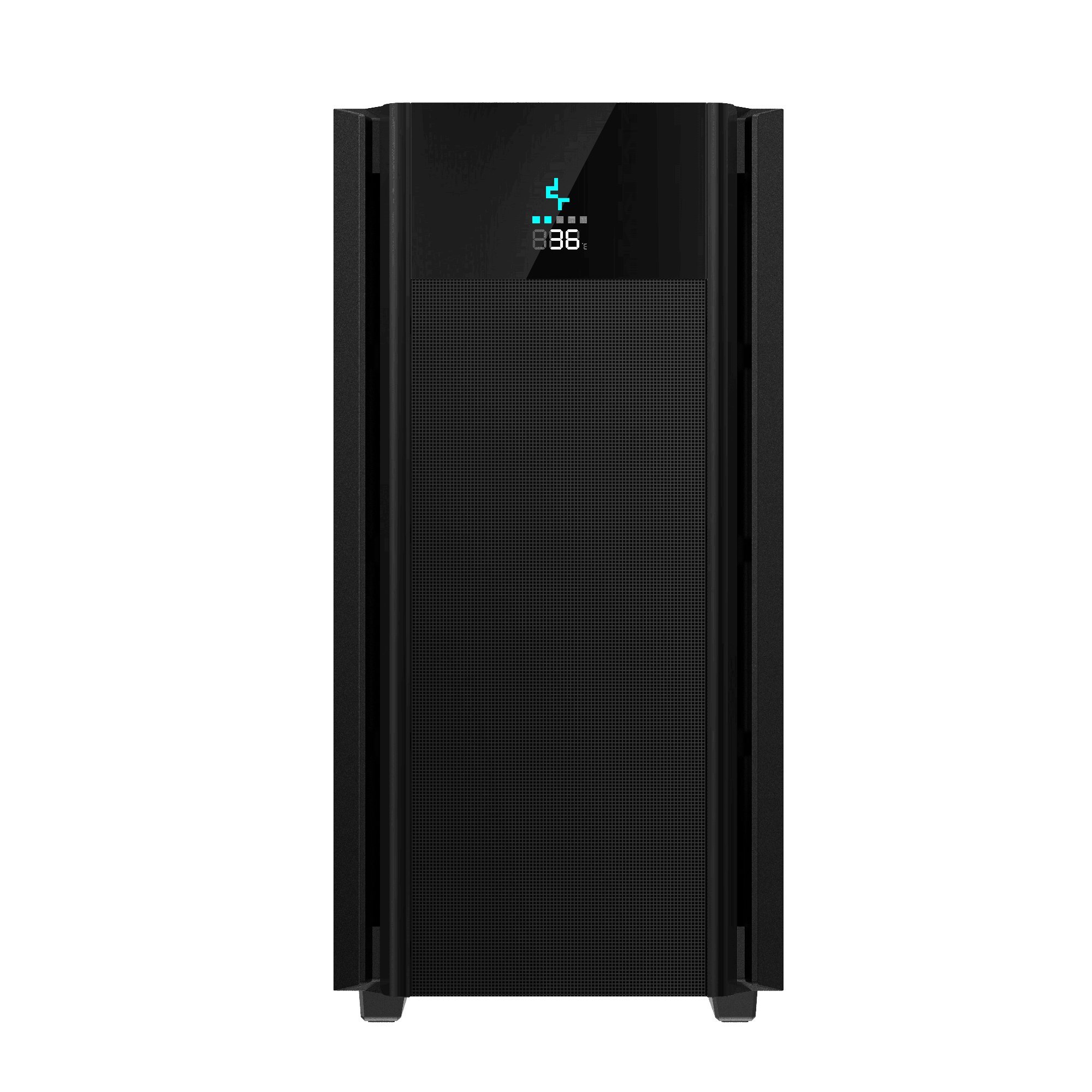

| OTHERS | Display screen that is programmable to monitor internal system temperatures for critical information up front Convenient headset holder can be pulled out from the front panel Built-in GPU support bracket Magnetic tempered glass side panel Up to a 360 mm radiator either on top or in front for water cooling |
| DIMENTIONS | 435 x 230 x 471 mm |
| WEIGHT | 7.2 kg |
| WARRANTY | 24 months |
| BARCODE EAN-13 | 6933412775072 |
Video:
[Installation Guide] CH510 MESH DIGITAL- Monitoring Your System Temperatures
