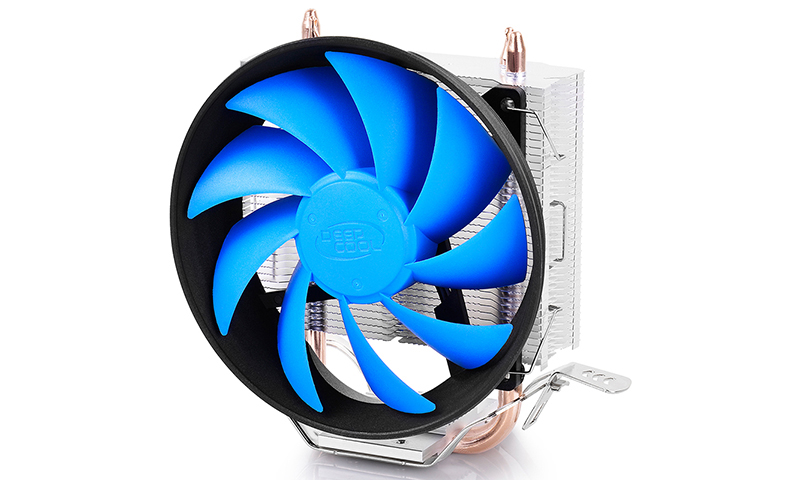

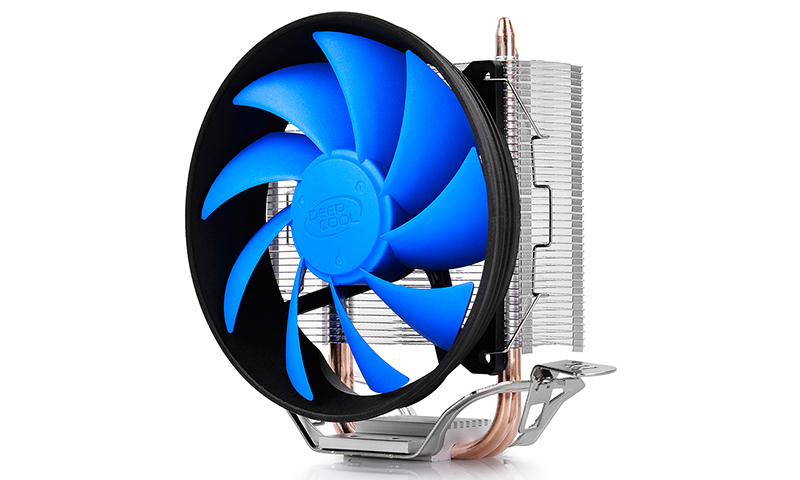

DeepCool CPU Cooler GAMMAXX 200T - 1150/775/AMD
[DP-MCH2-GMX200T]

№: ++2156   Manufacturer: DeepCool

Description

The new generation of Gammaxx 200T has preserved key features from Gammaxx 200 of great heat dissipation performance: The “Core Touch Technology” allows direct heat transfer from CPU to heatsink. However, breakthrough has been created for its massive heatsink and the bigger 12cm PWM fan, which offer strong airflow and a better cooling performance.

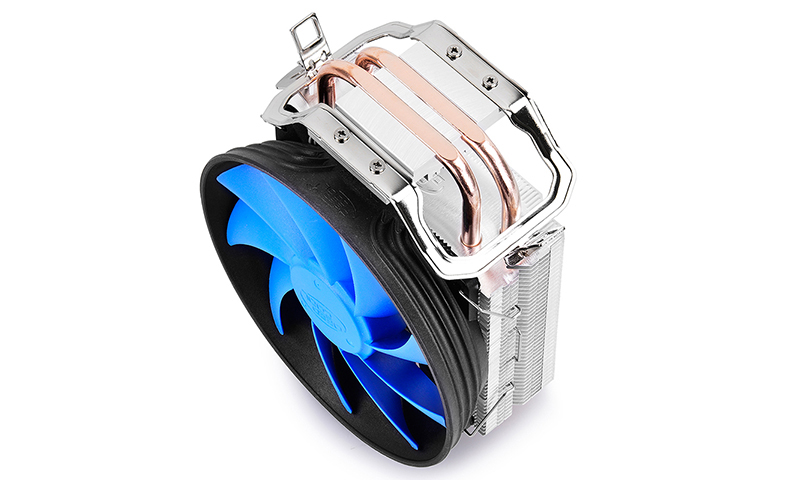

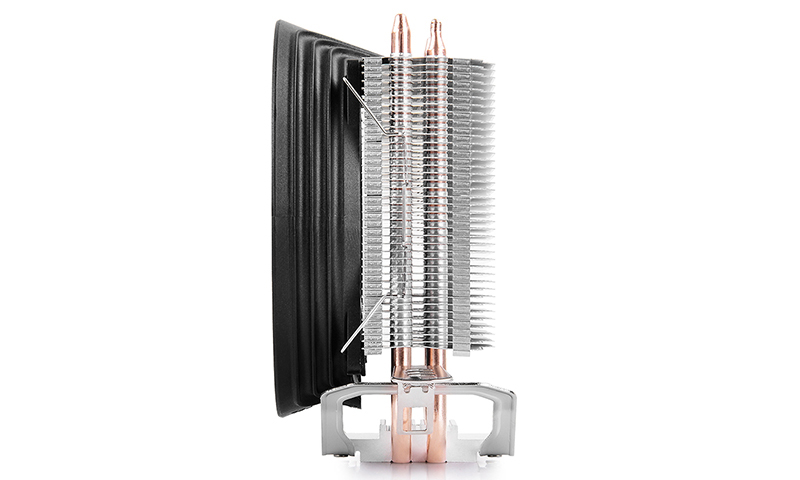

Core Touch Technology &Massive Heatsink

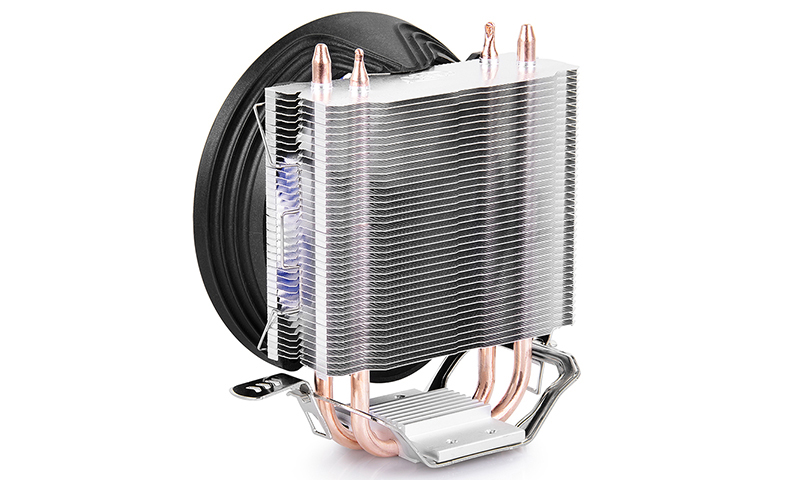

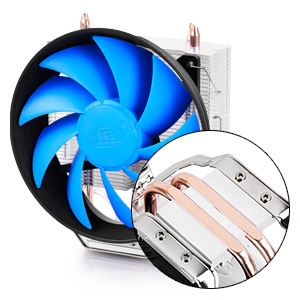

2 sintered powder heatpipes directly touch the CPU surface and conduct heat from the processor quickly to protect it from overheating.

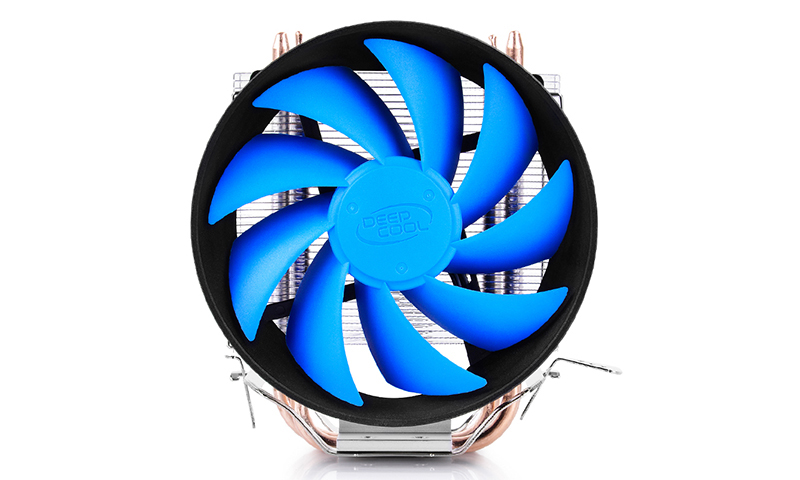

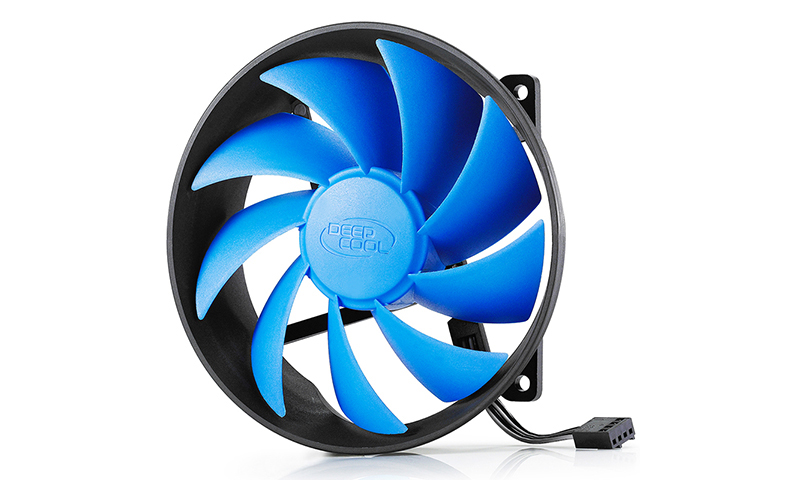

12cm PWM Fan Offers A Perfect Airflow

Ф120x25mm fan with PWM function offers a perfect balance between airflow and noise.

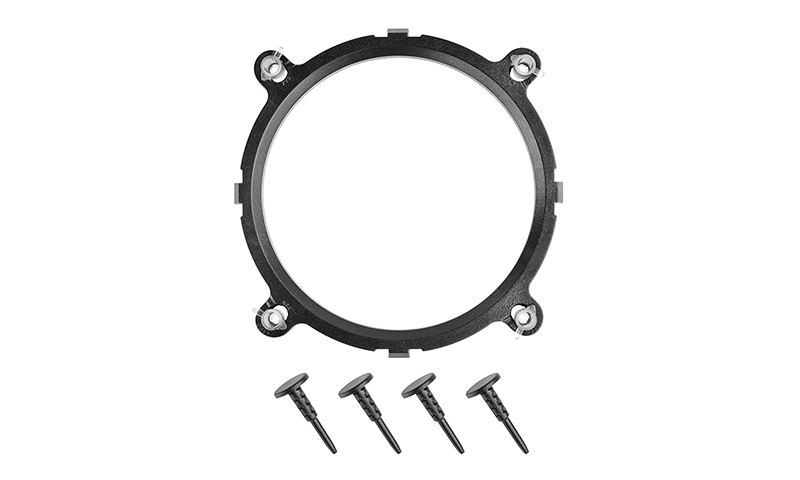

Universal Socket Compatibility

Equipped with multiple clips to support Intel LGA1156/1155/1151/1150/775 and AMD FM2/FM1/AM3+/AM3/AM2+/AM2/K8.



















Easy Installation

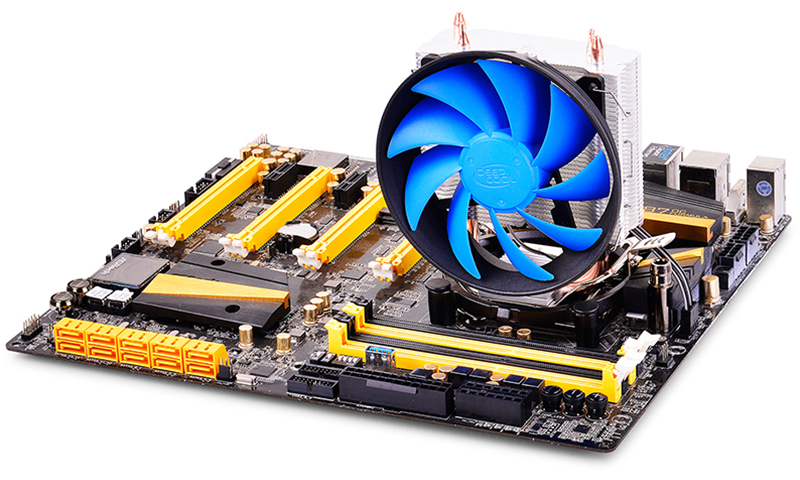

Easy installation without moving the motherboard.


Features


Equipped with multiple clips to support Intel LGA1156/1155/1151/1150/775 and AMD FM2/FM1/AM3+/AM3/AM2+/AM2/K8.
2 sintered powder heatpipes directly touch the CPU surface and conduct heat from the processor quickly to protect it from overheating.
120x25mm fan with PWM function offers a perfect balance between airflow and noise.
Easy installation without moving the motherboard.
High cooling performance up to 100W solution.

Spec

Application For

 Intel Socket 95W

 LGA1156/LGA1155/LGA1151/LGA1150/LGA775

Core i7/i5/i3
Core 2 Quad/Duo
Pentium/Pentium G
Celeron/Celeron G


 AMD Socket 100W

 FM2/FM1/AM3+/AM3/AM2+/AM2/940/939/754

APU A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class

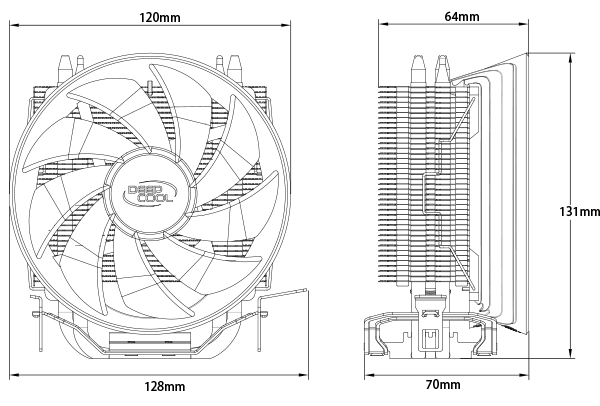

Overall Dimension		Fan Dimension		Net Weight		Bearing Type
128X70.5X131.5mm		∮120X25mm		361g		Hydro Bearing
Rated Voltage		Operating Voltage		Started Voltage		Rated Current
12VDC		10.8～13.2VDC		7VDC		0.13±10%A(MAX)
Power Input		Fan Speed		Max. Air Flow		Noise
1.56W		900±150-1600±10%RPM		54.25CFM		17.8～26.1dB(A)
