Features

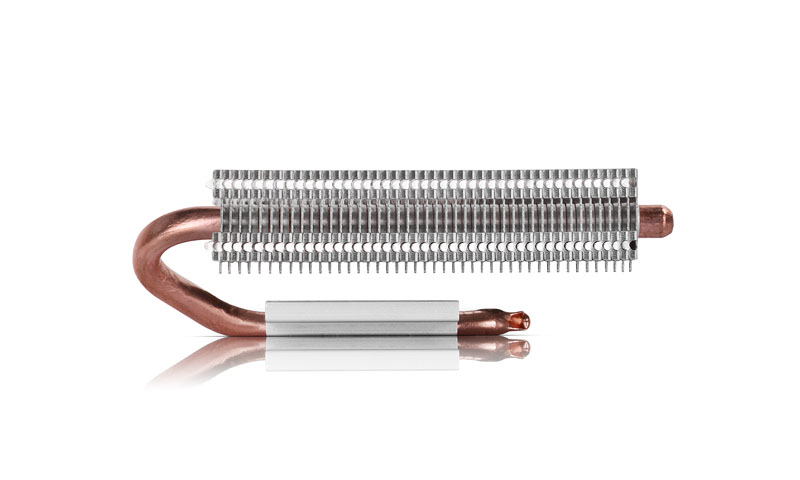

2 sintered powder heatpipes directly touch CPU surface and conduct heat from the processor quickly

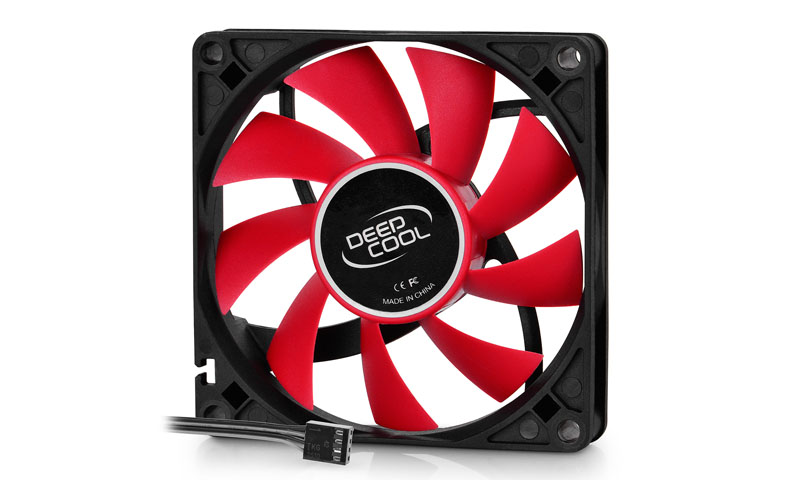

Φ80mm×15mm ultra-thin fan ltra-thin fan with PWM function, big airflow but with a lower noise
47mm ultra-thin design compatible with HTPC Case &ITX motherboard perfect

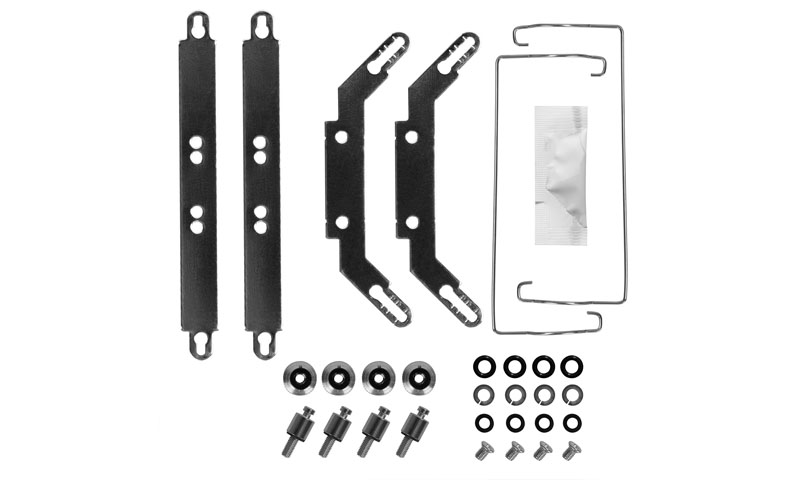

Equipped with multiple clips to support Intel LGA1156/1155/1150/775 and all AMD sockets
SpecApplication For
Intel TDP 95W
LGA1156/LGA1155/LGA1150/LGA775
Core i7/i5/i3
Core 2 Quad/Duo
Pentium/Pentium G
Celeron/Celeron G |
AMD TDP 100W
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
APU A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class |
Technical Spec
Overall Dimension |
90X97.5X47mm |
Heatsink Dimension |
90X97.5X29mm |
Fan Dimension |
80X80X15mm |
Net Weight |
223g |
Warranty |
1Year |
Rated Voltage |
12VDC |
Operating Voltage |
10.8~13.2VDC |
Starting Voltage |
7VDC |
Rated Current |
0.07±10%A(MAX) |
Power Input |
0.84W |
FAN Speed |
600±150~2500±10%RPM |
MAX.Air Flow |
23.06CFM |
Noise |
17.8~26.2dB(A) |
Bearing Type |
Hydro Bearing |
