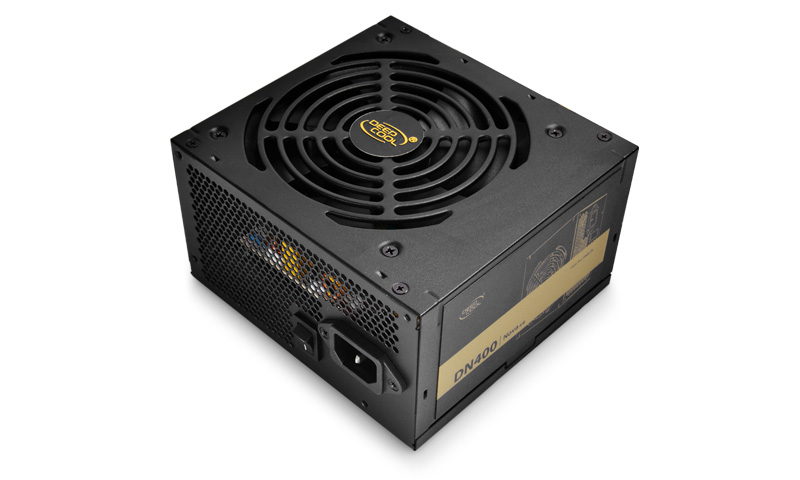

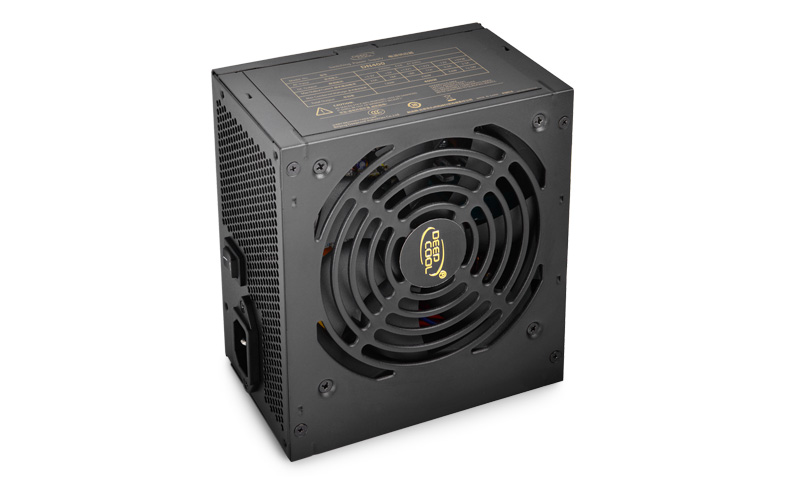

DeepCool PSU 400W 80+ APFC - DN400 New version

PN
GP-BZ-DN400
Catalog number
1850

  Manufacturer: DeepCool
PSU 400W 80+ APFC - DN400 New versionClick to enlarge
PSU 400W 80+ APFC - DN400 New versionPSU 400W 80+ APFC - DN400 New versionPSU 400W 80+ APFC - DN400 New versionPSU 400W 80+ APFC - DN400 New versionPSU 400W 80+ APFC - DN400 New versionPSU 400W 80+ APFC - DN400 New versionPSU 400W 80+ APFC - DN400 New versionPSU 400W 80+ APFC - DN400 New versionPSU 400W 80+ APFC - DN400 New versionPSU 400W 80+ APFC - DN400 New versionPSU 400W 80+ APFC - DN400 New versionPSU 400W 80+ APFC - DN400 New versionPSU 400W 80+ APFC - DN400 New version
€34.67


available: no

This product is not available
34.67 EUR

Description and specifications


Specifications:


Description

DN 400 is certified with 80 PLUS® 230V EU certified with 85% electrical efficiency enabling lower heat generation and lower operating cost. It is designed with less than 1w of consumption during off-mode, which meet the standard of ErP (Effective Radiated Power). Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage.

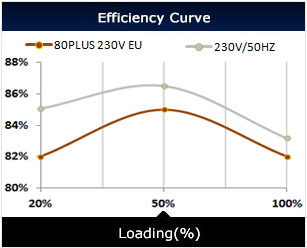

80 PLUS® 230V EU

80 PLUS® 230V EU certified provide high energy efficiency up to 85%. Click here to view the certification.

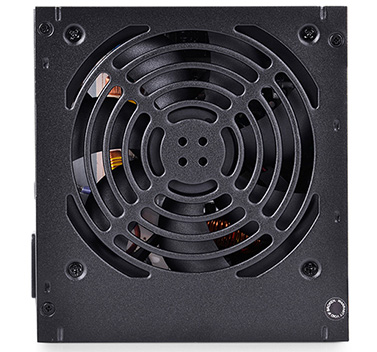

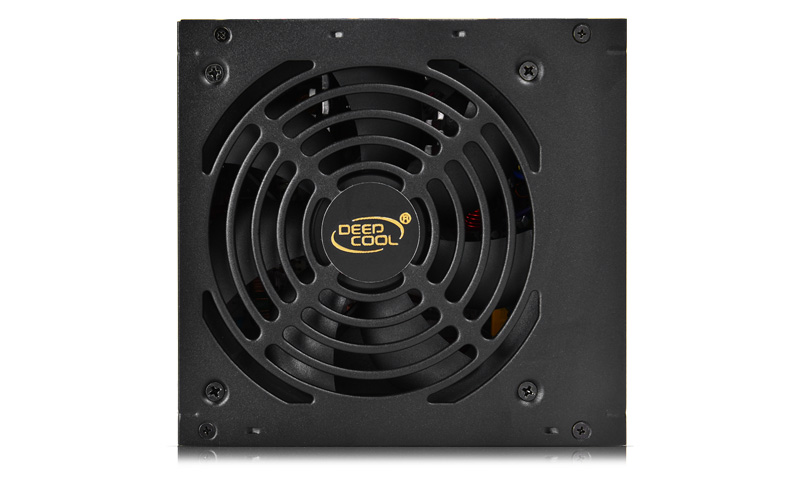

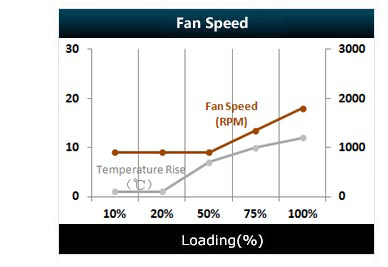

Silent and High Performance Fan

120mm silent fan with PWM function to provide incredible performance-noise ratio.

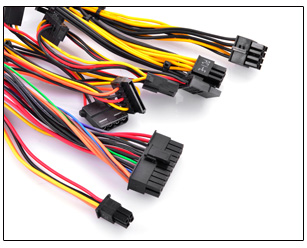

Longer Cable Design

The longer cable design supports cable management perfectly.



Features

Compliant Intel ATX12V v 2.31

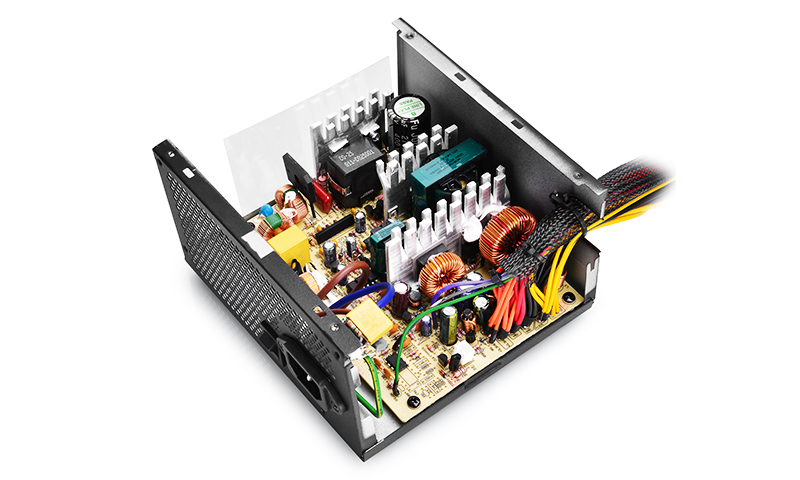

The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFC higher than 99%
80 PLUS® 230V EU certified — up to 85% efficiency
120mm silent fan with PWM function
The longer cable design supports cable management perfectly
Double-Layer EMI Filter protects from electromagnetic interference & restrains noise
Intelligentized eco-friendly chipset,  consume < 0.3W in its off-mode, compliant Erp standard
CircuitShield™ —OVP, UVP, SCP, OPP
Supports Multi-Way SLI / CrossFire + Multi-Core CPUs


Output


AC INPUT



VOLTAGE



CURRENT



FREQUENCY



200-240V



3.0A



47-63Hz



DC OUTPUT



+3.3V



+5V



+12V



-12V



+5VSB



CURRENT(Max)



17A



16A



30A



0.3A



2.5A



OUTPUT(Max)



110W



360W



3.6W



12.5W



TOTAL OUTPUT



400W

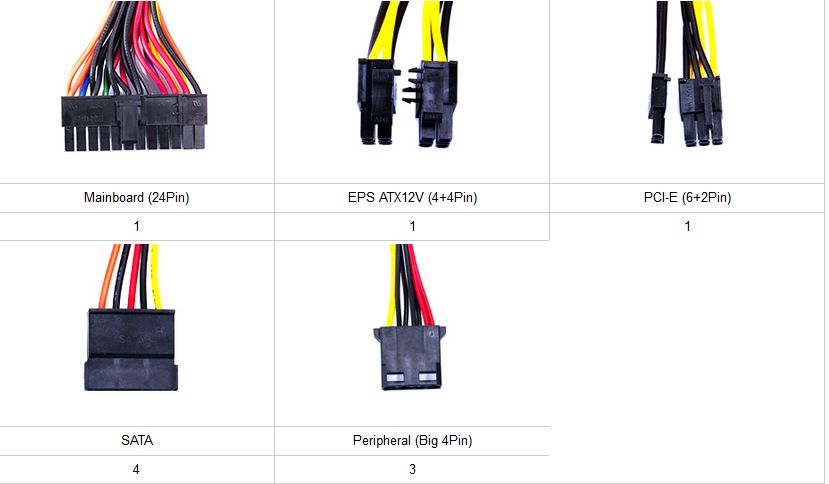

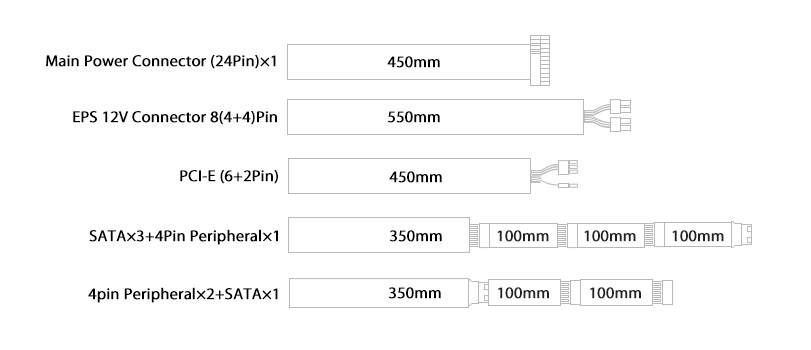

Cables


Mainboard (24Pin)   EPS ATX12V (4+4Pin)   PCI-E (6+2Pin)
1   1   1

SATA   Peripheral (Big 4Pin)
4   3



Spec

Technical Spec
Model   DN400
Type   ATX 12V V2.31
Dimension   150×140×86mm (W x L x H)
Output Capacity   400W
Input Voltage   230V
Input Current   4A
Input Frequency Range   47~63Hz
Fan Size   120mm
PFC   Active PFC (>0.99)
Power Good Signal   100-500ms
Hold Up Time   >16ms
Efficiency   85% Under Typical Load
Protection   OVP/UVP/SCP/OPP
Operation Temperature   0~40°C
Regulatory   CE/CB/EAC/CCC
MTBF   100,000 Hours
