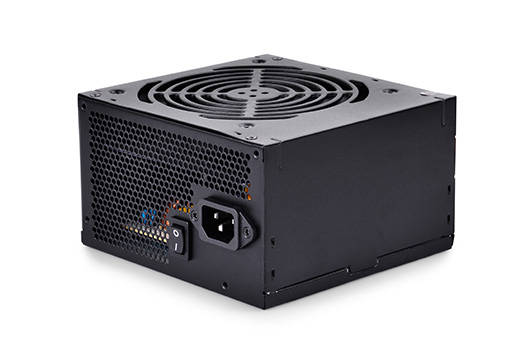

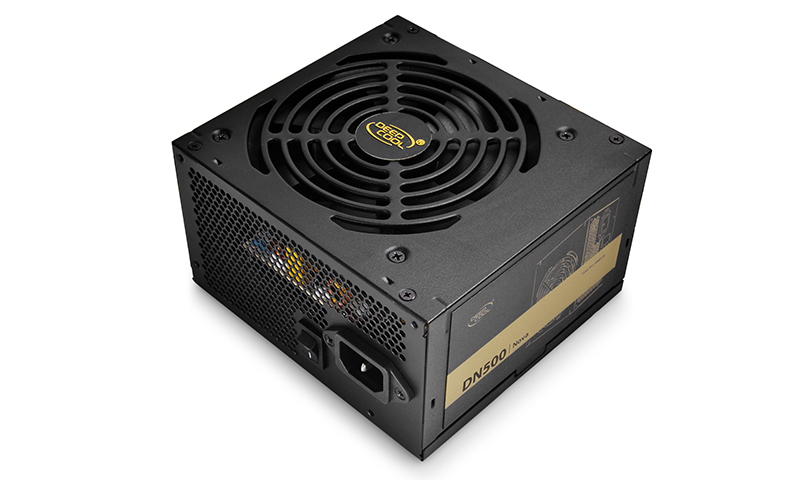

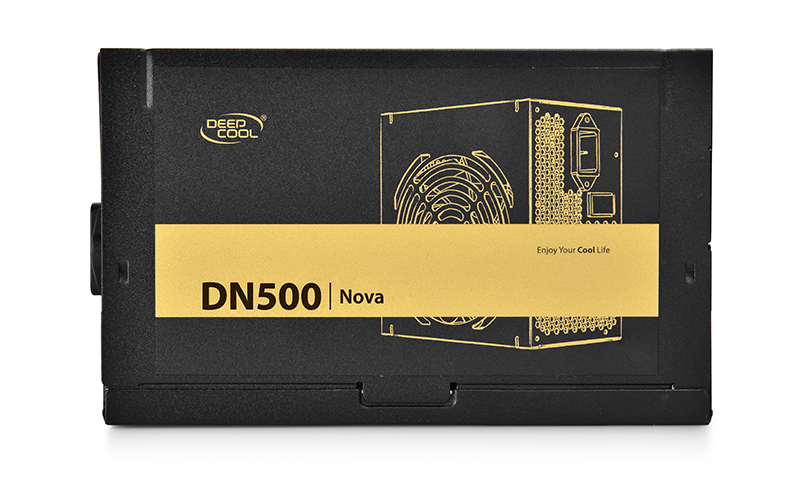

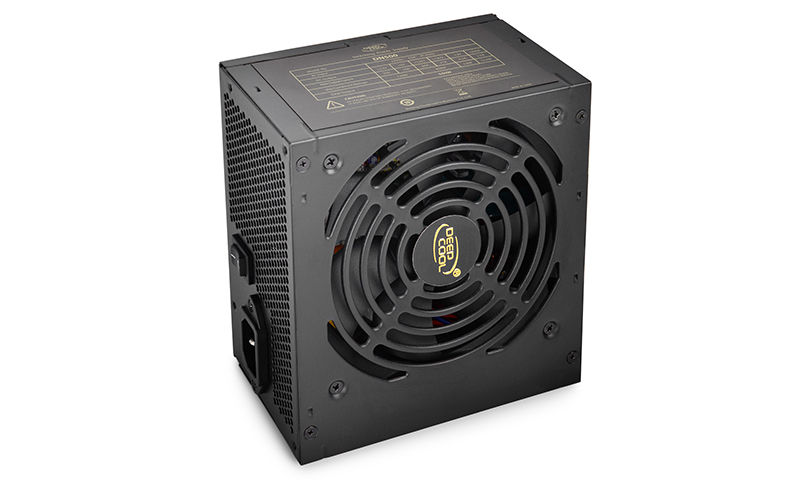

DeepCool PSU 500W 80+ APFC - DN500 New version
[GP-BZ-DN500]
№: ++1851
Manufacturer: DeepCool
Specifications:
Description
DN 500 is certified with 80 PLUS® 230V EU certified with 85% electrical efficiency enabling lower heat generation and lower operating cost. It is designed with less than 1w of consumption during off-mode, which meet the standard of ErP (Effective Radiated Power). Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage.
Output
Cables
Spec
DN 500 is certified with 80 PLUS® 230V EU certified with 85% electrical efficiency enabling lower heat generation and lower operating cost. It is designed with less than 1w of consumption during off-mode, which meet the standard of ErP (Effective Radiated Power). Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage.

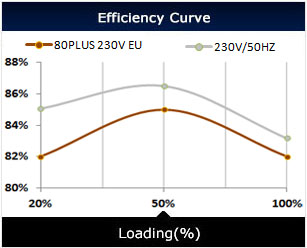

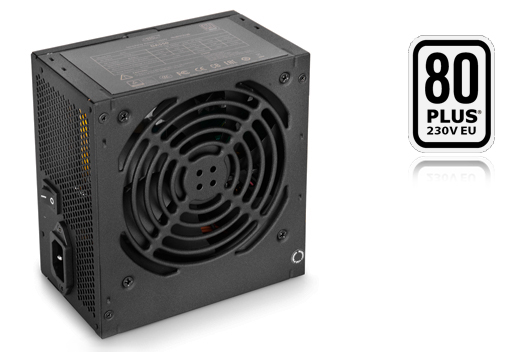

80 PLUS® 230V EU
80 PLUS® 230V EU certified provide high energy efficiency up to 85%. Click here to view the certification.

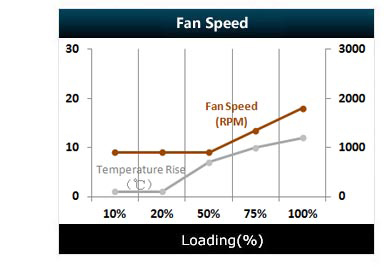

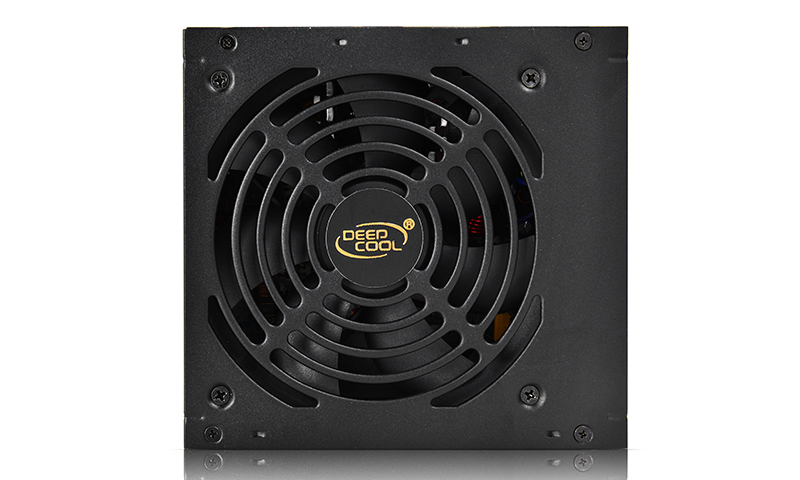

Silent and High Performance Fan

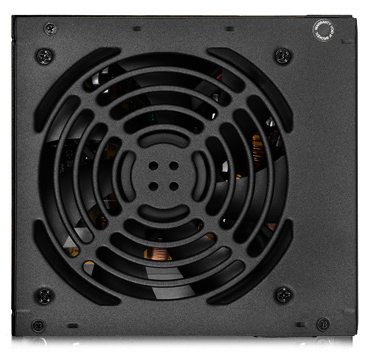

120mm silent fan with PWM function to provide incredible performance-noise ratio.

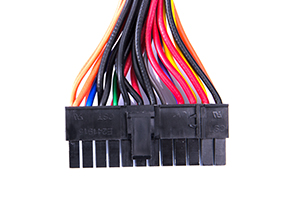

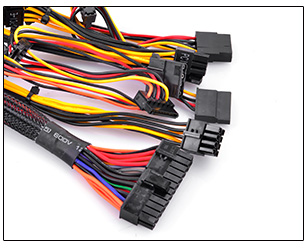

Longer Cable Design
The longer cable design supports cable management perfectly.
Compliant Intel ATX12V v 2.31

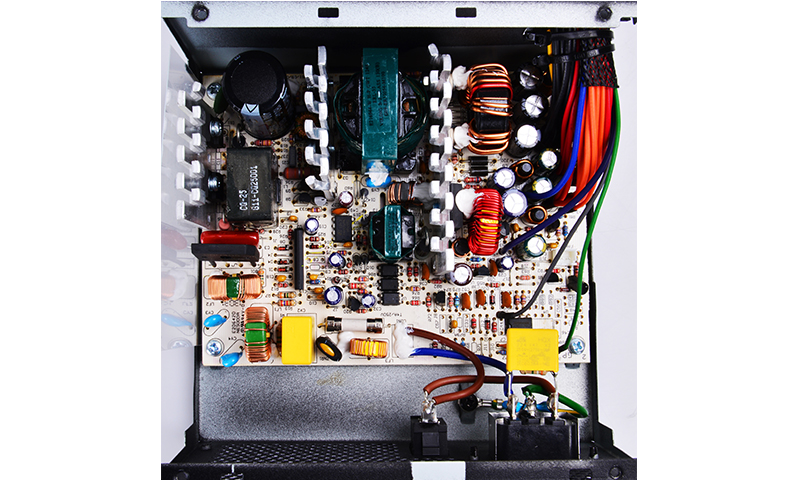

The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFC higher than 99%
80 PLUS® 230V EU certified — up to 85% efficiency
120mm silent fan with PWM function
The longer cable design supports cable management perfectly

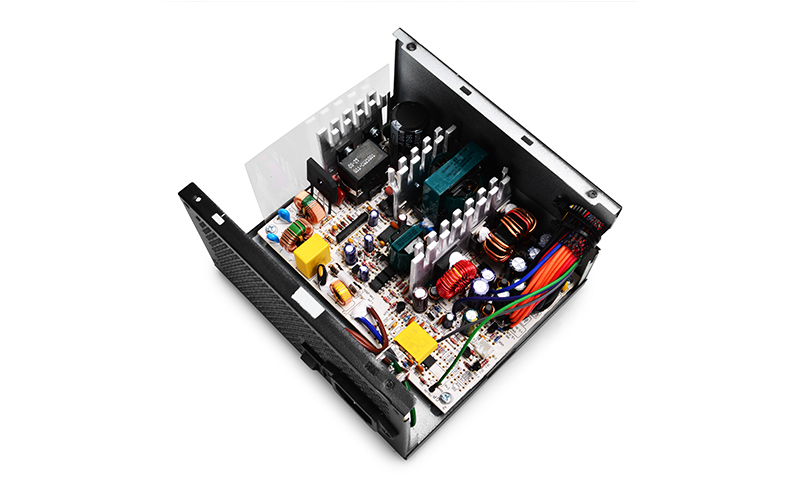

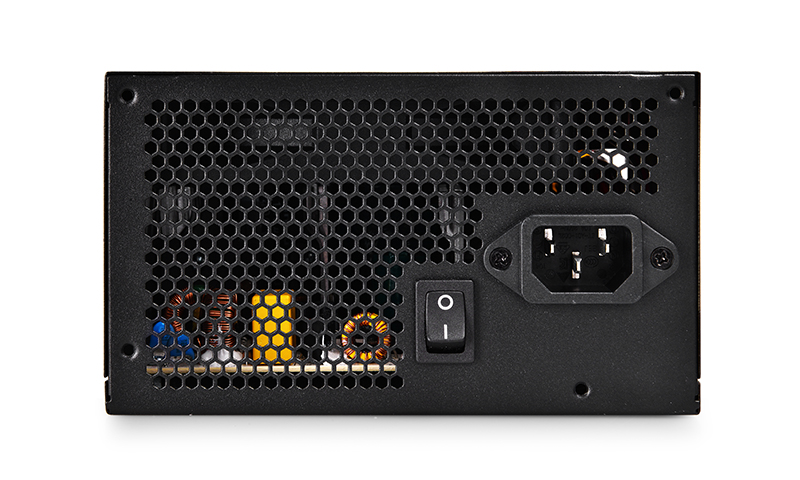

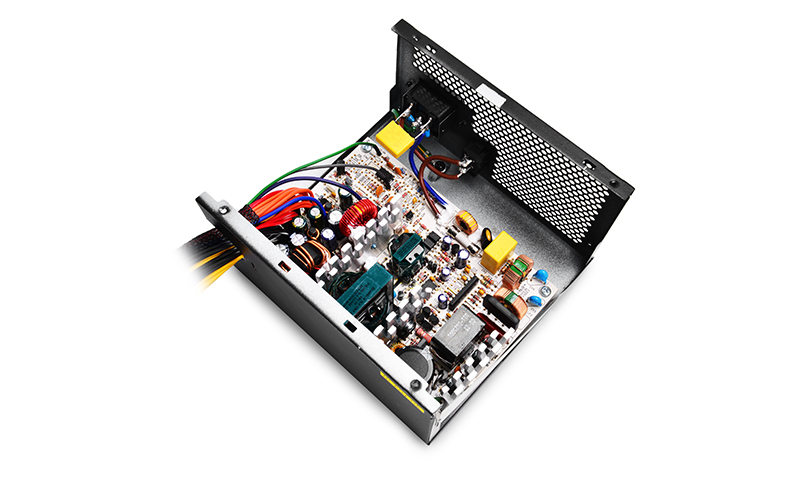

Double-Layer EMI Filter protects from electromagnetic interference & restrains noise
Intelligentized eco-friendly chipset, consume < 0.3W in its off-mode, compliant Erp standard
CircuitShield™ —OVP, UVP, SCP, OPP
Supports Multi-Way SLI / CrossFire + Multi-Core CPUs
The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFC higher than 99%
80 PLUS® 230V EU certified — up to 85% efficiency
120mm silent fan with PWM function
The longer cable design supports cable management perfectly
Double-Layer EMI Filter protects from electromagnetic interference & restrains noise
Intelligentized eco-friendly chipset, consume < 0.3W in its off-mode, compliant Erp standard
CircuitShield™ —OVP, UVP, SCP, OPP
Supports Multi-Way SLI / CrossFire + Multi-Core CPUs
Output
| AC INPUT | VOLTAGE | CURRENT | FREQUENCY | ||
| 200-240V | 4.0A | 47-63Hz | |||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB |
| CURRENT(Max) | 18A | 17A | 38A | 0.3A | 2.5A |
| OUTPUT(Max) | 110W | 456W | 3.6W | 12.5W | |
| TOTAL OUTPUT | 500W | ||||
| |
|||||
 |
 |
|

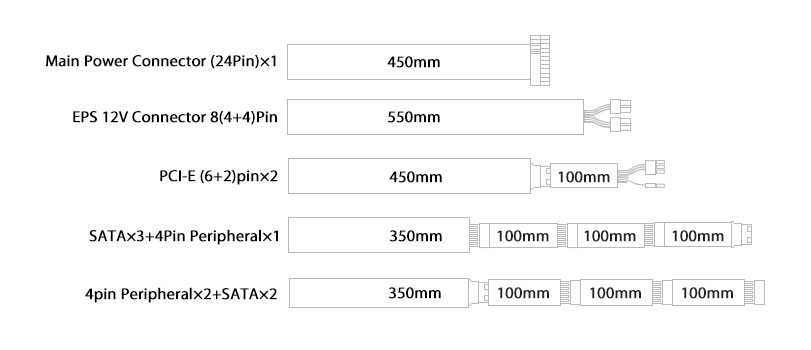

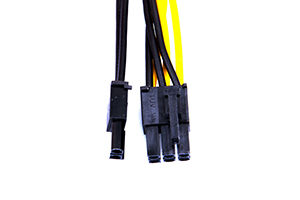

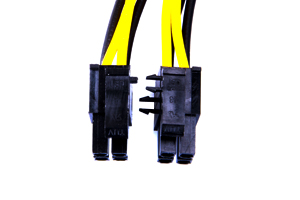

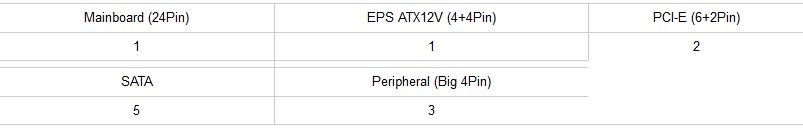

| Mainboard (24Pin) | EPS ATX12V (4+4Pin) | PCI-E (6+2Pin) |
| 1 | 1 | 2 |
 |
 |
|

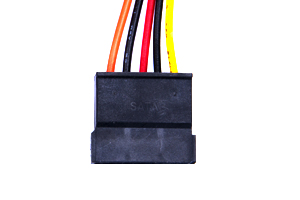

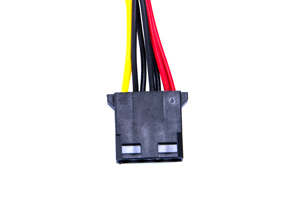

| SATA | Peripheral (Big 4Pin) | |
| 5 | 3 |
Spec
Technical Spec
| Model | DN500 |
| Type | ATX 12V V2.31 |
| Dimension | 150×140×86mm (W x L x H) |
| Output Capacity | 500W |
| Input Voltage | 230V |
| Input Current | 4A |
| Input Frequency Range | 47~63Hz |
| Fan Size | 120mm |
| PFC | Active PFC (>0.99) |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Efficiency | 85% Under Typical Load |
| Protection | OVP/UVP/SCP/OPP |
| Operation Temperature | 0~40°C |
| Regulatory | CE/CB/EAC/CCC |
| MTBF | 100,000 Hours |
