DeepCool PSU 500W Bronze - DA500
[DP-BZ-DA500]
№: ++1978 Manufacturer: DeepCool

€52 94

Notify me of updates to

available: no
This product is not available
52.94 EUR

Declaration of Conformity_DeepCool_DP-BZ-DA500.pdf

Specifications:

Description

DA 500 is certified with 80 plus bronze with up to 85% electrical rnefficiency enabling lower heat generation and lower operation cost. rnOutstanding and stable performance makes it one of the ideal choices forrn multi-purpose usage. Double layer EMI filters protect from magnetic rninterference and restrains noise while operating.

80 PLUS Bronze

80 PLUS Bronze certified - Up to 85% efficient.

Silent and High Performance Fan

120mm silent fan with PWM function to provide incredible performance-noise ratio

Double-Layer EMI Filter

Double-Layer EMI Filter protects from electromagnetic interference & restrains noise.

SLI/Cross-Fire Supported

SLI and Cross-Fire supported ensures your hungry GPUs run stable.

120mm silent fan with PWM function

120mm silent fan with PWM function provides optimal airflow to cool the components inside.

Features

Compliant Intel ATX12V v 2.31
The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFC
higher than 99%
80 PLUS® Bronze certified — up to 85% efficiency
Assembled copper + AL heatsink make cooling more efficient
120mm silent fan with PWM function
The longer cable design supports cable management perfectly
Double-Layer EMI Filter protects from electromagnetic interference & restrains noise
Intelligentized eco-friendly chipset, consume < 1W in its off-mode, compliant Erp standard
CircuitShield™ —OVP, UVP, SCP, OPP
Supports Multi-Way SLI / CrossFire + Multi-Core CPUs

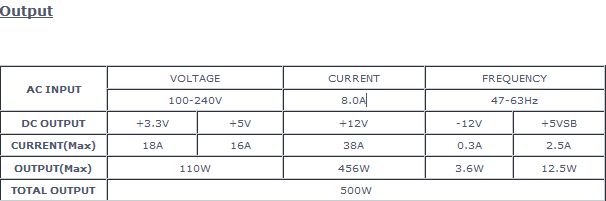

Output

AC INPUT	VOLTAGE		CURRENT	FREQUENCY
AC INPUT	100-240V		8.0A	47-63Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
CURRENT(Max)	18A	16A	38A	0.3A	2.5A
OUTPUT(Max)	110W		456W	3.6W	12.5W
TOTAL OUTPUT	500W

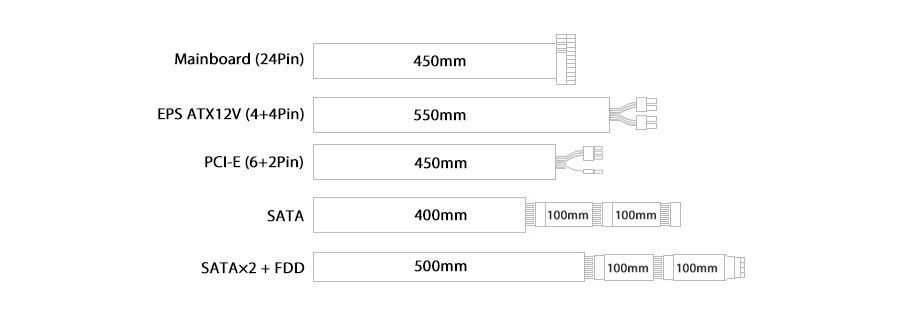

Cables

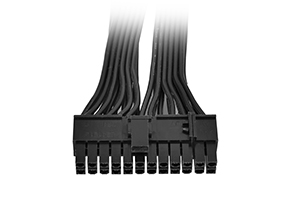

Mainboard (24Pin)	EPS ATX12V (4+4Pin)	PCI-E (6+2Pin)
1	1	2

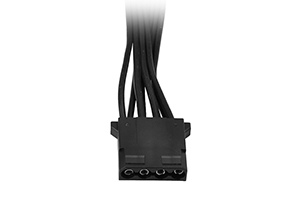

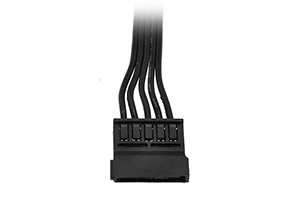

SATA	Peripheral (Big 4Pin)
5	3

Spec

Model	DA500
Type	ATX 12V V2.31
Certifications	80PLUS Bronze
Dimension	150×140×86mm (W x L x H)
Output Capacity	500W
Input Voltage	100~240V
Input Current	8A
Input Frequency Range	47~63Hz
Fan Size	120mm Blue LED
PFC	Active PFC (>0.99)
Power Good Signal	100-500ms
Hold Up Time	r >16ms
Efficiency	85% Under Typical Load
Protection	OCP / OVP / UVP / SCP / OPP / OTP
Operation Temperature	0~40°C
Regulatory	CE / FCC / CCC / CB / EAC / TUV
MTBF	100,000 Hours
