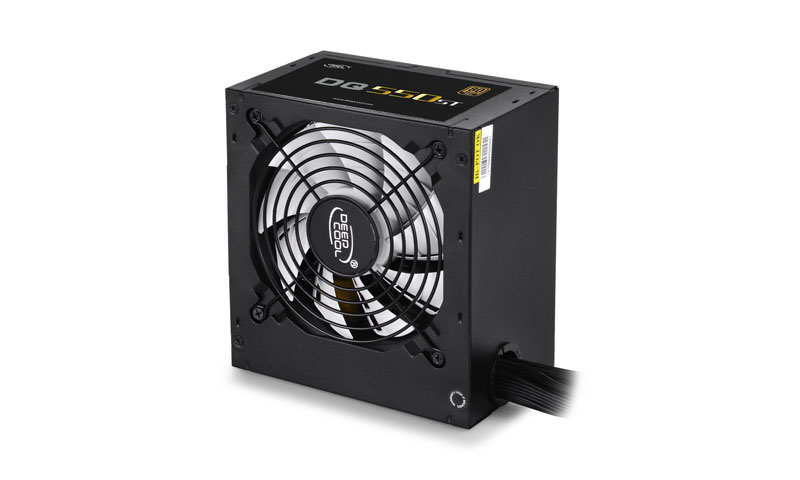

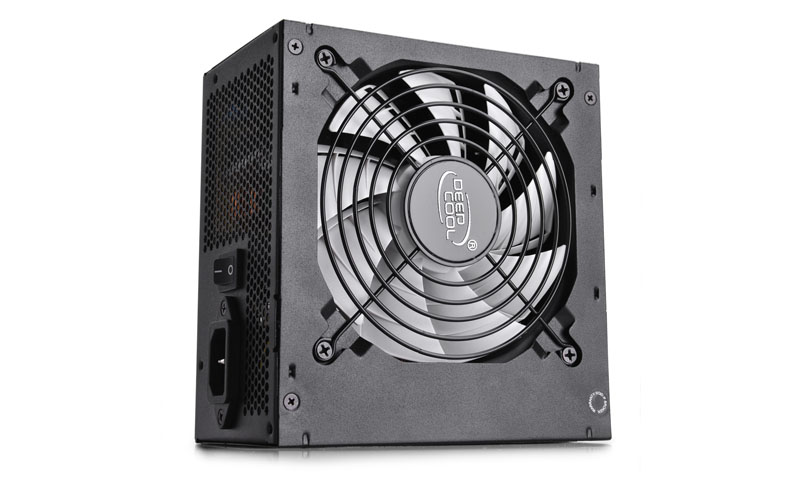

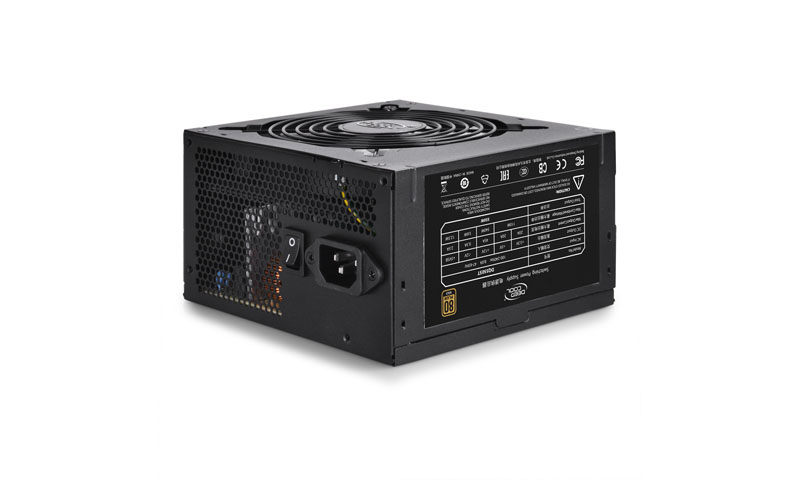

DeepCool PSU 550W Gold Silent - DQ550ST
[DP-GD-DQ550ST]

№: ++2160   Manufacturer: DeepCool

Model

Brand

Deepcool

Model

DQ550ST

Details

Type

ATX12V

Maximum Power

550W

Fans

1

PFC

Active

+12V Rails

Single

PCI-Express Connector

2 x 6+2-Pin

SATA Power Connector

3

SLI

SLI Ready

CrossFire

CrossFire Ready

Efficiency

Up to 87~90%

Energy-Efficient

80 PLUS GOLD Certified

Over Voltage Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

47 - 63 Hz

Input Current

8.0A

Output

+3.3V@20A, +5V@20A, +12V@45A, -12V@0.3A, +5VSB@2.5A

MTBF

>120,000 Hours

Dimensions

150×140×86mm (W x L x H)

Weight

1.92 kgs.

Features

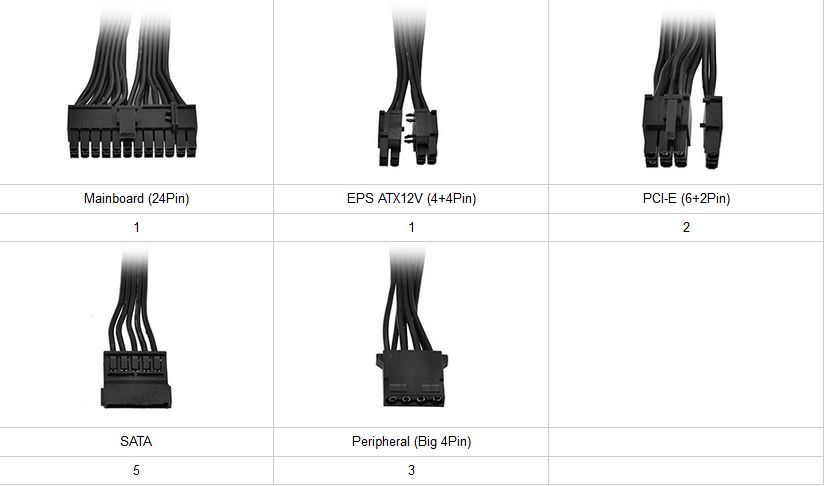

Connectors

Main Power Connector (24Pin)×1
EPS 12V Connector 8(4+4)Pin
PCI-E (6+2)pin×2
SATA×3+4pin Peripheral×1
4pin Peripheral×2+SATA×2

Features

Compliant Intel ATX12V v 2.31

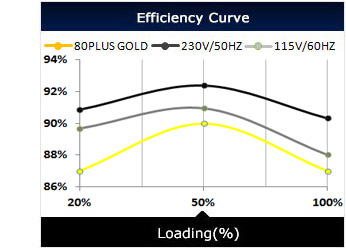

80 PLUS® GOLD certified - Up to 87~90% efficiency (20~100% loading)

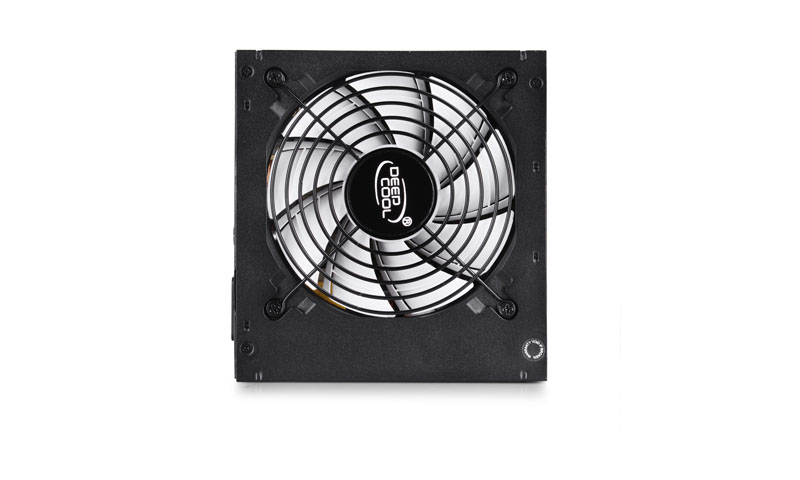

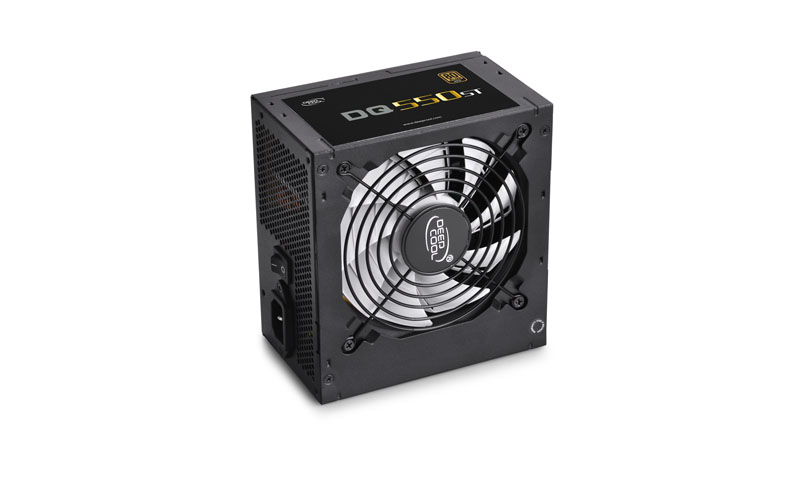

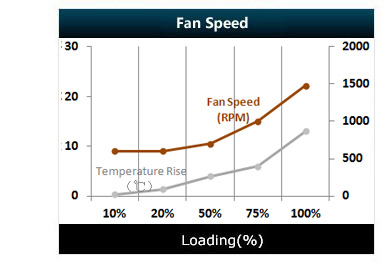

120mm FDB Bearing PWM fan with specially designed fan-blade, enjoys higher wind-pressure, super silent and excellent performance

The longer flat cable, exellent for cable management and increases the cooling capability of system

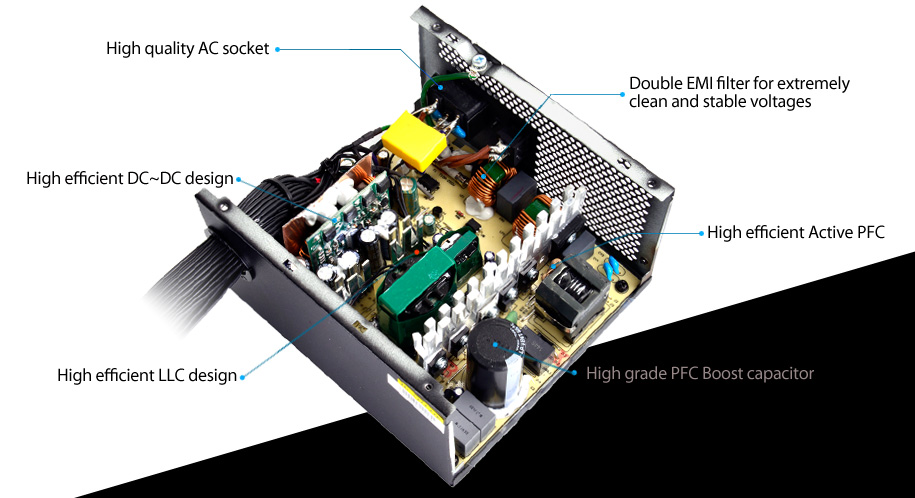

Double-Layer EMI Filter protects from electromagnetic interference & restrains noise

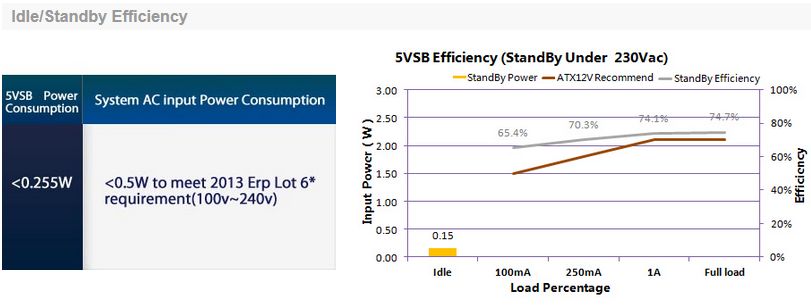

Intelligentized eco-friendly chipset, consume < 0.3W in its off-mode, compliant Erp standard
CircuitShield™ — OVP, UVP, SCP, OPP

Compliant Multi-Way SLI / CrossFire + Multi-Core CPUs

High reliability with an MTBF of at least 120,000 hours of use
