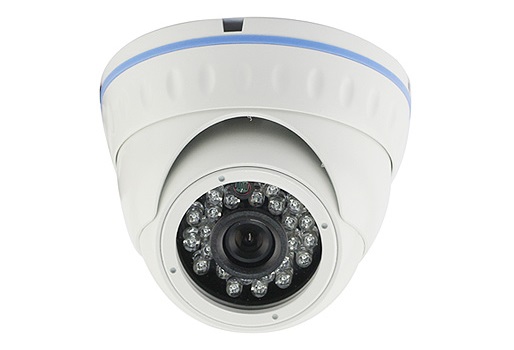

Longse AHD Metal Dome Camera - 1/2.9 Sony 2.4MP/1080P/3.6mm F2.0/IR 20M/White - LIRDNAD200S
[LIRDNAD200S]

№: ++2398   Manufacturer: Longse

Model NO.

LIRDNAD200S

Video Output Mode

AHD/CVBS

Camera

Image Sensor

IMX322

DSP

NVP2441H

Image Resolution

1080P/960H

Effective Pixels

2.4MP, 1920x1080

TV System

PAL/NTSC

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

S/N Ratio

  ≥50dB

Scanning System

Progressive Scan

Lens

Focus Length

Board Lens 3.6mm/F2.0

Focus Control

Fixed

Lens Type

Fixed

Pixels

2M Pixels

Auto Iris Support

NO

Night Vision

Infrared LED

￠5 (12µ) x 24PCS （14µ x 18PCS  Optional)

Infrared Distance

20M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

Auto (ICR) / Color / B&W

OSD Menu Language

YES

White Balance

Auto/Manual

Gain Control

Auto

Noise Reduction

3D NR

Picture Adjustment

YES

WDR

DWDR

OSD Support

YES

UTC

Optional

General

Housing

Metal

Bracket

YES, Anti-Cut Bracket

Dual Voltage

NO

IR Cut Filter

YES

Heater

NO

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 500mA

Dimension

￠94 x 69(H) mm

Weight

450g
