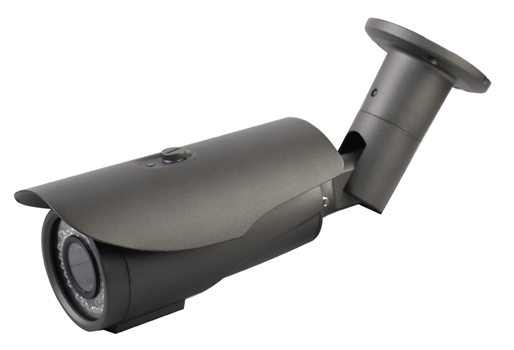

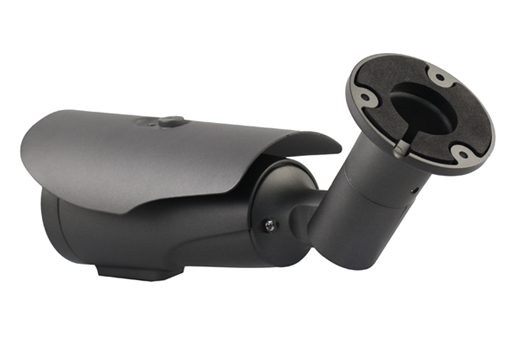

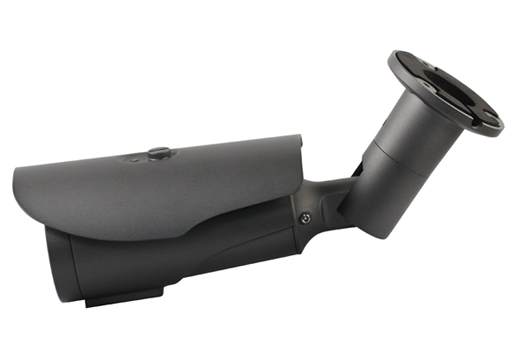

Longse AHD Outdoor Bullet Camera - 1.0MP/720p/2.8-12mm F2.0/IR 40m/Black - LIG40AD100V
[LIG40AD100V]

№: ++2180   Manufacturer: Longse

odel NO.

LIG40AD100V

Video Output Mode

AHD

(CVBS Optional)

Camera

Image Sensor

OV9712S

DSP

NVP2431H

Image Resolution

720P (960H Optional)

Effective Pixels

1.0MP, 1280x720

TV System

PAL/NTSC

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

Sync System

Internal

Usable Illumination

0.01Lux

S/N Ratio

≥50dB

Scanning System

Progressive Scan

Lens

Focus Length

2.8-12mm

Focus Control

Manual

Lens Type

Manual

Pixels

2M Pixels

Auto Iris Support

NO

Night Vision

Infrared LED

￠5X42PCS

Infrared Distance

40M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

Auto (ICR) / Color / B&W

OSD Menu Language

NO

White Balance

Auto

Gain Control

Auto

Noise Reduction

3D NR

Picture Adjustment

NO

WDR

DWDR

OSD Support

NO

General

Weatherproof Housing

YES, IP66

Anti-cut Bracket

YES, 3-Axis

Dual Voltage

NO

IR Cut Filter

YES

Heater

NO

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 700mA

Dimension

291(W)x90(H)x93(D)mm

Weight

1.6Kg
