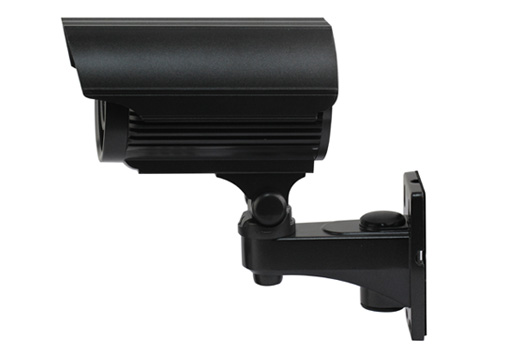

Longse Analog Outdoor Bullet Camera - 1/3 Sony Effio-E/700TVL/2.8-12mm F2.0/IR 40m/Black - LIA40ESHE

Model NO.

LIA40ESHE

Camera

CCD/CMOS

CCD

Image Sensor

ICX811AK

DSP

CXD4140AGG

Horizontal Resolution

700TV Lines

Effective Pixels

976(H)×582(V)

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec

Sync System

Internal

Usable Illumination

0.001Lux/F2.0

S/N Ratio

≥52dB

Gamma Correction

0.45

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Video Output

Composite Signal (1.0Vp-p, 75Ω)

Lens

Focus Length

2.8-12mm (6-22mm optional)

Focus Control

Manual

Lens Type

Manual

Pixels

2M Pixels

Auto Iris Support

NO

Night Vision

Infrared LED

￠5X42PCS

Infrared Distance

40M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

Color/ B&W

OSD Menu Language

CN, EN, FR, DE,

JP, ES, PT, RU

Defog

NO

Sense-up

NO

Smart-IR

YES

Wide Dynamic Range

DWDR

Backlight Compensation

YES

White Balance

AUTO

Gain Control

AUTO

Noise Reduction

2D NR

Privacy Masking

YES

Digital Zoom

NO

Picture Adjustment

YES

UTC Support

YES

General

Weatherproof Housing

YES, IP66

Anti-cut Bracket

YES, 2-Axis

Dual Voltage

YES

IR Cut Filter

YES

Heater

YES

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%,700mA

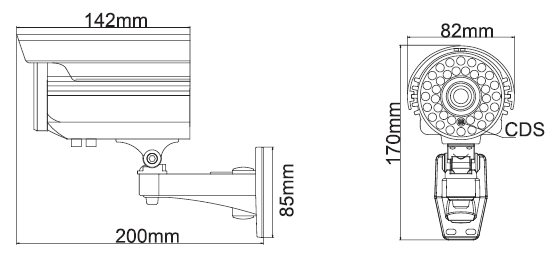

Dimension

200(W) x171(H) x83(D)mm

Weight

1.4Kg
