White - LBN24SM
[LBN24SM]
№: ++2410 Manufacturer: Longse

€17 47

available: no
This product is not available
17.48 EUR

Specifications:

Model NO.

LBN24SM

Camera
CCD/CMOS	CMOS
Image Sensor	PC1099N
DSP	/
Horizontal Resolution	800TV Lines
Effective Pixels	960(H)×480(V)
TV System	PAL/NTSC
Electronic Shutter Time	Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec
Sync System	Internal
Usable Illumination	0.1Lux/F2.0
S/N Ratio	≥50dB
Gamma Correction	0.45
Scanning System	PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec
Video Output	Composite Signal (1.0Vp-p, 75Ω)

Lens

Focus Length

Board Lens 3.6mm/F2.0

Focus Control

Fixed

Lens Type

Fixed

Pixels

2M Pixels

Auto Iris Support

Night Vision

Infrared LED

￠5 (12µ) x 24PCS ,(14µ x 18PCS Optional)

Infrared Distance

20M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

Color/ B&W

OSD Menu Language

Defog

Sense-up

Smart-IR

Wide Dynamic Range

Backlight Compensation

White Balance

AUTO

Gain Control

AUTO

Noise Reduction

Privacy Masking

Digital Zoom

Picture Adjustment

UTC Support

YES

General

Housing

Metal,IP66

Bracket

YES, Anti-Cut Bracket

Dual Voltage

IR Cut Filter

YES

Heater

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 500mA

Dimension

184(W) x 66(H) x 66(D)mm

Weight

700g

EURO version

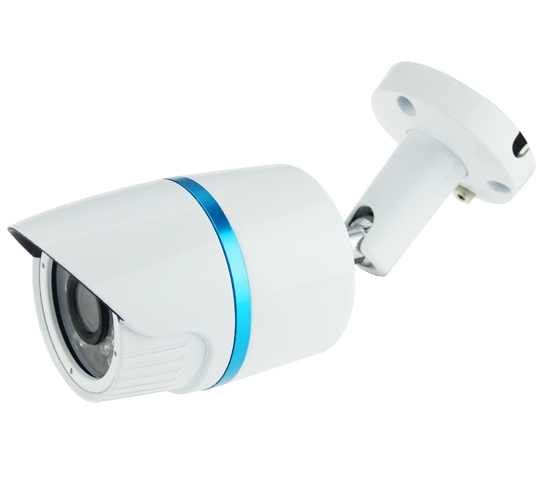

Longse Analog Outdoor Metal Bullet Camera - 800TVL/3.6mm F2.0/IR 20m/White - LBN24SM[LBN24SM] №: ++2410 Manufacturer: Longse

Specifications:

Longse Analog Outdoor Metal Bullet Camera - 800TVL/3.6mm F2.0/IR 20m/White - LBN24SM
[LBN24SM]
№: ++2410 Manufacturer: Longse
