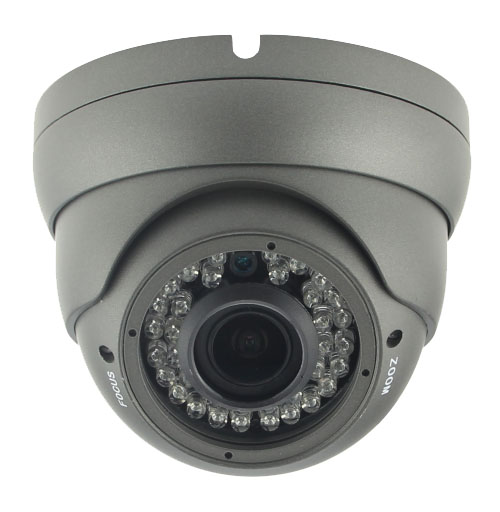

Model NO.
|
LIRDCA300-POE
|
|
|
Camera
|
|
|
Image Sensor
|
IMX124
|
|
|
Main processor
|
S2L
|
|
|
Resolution
|
3MP
|
|
|
Effective Pixels
|
2048(H)*1536(V)
|
|
|
TV System
|
PAL/NTSC
|
|
|
Electronic Shutter Time
|
Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec
|
|
|
S/N Ratio
|
≥52dB
|
|
|
Scanning System
|
Progressive
|
|
|
Video Output
|
Network
|
|
|
Lens
|
|
|
Focus Length
|
2.8-12mm
|
|
|
Focus Control
|
Manual
|
|
|
Lens Type
|
Manual
|
|
|
Pixels
|
5M Pixels
|
|
|
Night Vision
|
|
|
Infrared LED
|
￠5 (12µ) x 36PCS , 14µ x 24PCS (Optional)
|
|
|
Infrared Distance
|
30M
|
|
|
IR Status
|
Under 10 Lux By CDS
|
|
|
IR Power On
|
CDS Auto Control
|
|
|
Network
|
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
|
Protocol
|
IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS
|
|
|
ONVIF
|
Support ONVIF 2.4
|
|
|
P2P
|
YES, Support QR Code
|
|
|
POE
|
Optional, Support IEEE 802.3af
|
|
|
WIFI
|
N/A
|
|
|
Video Delay
|
0.3S (Within the Lan)
|
|
|
Main Stream
|
2048*1536 & 1920*1080@25fps@30fps
|
|
|
|
Sub Stream
|
720*480&640*360@25fps@30fps
|
|
|
IE Brower
|
IE6-11, Google Chrome(IE Tab), Firefox(IE Tab)
|
|
|
Smart Phone
|
iPhone, iPad, Android, Android Pad
|
|
|
Camera Features
|
|
|
Day/Night
|
Color/ B&W (IR-CUT )
|
|
|
Compression
|
H.264/JPEG/AVI
|
|
|
Image Config
|
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control)
|
|
|
Motion Detection
|
Support
|
|
|
Privacy Masking
|
3 Rectangular Zone
|
|
|
WDR
|
YES
|
|
|
Recording Mode
|
NVR/NAS/CMS/Web
|
|
|
Language
|
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi,
German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian
|
|
|
General
|
|
|
Housing
|
Metal
|
|
|
Anti-cut Bracket
|
NO
|
|
|
IR Cut Filter
|
YES
|
|
|
Operation Temperature
|
-10℃ ~ +50℃ RH95% Max
|
|
|
Storage Temperature
|
-20℃ ~ +60℃ RH95% Max
|
|
|
Power Source
|
POE DC12V±10%, 700mA
|
|
|
Dimension
|
￠131 x 93(H) mm
|
|
|
Weight
|
800g
|
|
