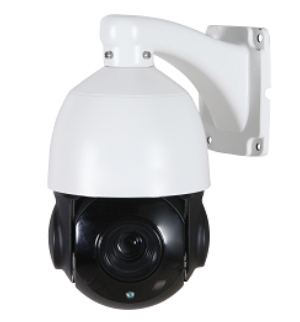

Longse IP HD Outdoor PTZ Camera 22X Zoom/ 1/2.9 Sony Low illumination 2.4MP/1080P/3.9mm-85.5mm/IR 60m/White - PT5A022S200
[PT5A022S200]

№: ++2409   Manufacturer: Longse

Model

PT5A022S200

Camera

Image Sensor

1/2.9" SONY Low Illumination 2.4MP

Horizontal Resolution

1080P

S/N Ratio

>50db

PTZ

Horizontal Rotation Speed

0.6°-200°/S

Horizontal Rotation Range

360°

Tilt Rotation Speed

3.5°-30°/S

Tilt Rotation Range

90°

Auto Flip

Tilt 180°

Ratio Speed

Support

360° Scan

Support

Park Function

Support

360° Scan Speed

01-64speed setting available

A-B Scan

User programmable

Preset Points

220

Go to Preset Speed

200°/s

Guard Tours

3 groups

Guard Points

Max.16 points, dwell time user selectable

Lens

Focus Length

3.9mm-85.5mm

Focus Control

22X Optical Zoom

Night Vision

Infrared LED

￠42x6PCS

IR Range

60m

Network

Network protocol

TCP/IP , TTP ,  NTP , IGMP , DHCP , UDP , SMTP , RTP , RTSP , ARP ,

DDNS , DNS , PPPoE , P2P

ONVIF

Support ONVIF 2.4

Simultaneous view number

Max 6CH

Triple stream

Adopt H.264High profile/M-JPEG dual encoding， triple stream output(2CH H.264+1CHMJPEG)

Network interface

Built-in RJ45 network interface,support 10M/100M IP DATA

General

Housing

Metal and Plastic,IP66

Operating Temperature

 Indoor: 0°~ +40°   Outdoor:  -20°~ +60°

Operating Humidity

≤90% Non Condensing

Heater & Blower

Auto temperature control

DWDR

Support

Auto Control IR LED

PWM

Power

DC12V/3A

Power Consumption

≤20W

Lightning Protection

Transient voltage 3000V

Dimension

29.5x28x17(cm)

Weight

2.5Kgs
