Noctua CPU Cooler NH-D14 775/1155/1366/AMD

PN: NH-D14
Catalog number: 1072

Manufacturer: Noctua

Click to enlarge

€74.14

available: no

This product is not available
74.14 EUR

Description and specifications

Specifications:

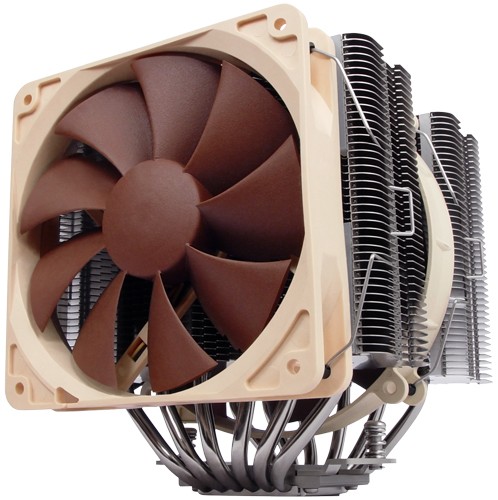

Combining a massive six heatpipe dual radiator design with an exquisite NF-P14/NF-P12 dual fan configuration, the NH-D14 is built for ultimate quiet cooling performance. Topped off with a tube of Noctua’s award-winning NT-H1 thermal compound as well as the new SecuFirm2™ multi-socket mounting system, the NH-D14 is an elite choice for the highest demands in premium quality quiet cooling.

Specifications

Socket compatibility		Intel LGA1366, LGA1156, LGA1155, LGA775 & AMD AM2, AM2+, AM3 (backplate required)



Height (without fan)		160 mm



Width (without fan)		140 mm



Depth (without fan)		130 mm



Height (with fan)		160 mm



Width (with fan)		140 mm



Depth (with fan)		158 mm



Weight (without fan)		900 g



Weight (with fan)		1070/1240* g



Material		Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating



Fan compatibility		140x140x25 & 120x120x25mm

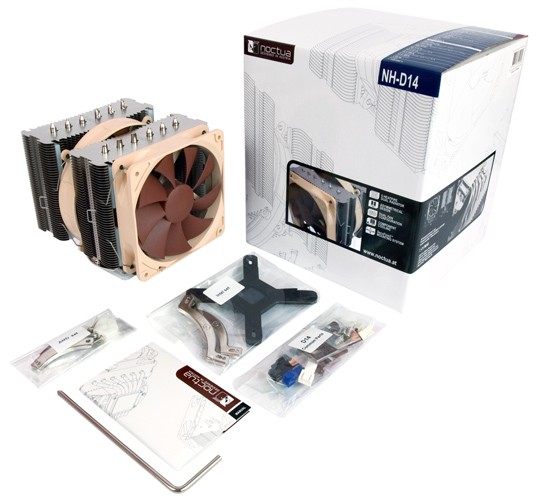

Scope of Delivery		1x NF-P14 premium fan 1x NF-P12 premium fan 2x Ultra-Low-Noise Adaptor (U.L.N.A.) Y-Split Cable 4x Vibration-Compensators (for using NF-P12 as case fan) 4x Fan screws (for using NF-P12 as case fan) NT-H1 high-grade thermal compound SecuFirm2™ Mounting Kits Noctua Metal Case-Badge



Warranty		6 Years



Fan specifications



Model		Noctua NF-P14 & Noctua NF-P12



Bearing		SSO-Bearing



Rotational Speed (+/- 10%)		1200 / 1300 RPM



Rotational Speed with U.L.N.A. (+/- 10%)		900 / 900 RPM



Airflow		110,3 / 92,3 m³/h



Airflow with U.L.N.A.		83,7 / 63,4 m³/h



Acoustical Noise		19,6 / 19,8 dB(A)



Acoustical Noise with U.L.N.A.		13,2 / 12,6 dB(A)



Input Power		1,2 / 1,08 W



Voltage Range		12 V



MTBF		> 150.000 h

* with 2 fans

Details

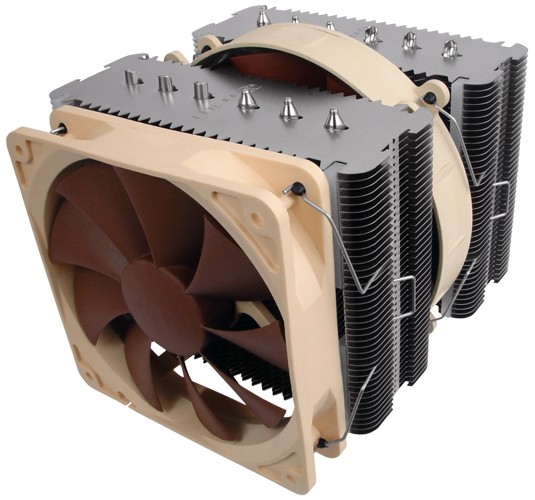

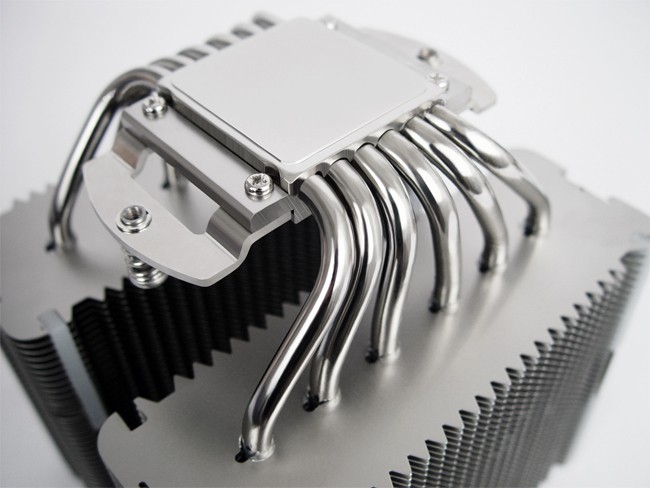

	6 heatpipe dual radiator design Providing more surface area, better heat-distribution and superior airflow efficiency than conventional tower style heatsinks, the NH-D14’s six heatpipe dual radiator design was developed to provide ultimate quiet cooling performance in dual fan mode.
	Dual NF-P14/NF-P12 fan setup The NH-D14 sports a premium quality dual fan setup consisting of Noctua’s award-winning NF-P12 (120mm) and NF-P14 (140mm) fans, both of which feature Vortex-Control Notches, SCD technology and SSO-Bearings in order to achieve a perfect balance of performance and quietness.
	Asymmetrical design for high compatibility An asymmetrical design that gives more clearance towards the RAM slots ensures good compatibility despite of the cooler’s size. The NF-P12 fan can be moved upwards or left off in order to further improve compatibility.
	Excellent component cooling Hanging out at the bottom of the fin-stacks, the NF-P14 fan doesn’t only contribute to the NH-D14’s superb CPU cooling capabilities but also provides massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.
	SecuFirm2™ multi-socket mounting system Noctua’s enthusiast grade SecuFirm2™ multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA1155, LGA775, AM2, AM2+ and AM3) and meets the highest demands in safety, contact pressure and ease-of-use.
	NT-H1 thermal compound Noctua's much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
