Noctua Fan 140mm NF-P14-FLX
[NF-P14-FLX]
№: ++1076   Manufacturer: Noctua

€21 46

available: no
This product is not available
21.46 EUR
share in facebook      share in facebook


Specifications:

Following in the footsteps of the successful NF-P12, the NF-P14 is a highly optimised, premium quality 140mm fan with Vortex-Control Notches for superb quietness and outstanding aerodynamic efficiency. Metal reinforcements, SCD2 technology and Noctua’s premium grade SSO-Bearing guarantee exceptional running smoothness and excellent long-term stability. Using the same hole-spacing as common 120mm fans and achieving a superior airflow/noise ratio, the NF-P14 is ideal for upgrading 120mm CPU or case fans.



Specifications




Size      140x140x25 mm



Bearing      SSO-Bearing



Blade Geometry      NF-P14 Blade Design with VCN



Rotational Speed (+/- 10%)      1200 RPM



Rotational Speed with L.N.A. (+/- 10%)      900 RPM



Rotational Speed with U.L.N.A. (+/- 10%)      750 RPM



Airflow      110,3 m³/h



Airflow with L.N.A.      83,7 m³/h



Airflow with U.L.N.A.      71,2 m³/h



Acoustical Noise      19,6 dB(A)



Acoustical Noise with L.N.A.      13,2 dB(A)



Acoustical Noise with U.L.N.A.      10,1 dB(A)



Static Pressure      1,29 mm H2O



Static Pressure with L.N.A.      0,77 mm H2O



Static Pressure with U.L.N.A.      0,53 mm H2O



Input Power      1,2 W



Input Current      0,1 A



Voltage Range      12 V



MTBF      > 150.000 h

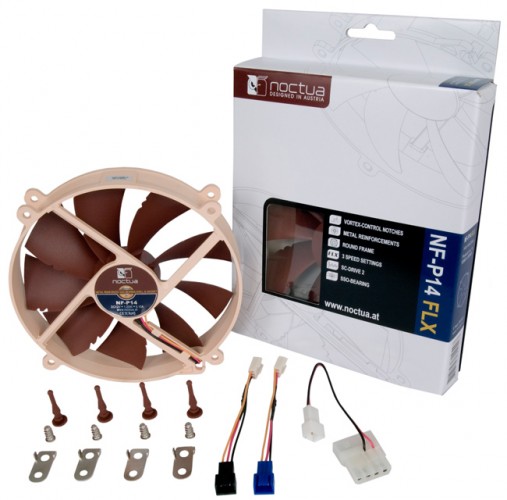

Scope of Delivery
  • Ultra-Low-Noise Adaptor (U.L.N.A.)
  • Low-Noise Adaptor (L.N.A.)
  • Adaptors for 140mm mounting
  • 4 Vibration Compensators
  • 3:4-Pin Adaptor
  • 4 Fan Screws




Warranty      6 years





Details

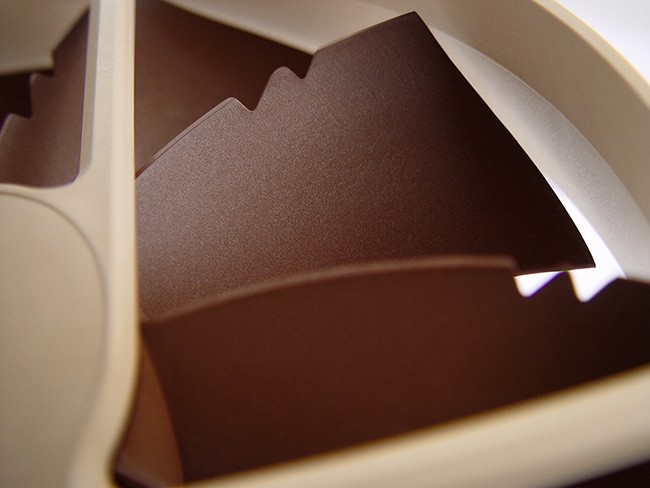

VCN    140mm Impeller with Vortex Control Notches
Thanks to its psycho-acoustically optimised nine blade impeller with staggered Vortex-Control Notches, the NF-P14 combines superb quietness with exceptional airflow and static pressure. button


MR    Metal Reinforcements
Both the impeller hub and the bearing shell of the NF-P14 are metal reinforced in order to achieve ultimate manufacturing precision, high durability and vibration-free running. button


Round Frame    Round frame with 120mm mounting holes
Using a round frame with the same hole-spacing as common 120mm fans and producing more airflow due to its larger diameter, the NF-P14 is a perfect upgrade for 120mm CPU or case fans. Thanks to the supplied adaptors, the NF-P14 also fits common 140mm mounting holes. button


flx    3 speed settings for full flexibility
Providing 1200, 900 and 750 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-P14 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.


SCD    Smooth Commutation Drive 2
DThe latest version of Noctua’s advanced SCD drive system ensures superb running smoothness by eliminating torque variations and switching noises. button


SSO    SSO-Bearing
Noctua’s time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability. button
