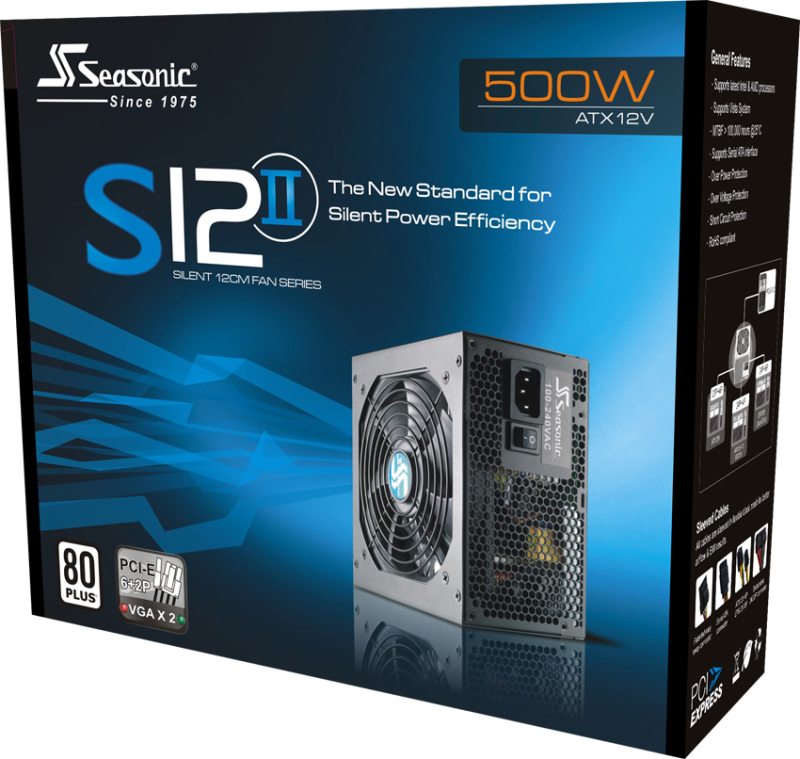

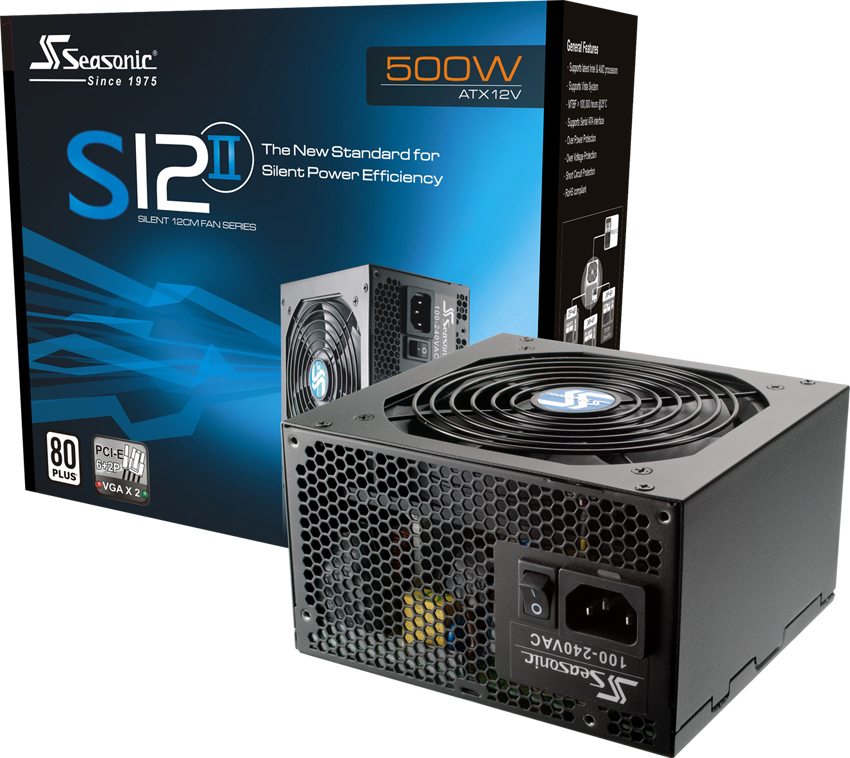

Seasonic S12 II - 500 W

Manufacturer: Seasonic

Click to enlarge

€103.69

available: no

This product is not available
103.69 EUR

Specifications:

Product Information

500W ATX power supply
Multiple +12-V Outputs: Enhanced +12V current capability broadens utilization possibilities
Super high efficiency (up to 85%): Optimal solution for lower energgy consumption, noise & heat
Active power factor correction (99% PFC): Reduces line loss & power distortion
Double forward converter circuit design: Advanced topology for highest efficiency
Conductive polymer aluminium solid capacitors: Advanced ultra-low resistance, high temperature capacitors on the critical 12V rail
12cm ball bearing cooling fan: Increases airflow & lifetime and reduces rotation speed and noise
Smart & silent fan control (S2FC): Smart thermal control to balance noise & cooling
Soft-mounting rubber cushions: Reduces fan rotation & vibration noise
Ultra ventilation (honeycomb structure) Minimized airflow resistance for maximum cooling
All in one DC cabling design: Supports PC, IPC, workstation, server & dual CPU systems
Universal video card support: Supports new PCI-E video card technologies
Universal AC input (full range): Plug & run safely anywhere in the world
Patented Easy Swap connector: Unplug the connectors easily & quickly
3 year warranty: Our commitments to superior quality

Product Specifications

Technical Specification
Power	500 Watt
Efficiency	> 85%
PFC	Active
Power Lines	+3.3V: 24A +5V: 24A +12V1: 17A +12V2: 17A -12V: 0.8A +5Vsb: 2.5A
Cable / Connetors	1x 20/24pin Mainboard 1x 4pin ATX 12V CPU 1x 8pin EPS 12V 9x 4pin Molex 6x SATA 2x 4pin Floppy 1x 6pin PCIe 1x 6+2pin PCIe
