Introduction

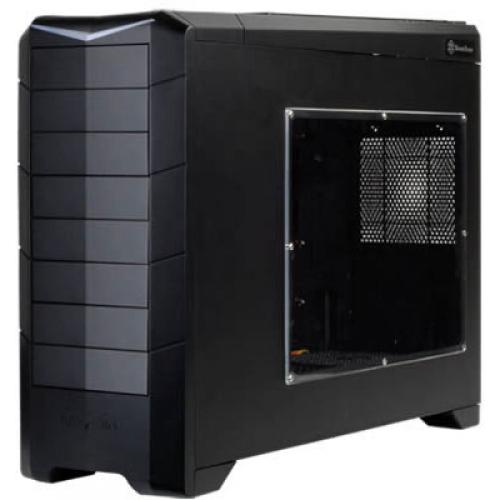

After releasing the ground-breaking RAVEN RV01, the first retail chassis to utilize the 90 degree motherboard mounting layout, SilverStone’s RAVEN team quickly went back to the drawing board to create another chassis with even more mass appeal. The resulting RAVEN RV02 is smaller, lighter, and higher performing. Compatibility with Extended-ATX motherboard and server level storage capacity were sacrificed in favor of a more compact dimension and consumer oriented design. Three custom designed 180mm fans and one 120mm fan are included in the RV02 to provide noise to cooling performance ratio that breaks existing benchmark for enthusiast chassis. Additional features such as the inclusion of the 8th expansion slot (for triple or quad graphics cards), all black painted interior, custom designed hard drive suspension cage, and radiator mounts completes a package that will not only appeal to hardware enthusiasts but also to anyone looking to assemble a system that makes a statement with plenty of cooling and very little noise.
Revolutionary 90 degree motherboard mounting from RAVEN RV01

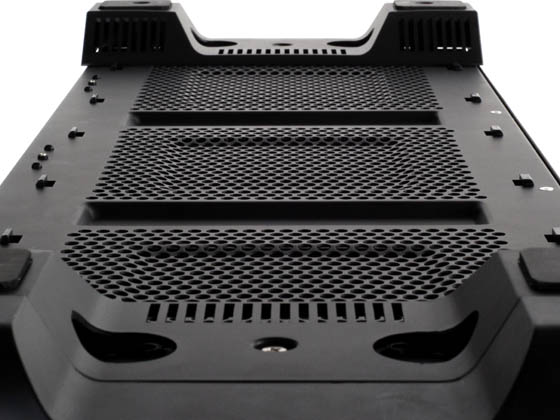

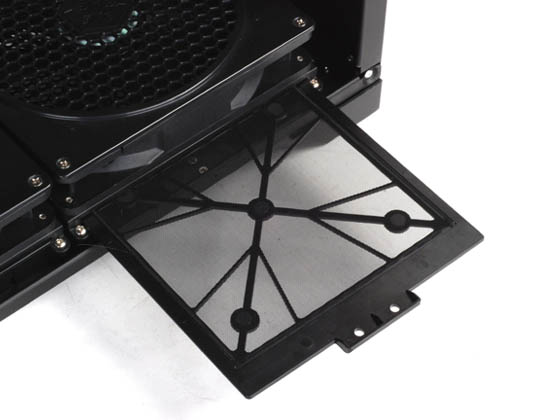

Three 180mm fans for unprecedented positive pressure and stack effect cooling
Supports liquid cooling radiator mounting

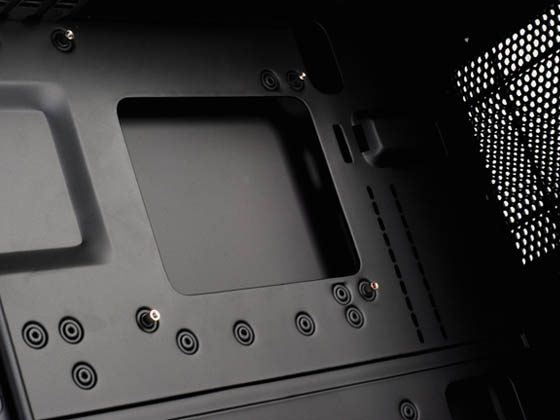

Motherboard back plate opening behind CPU area for quick cooler assembly
Supports 11” wide ATX motherboard
Supports eight expansion slots
Updated hard drive suspension system to prevent drive noise
Specifications
| Model No. | ||
| SST-RV02B-W (black + window) | ||
| -- | ||
| -- | ||
| Material | reinforced plastic outer shell, 0.8mm Steel body. | |
| Color | Matte black | |
| Motherboard | SSI CEB, ATX (maximum 12” x 11”) , Micro ATX | |
| Multimedia | -- | |

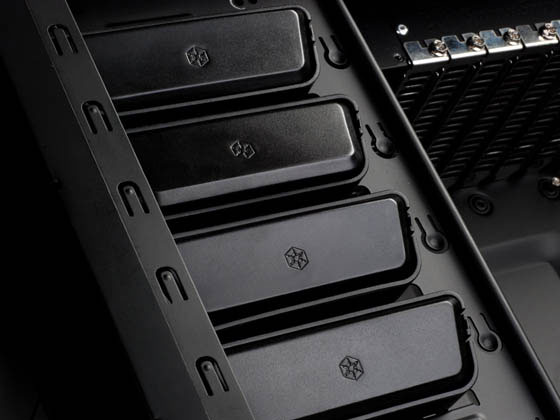

| Drive Bay | External | 5.25" x 5 or 8 (without hard drive) |
| -- | ||
| Internal | 3.5" x 3 (w/ suspension system), 2.5” x 1 for SSD | |
| Cooling System | Front | -- |
| Rear | -- | |
| Side | -- | |

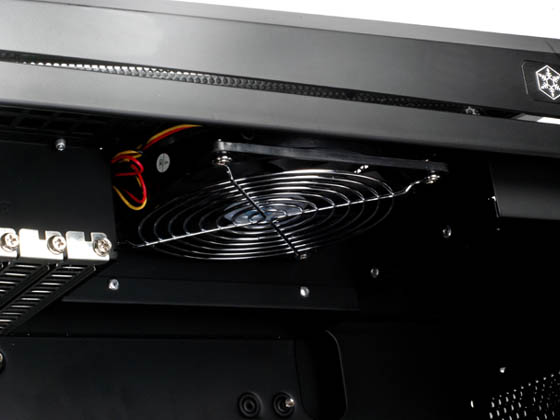

| Top | 1 x 120mm exhaust fan, 950rpm, 18dBA | |

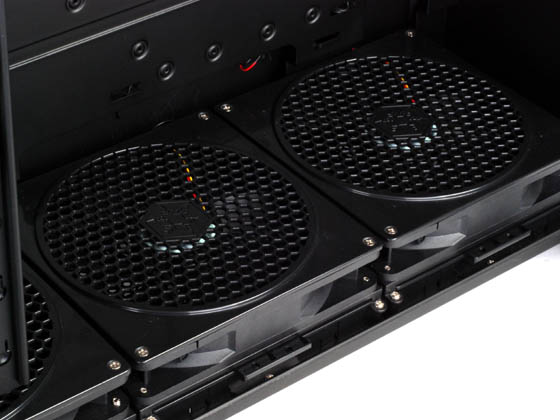

| Bottom | 3 x 180mm intake fan 700/1000rpm, 18/27dBA | |
| Internal | -- | |
| Expansion Slot | 8 | |

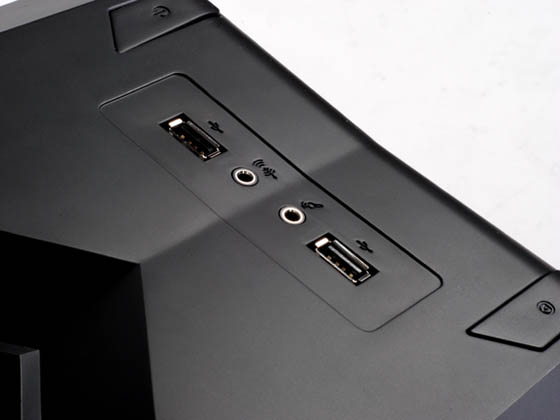

| Front I/O Port | USB2.0 x 2 audio x 1 MIC x 1 | |
| Power Supply | 1 x optional standard PS2 (ATX) | |
| Expansion Card | Compatible with expansion card up to 12 inches | |
| Limitation of CPU cooler | 169mm | |
| Limitation of PSU | Unlimited | |
| Net Weight | 12.5kg | |
| Dimension | 212mm (W) x 503mm (H) x 643mm (D) | |
| Extra | -- | |
